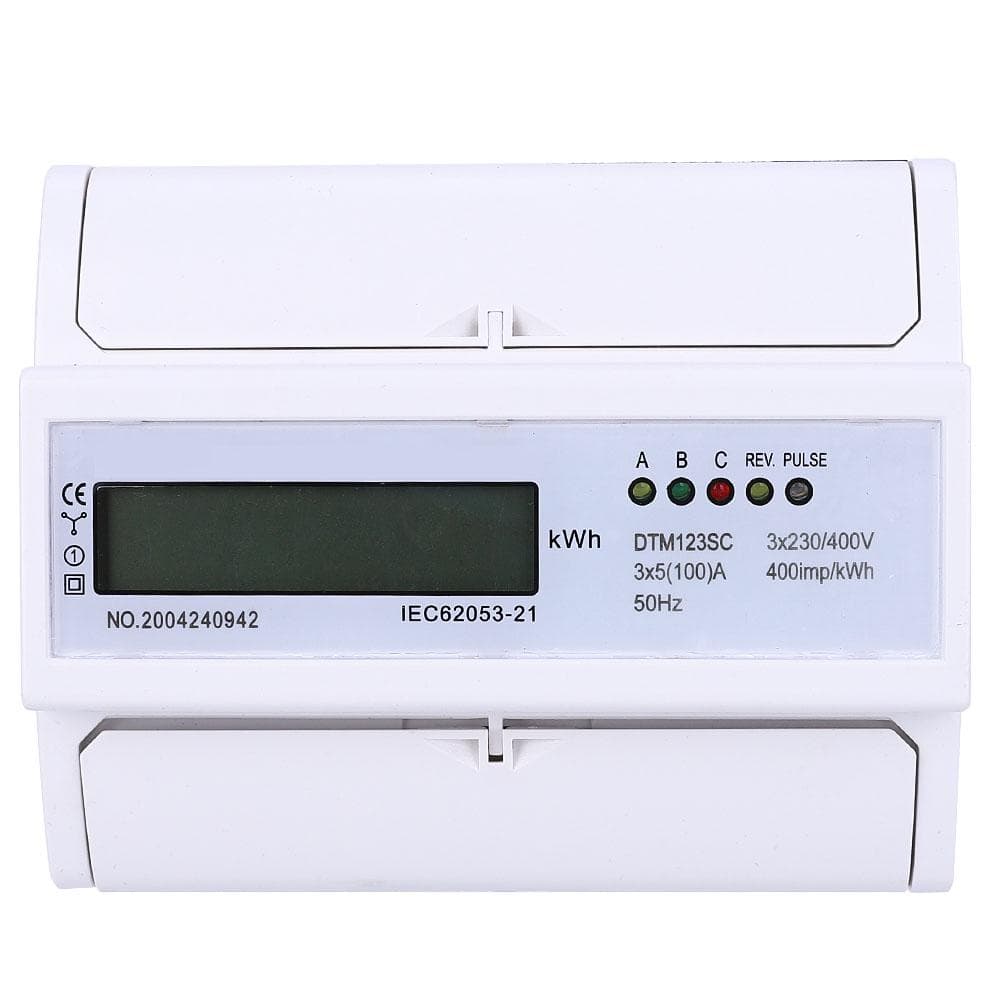

230400V 5100A Energy Consumption Digital Electric Power Meter 3 Phase KWh Meter with LCD

About this item

• Feature: DTM123SC threephase electronic power meter is a new generation of smart meter which is made of large integrated circuit, advanced digital technology and SMT technology. The technical performance of the product fully meets the requirements of Class 1 active watthour meter in the international standard IEC 6205321. 35mm standard DIN track installation, in line with the standard DIN EN50022. 6 width (modulus 12.5 mm), in line with DIN43880 standard. Standard configuration 6+1 backlight LCD (9999999.1KWh). Standard configuration pulse output passivity (polarity), can choose far pulse output passivity (nonpolarity), and easy contact with various AMR systems, in line with the standard IEC 6205331 and DIN 43864. Dualcolor LED indicates power status (green) and energy pulse signal (red). Direction measurement AC has functional consumption. This is independent of the flow direction of the load current. It meets the standard IEC 6205321. Direct connection operation, you can choose two connection modes. Standard configuration Stype wiring, Utype wiring can be selected. Specification: Model: DTM123SC Accuracy: Level 1 Voltage specification: 3x230V400V 50Hz Current specification: 3x5(100)A (reference current, Max current) Insulation performance: AC voltage 4KV, 1 minute, 1.250us waveform impulse voltage 6KV Display mode: LCD display Installation method: Rail type installation (35mm) Weight: 481g 17.0oz Package list: 1 x Electric Power Meter1 x Manual Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product. .DTM123SC threephase electronic power meter is a new generation of smart meter which is made of large integrated circuit, advanced digital technology and SMT technology. The technical performance of the product fully meets the requirements of Class 1 active watthour meter in the international standard IEC 6205321. 35mm standard DIN track installation, in line with the standard DIN EN50022. Standard configuration 6+1 backlight LCD (9999999.1KWh). Standard configuration pulse output passivity (polarity), can choose far pulse output passivity (nonpolarity), and easy contact with various AMR systems, in line with the standard IEC 6205331 and DIN 43864.
