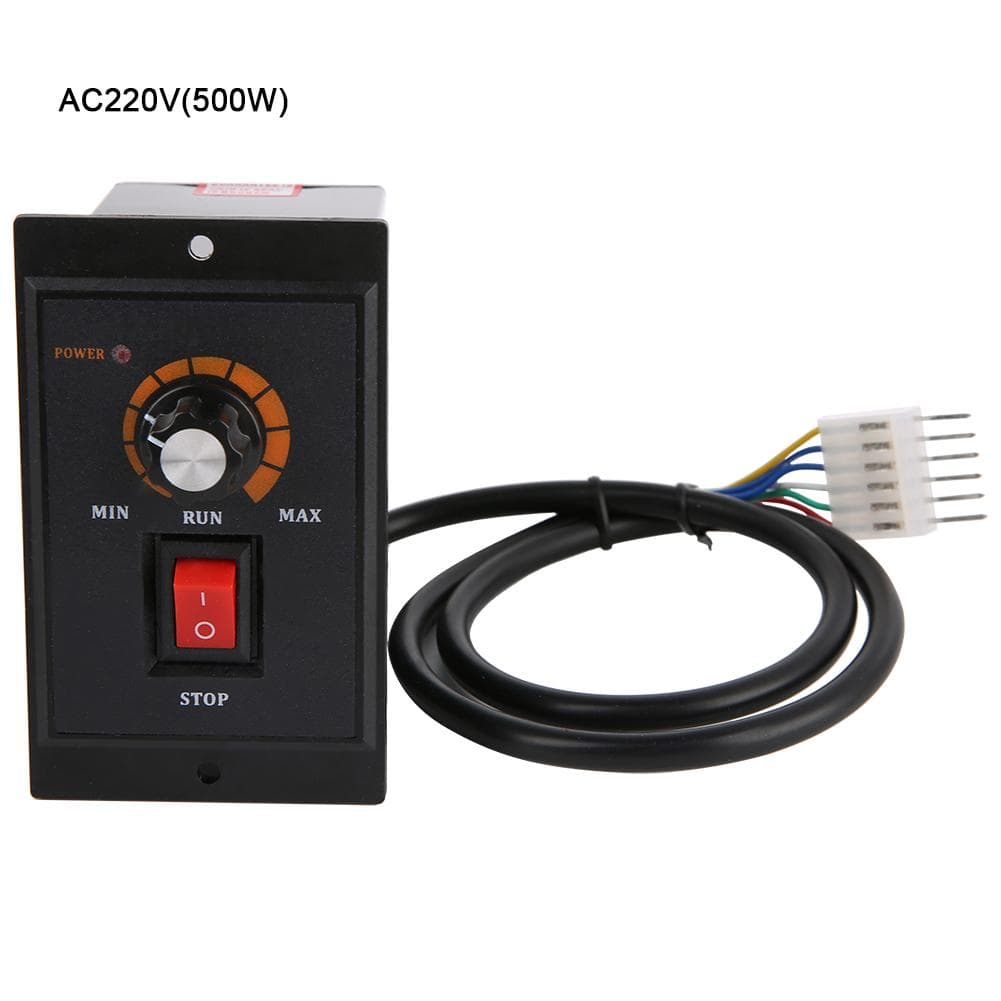

AC 220V 5060Hz Single Phase AC Motor Speed Controller Electric Motor Speed Regulator(500W)

About this item

• Feature: The speed control range of motor governor is 901400rmin and 901700rmin respectively at 5060Hz. The controller is manufactured with high quality electronic components, and its performance is stable and reliable. The control precision is high and the microcontrol of motor speed is realized. The operation of the product is simple, which enables novices to learn and master the operation method quickly. Widely used in packaging, printing, food, electronics, instrumentation, medical equipment, clothing industry production line as speed drive device. Specification: Product model: US52RED Matching motor power: 300W; 400W; 500W (Optional ) Working power supply: AC220V 5060HZ (Voltage fluctuation range +10percent Ue) Use environment: 10~+50 celsius Relative humidity: <90percent Speed range: 901400rmin 50HZ, 901700rmin 60HZ Package list: 1 * Motor Speed Controller Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product. Installation and usage method: The controller has 6 lines, the black line is the main line of the motor, the red and white are the capacitor secondary lines, the two blue lines are the speed feedback line, and the green line is the ground line. Turn off the power, connect according to the wiring diagram and confirm that the line connection is correct, do not arbitrarily modify it; Set the external speed knob to 0 before use to avoid transient high currents and damage the controller. This product is controlled by generator feedback voltage, and the control line is divided into two lines: blue and yellow . When the governor is connected to the motor and found that the torque or speed does not meet the requirements, the US52 adjusts the side trimmer potentiometer (speed setting adjustment). To change the direction of motor operation, simply replace the jumper CCW and CW on the wiring on the back of the controller. * When changing direction, you must change the motor after it has completely stopped running. 1) Select COM and CW short circuit, then the motor rotates clockwise; 2) Select COM and CCW to short, then the motor rotates counterclockwise. The action switch only controls the motor to operate or stop, and does not use the power supply for interruption. If it is not used for a long time, please turn off the power. The speed control range of motor governor is 901400rmin and 901700rmin respectively at 5060Hz. The controller is manufactured with high quality electronic components, and its performance is stable and reliable. The control precision is high and the microcontrol of motor speed is realized. The operation of the product is simple, which enables novices to learn and master the operation method quickly. Widely used in packaging, printing, food, electronics, instrumentation, medical equipment, clothing industry production line as speed drive device.
