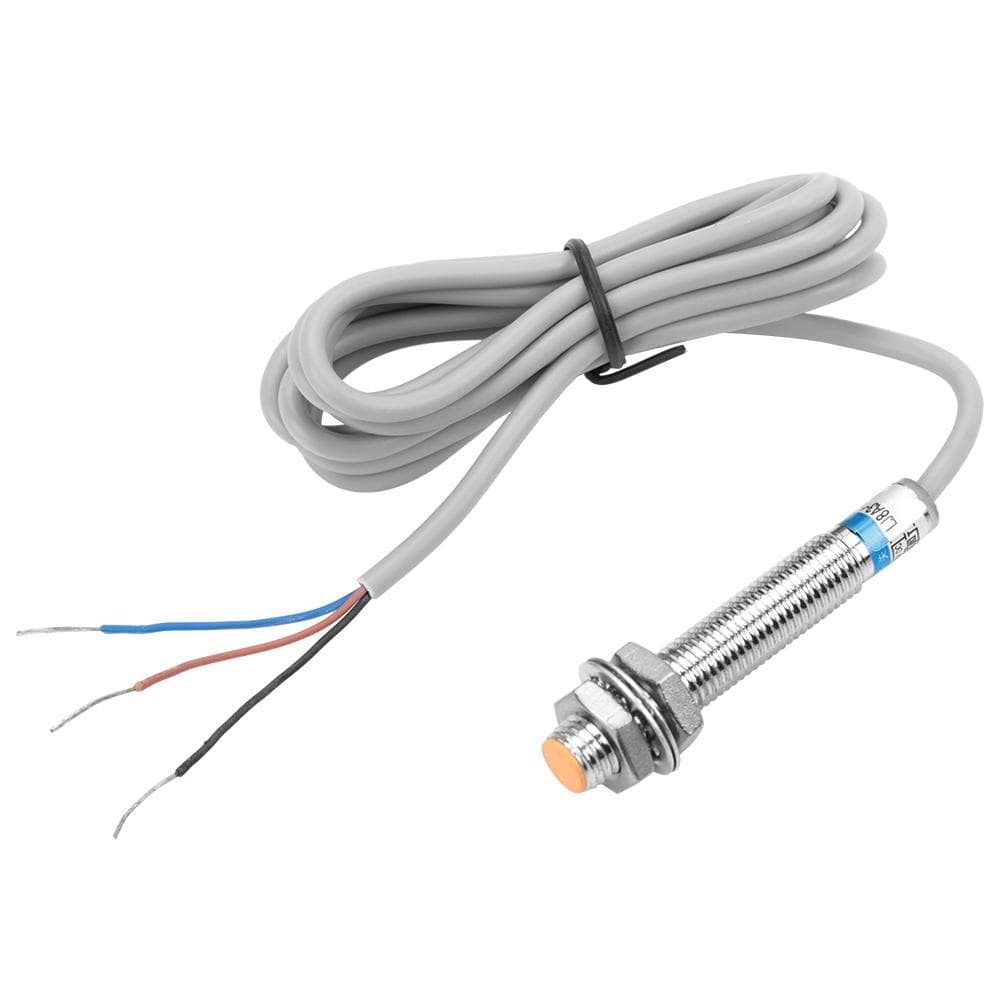

1mm LJ8A31ZBY PNP DC 3Wire Normally Open Inductive Sensor Proximity Switch

About this item

• Features: This is a normally close proximity switch sensor with 1mm detection distance. When proximity switch is close to some target object, it will send out control signal. It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. High sensitivity, quick response, stable performance. Noncontact detection avoids the sensor and the target object from damages. Specification: Model: LJ8A31ZBY Detection distance: 1mm+10percent Setting distance: 01.2mm Delay distance: <10percent of detection distance Detection object: Magnetic metal(The detection distance decreases when it is nonmagnetic metal) Standard detection object: Iron 8*8*1mm Response frequency: DC:0.5kHz AC:25Hz Current consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA Control output: N.P type: <300mA, D type: <200mA, A type: <400mA Loop protection: N.P.D type: reverse connection protection, surge absorption, load short circuit protection, type A: surge absorption Ambient temperature and humidity: 30~65 celsius , 3595percent RH Temperature influence: Temperature range 30~65 celsius , at 23 celsius , +15percent detection distance Temperature range: 25~60 celsius , at 23 celsius , +10percent 0detection distance Insulation impedance: >50M Ohm Housing material: Nickel plated brass Detection surface: ABS Weight: Approx. 27g Package list: 1 * Inductive Proximity Switch This is a normally close proximity switch sensor with 1mm detection distance. When proximity switch is close to some target object, it will send out control signal. It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. High sensitivity, quick response, stable performance. Noncontact detection avoids the sensor and the target object from damages.
