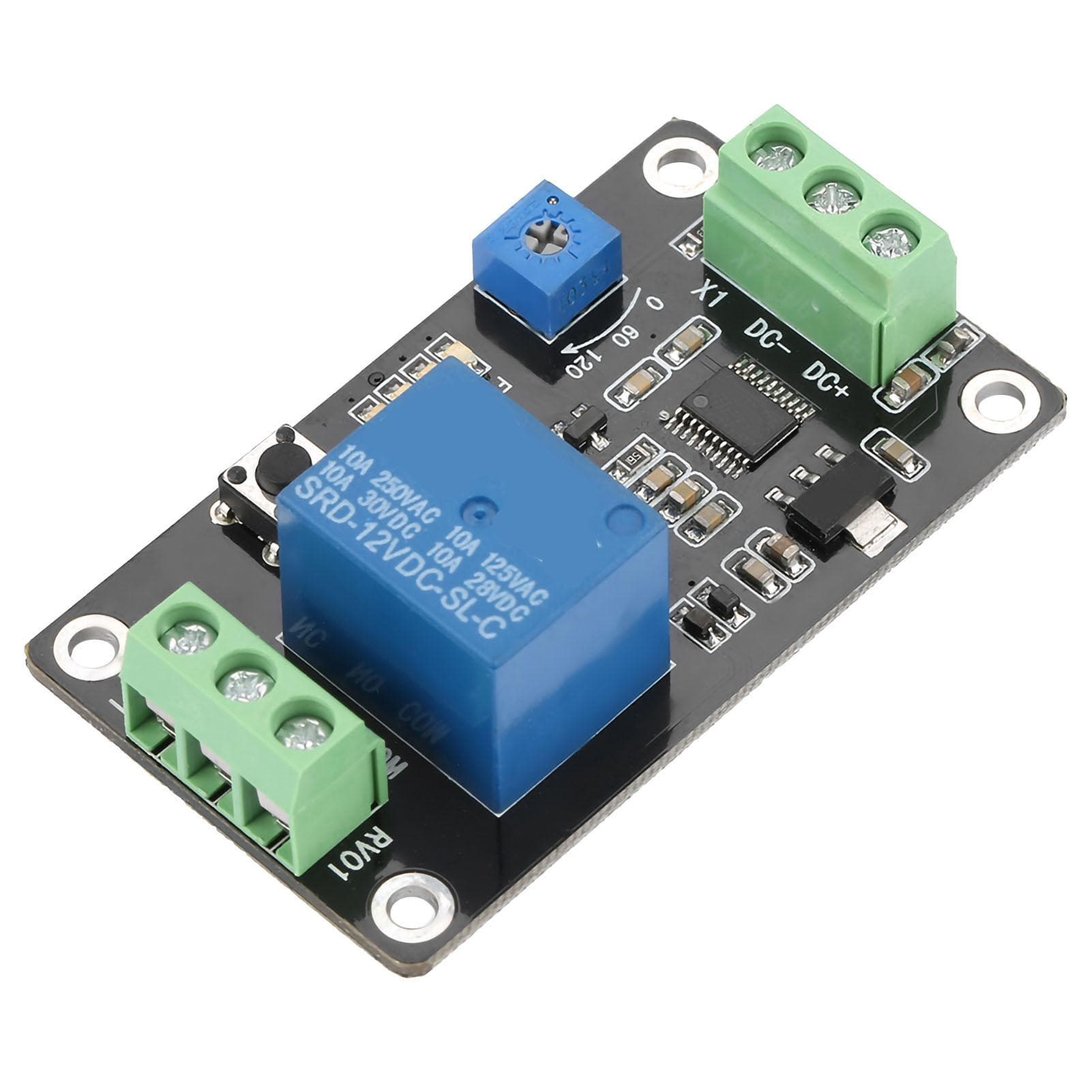

Delay Timer Relay Self locking Delay On Off Time Switch Super 555 Timer DC 12V

About this item

• TRM01 Delay Relay Module adopts highquality components and has stable performance and simple operation. It could be widely used in a variety of control situations that require delay selflocking. The module is preset with 4 functions to meet a variety of application needs, and can customize and add other specific functions as user needs. Features: 1. With delay ON, delay OFF, selflocking and trigger delay function. 2. With power supply antireverse function to prevent damaging the module. 3. There are three working voltage versions of 5V12V24V for users to choose from. 4. The delay time can be arbitrarily set between 0.1 seconds and 120 seconds. 5. The parameters can be saved, and the setting contents are not lost when power off. Specification: Working voltage: DC 5V, 12V, 24V (Optional) Working current: <80mA at 5V (<1mA when the relay is not operating) <35mA at 12V <1mA when the relay is not operating) <18mA at 24V (<1mA when the relay is not operating) Load capacity: normally open port: DC 030V10A, AC 0250V10A normally closed port: DC 028V10A, AC 0125V10A Working temperature: 20~60 celsius (limit range 30~70 celsius ) Size: 60*35*20mm 2.36*1.38*0.79in Package weight: Approx. 23g Module function: The user can select one of the following four functions by pressing the button. The delay time can be selected by adjusting the potentiometer. The delay time T1 can be adjusted between 0.1 second and 120 seconds. Function F1: Poweron delay pullin: After the delay of T1 from the start of poweron, the relay pulls in and sends a highlevel pulse signal to the X1 interface at any time. This function resets and restarts. Function F2: The poweron delay is disconnected: the relay is closed when the power is turned on. After the T1 time is closed, the relay is disconnected, and a highlevel pulse signal is given to the X1 interface at any time. This function is reset and restarts. Function F3: Selflocking relay mode: a highlevel pulse signal is sent to the relay X1 interface, the relay is closed, and a highlevel pulse signal relay is turned off. Function F4: Level trigger mode: When the power is turned on, the relay is disconnected, and a high level signal is sent to the X1 interface. The relay immediately picks up. After the X1 port signal disappears, the relay still pulls in. When the pullin time T1 arrives, the relay turns off. Module interface: Module voltage signal input has 3 wiring terminals. 1. DC+: DC power supply positive 2. DC: DC power supply negative 3. X1: input signal detection interface Relay load output has 3 wiring terminals. 1. COM: relay common interface 2. NO: relay normally open interface 3. NC: relay normally closed interface Package l ist: 1 * Delay Timer Relay .With delay ON, delay OFF, selflocking and trigger delay function. With power supply antireverse function to prevent damaging the module. There are three working voltage versions of 5V12V24V for users to choose from. The delay time can be arbitrarily set between 0.1 seconds and 120 seconds. The parameters can be saved, and the setting contents are not lost when power off.
