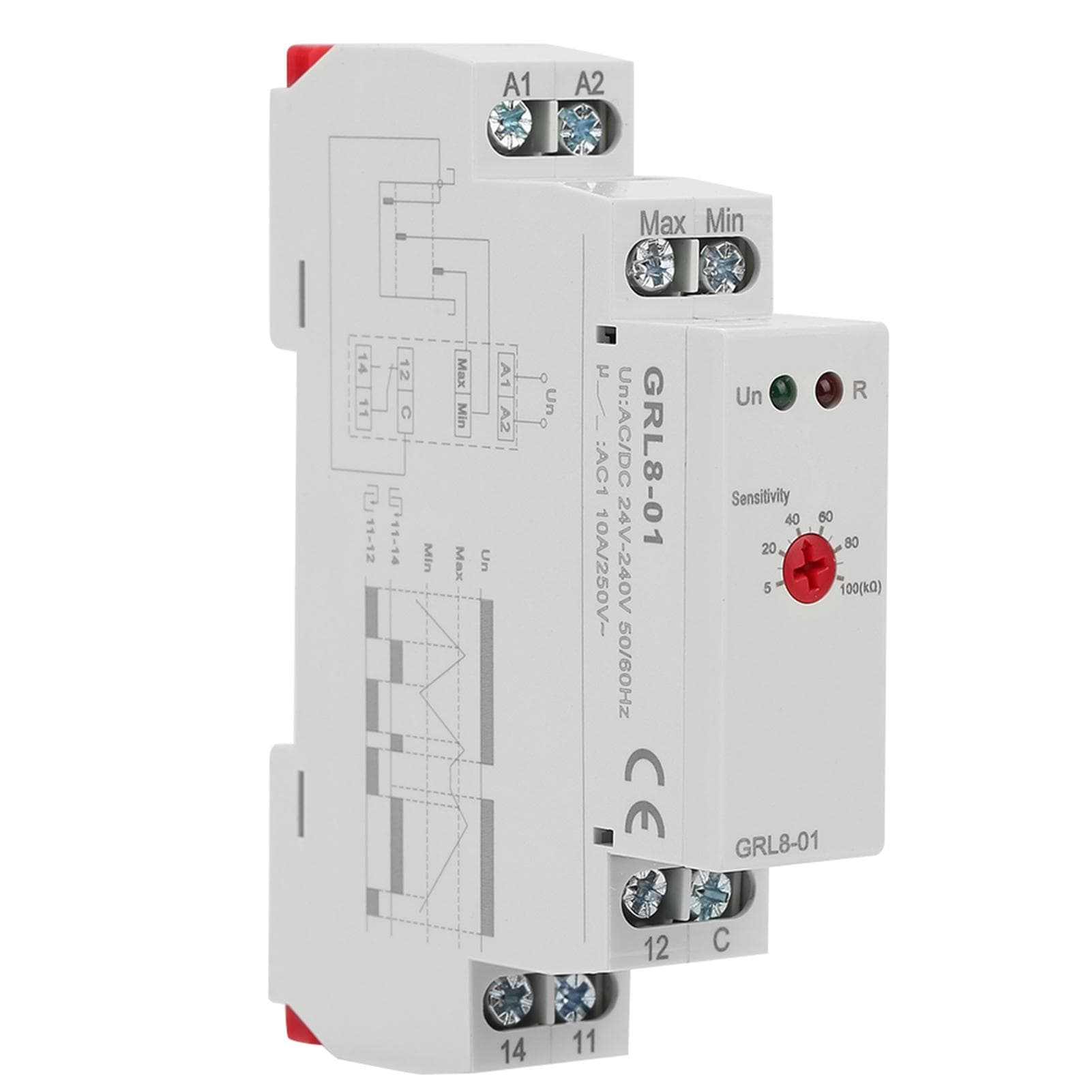

GRL801 Liquid Level Control Relay Water Level Controller 10A ACDC 24V240V

About this item

• Features: 1. Designed for monitoring liquid level in pool, well, water tower, reservoirs, tanks, etc. 2. Adjustable sensitivity by a knob (5100k Ohm ). 4. Stable performance, long service life. 5. Relay status is indicated by LED. 6. With small volume, 35mm DIN rail mount. Specification: Model: GRL801 Function: 2 level control mode Power terminal: A1A2 Power consumption: Max. 2VA Sensitivity adjustment range: 5100k Ohm Current in electrodes: Max. 0.1mA Response time: Max. 400ms Electrode cable allows distributed capacitance (maximum): 400nF100nF Electrode cable length: less than 100m Setting accuracy: 10percent Output contact parameters: 1 x SPDT, 10AAC1, 250VAC24VDC Minimum switching power: 500mW Power indicator: Green LED Output indication: Red LED Mechanical life: 1x107 Electrical life(resistive load): 1x106 Reset time: Max 200ms Working temperature: 20 celsius ~55 celsius Mounting method: 35mm DIN rail Mounting altitude: less than 2000m Wiring capability: 1x2.5mm2 or 2x1.5mm2 Dimensions: 90*18*64mm 3.54*0.71*2.52in Weight: Approx. 70g2.5oz Package L ist: 1 * Liquid Level Control Relay Note : 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding. .Designed for monitoring liquid level in pool, well, water tower, reservoirs, tanks, etc. Adjustable sensitivity by a knob (5100k Ohm ). Stable performance, long service life. Relay status is indicated by LED. With small volume, 35mm DIN rail mount.
