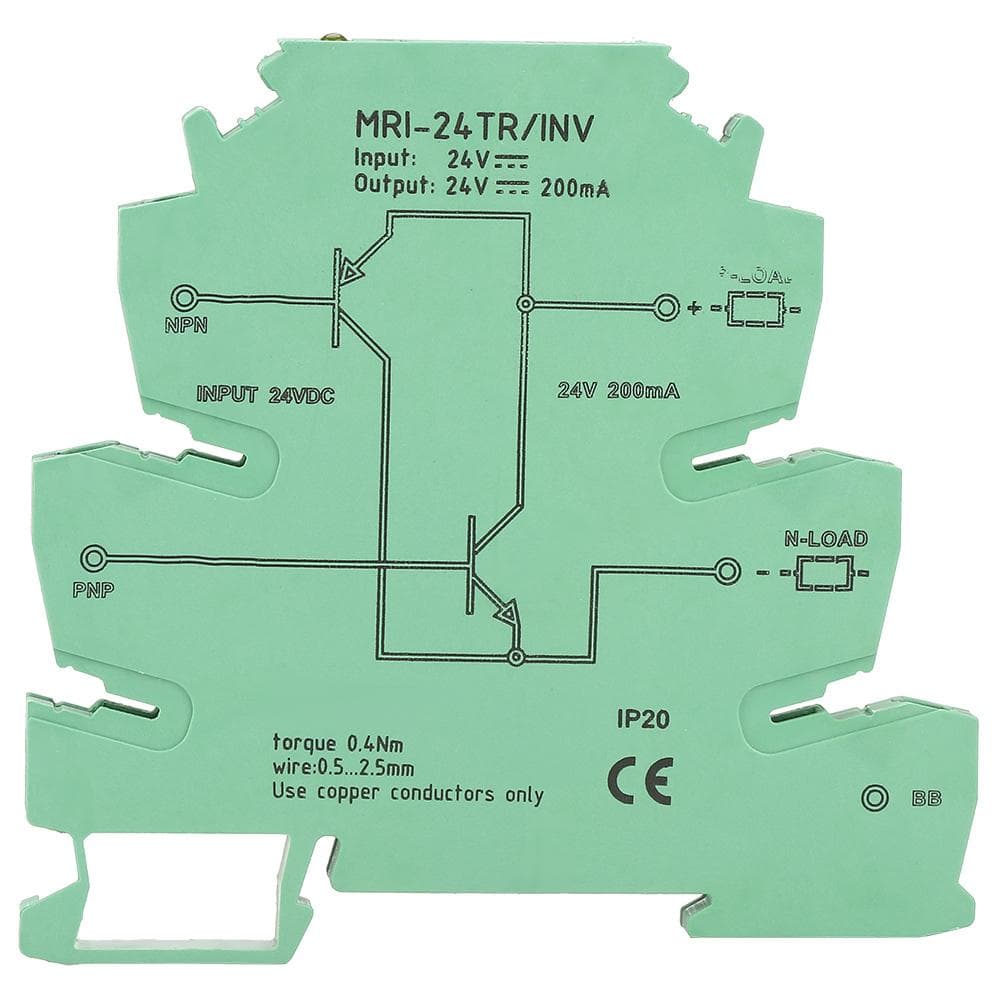

MRI?24TRINV NPN PNP Signal Converter PLC Sensor Polar IO Level Conversion Module

About this item

• Features: 100percent brand new and high quality Can be used as a noncontact switch This module can convert NPN signal into PNP output, or convert PNP into NPN output Maximum continuous current is 200 mA, the Maximum transmission frequency is 15 KHZ The width is only 6.2mm,which saves 60percent of installation space Plugin bridging type.Convenient DIN rail installation Specification: Operating voltage: 2030 VDC Max. sustained current: 200 mA Voltage drop: < 1 v Leakage current: < 1 mA Transmission frequency: Max.15 KHZ NPN Input PNP output Connect threshold: < 5 v (UV = 24 v; < (UV 19 v)) Disconnect threshold: > 15 v (UV = 24 v; > (UV 9 v)) Min. limit value: 2 v Max. Limit value: 26 v (UV = 24 v; UV + 2 v) Control circuit Connect threshold: > 19 v Disconnect threshold: < 9 v Min. limit value: 2 v Max. Limit value: 26 v (UV = 24 v; UV + 2 v) Working environment temperature: 20 ~ 50 celsius Connection: screw Connection Size: 81*6.2*78mm3.2*0.2*3.1in Weight: Approx.31g1.1oz Package list: 1 x NPN PNP signal converter .100percent brand new and high quality This module can convert NPN signal into PNP output, or convert PNP into NPN output Maximum continuous current is 200 mA, the Maximum transmission frequency is 15 KHZ The width is only 6.2mm,which saves 60percent of installation space Plugin bridging type.Convenient DIN rail installation
