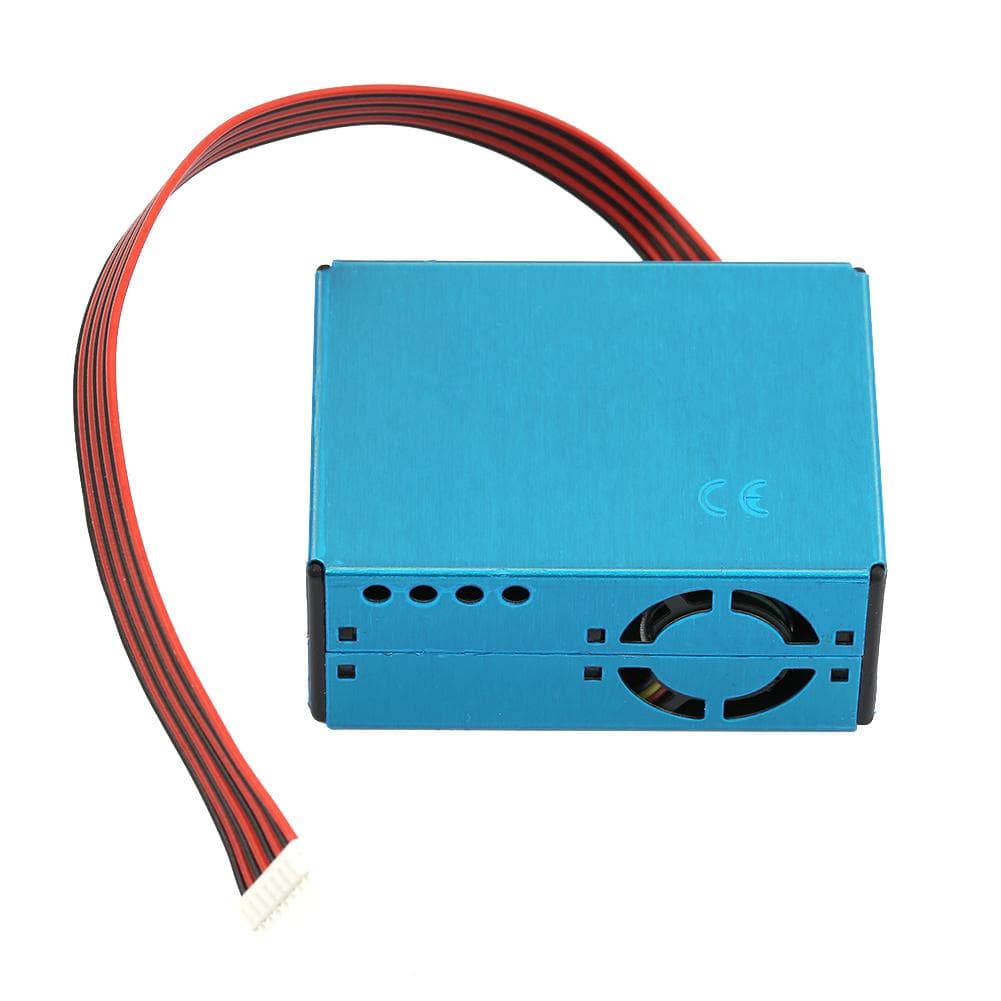

G5 PMS5003 Laser PM2.5 Sensor Air Quality Monitoring Dust Haze Tester white

About this item

• Features: 1. Laser scattering principle achieves accurate measurement. 2. Constant wind pressure and flow selfadaption control system. 3. Optical system adopts high performance laser module and photosensitive components. 4. Adopt deep algorithm to optimize the compensation, ensuring that the measuring results under different environment are stable and consistent. 5. Sameside air inlet and outlet simplify structural design. 6. Dust prevention sensor structure design. 7. The product has gone through EMI, EMC testing and passed reliability testing. Specification: Model G5 PMS5003 Effective range 0~500ugm3 Maximum range 000ugm3 Resolution of PM concentration 1ugm3 Minimum Dia. of distinguishable PM 0.3um Consistency of PM2.5 concentration, (25+5) celsius , (50 +10 ) percent RH, standard testing environment +10percent @ 100~500 ugm3 +10ugm3 @ 0~100ugm3 Response time less than 3s Data interface UART@3.3V, PWM Interface level Input voltage for high level(VIH): 1.8V~5V Input voltage for low level(VIL): <0.8V Output voltage for high level(VOH): >2.9V Output voltage for low level(VOL): <0.4V Working voltage 5V(4.8V~5.5V) Working current <100mA Operating environment 10~60 celsius , 099percent RH Storage temperature 30~70 celsius Dimensions 50*38*20mm 2.0*1.5*0.8in Weight Approx. 42g1.5oz MTBF( Mean time between failures) >30000 hours Package L ist: 1 * Laser PM2.5 Sensor .Laser scattering principle achieves accurate measurement. Constant wind pressure and flow selfadaption control system. Optical system adopts high performance laser module and photosensitive components. Adopt deep algorithm to optimize the compensation, ensuring that the measuring results under different environment are stable and consistent. Sameside air inlet and outlet simplify structural design.
