5V 24V Motor Forward Reverse Controller Timing Delay Time Cycles Relay

About this item

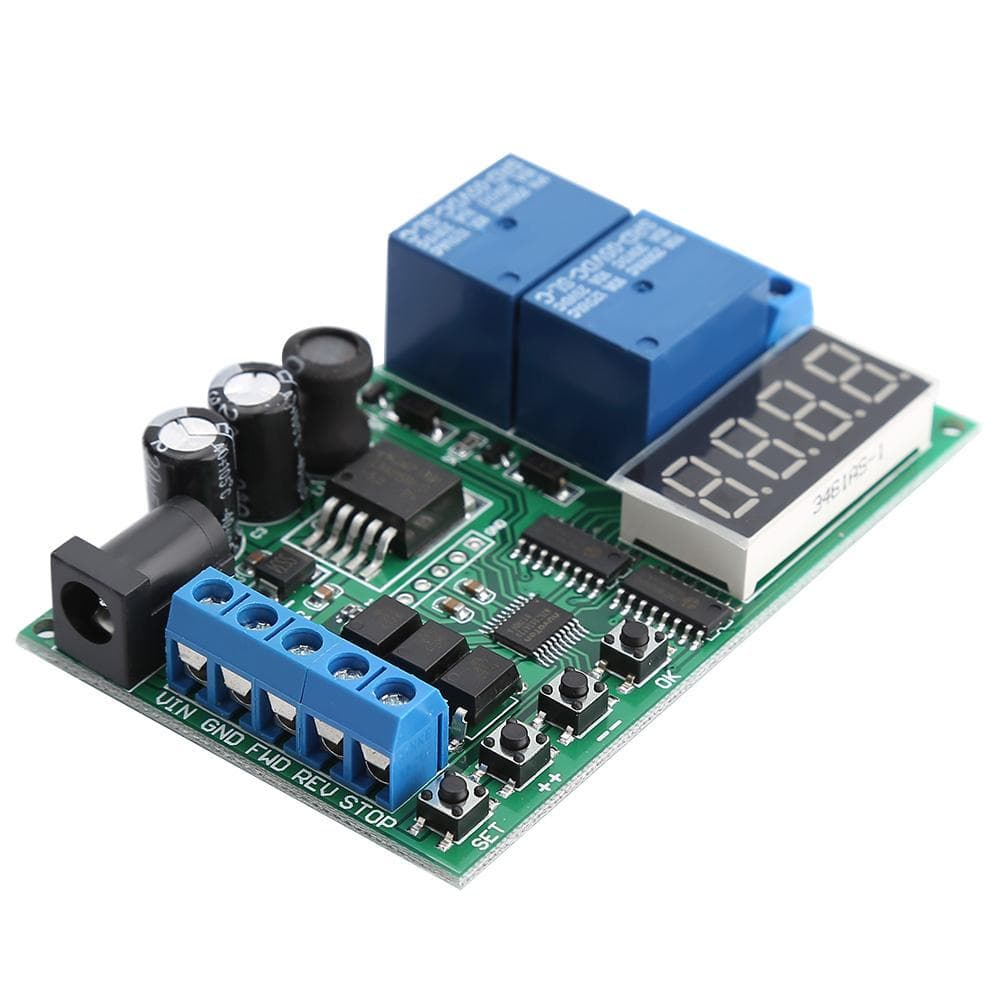

• Features: Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.525V; Power supply 2, DC 5V Working current: (Normal Mode) standby current 41mA, working current 83mA; (EnergySaving mode) Standby current 7mA, working current 44mA. There are three input control port: forward control(FWD), reverse control(REV), and stop control(STOP). Two input trigger modes, LowPulse trigger mode, LowLevel trigger mode Delay time: 0.1999.9 seconds, 19999 seconds, 19999 minutes. Cycle times: no cycle, 299 cycles, always cycle. Three indicators: forward indicator(F LED), reverse indicator(R LED), stop indicator(S LED). Relay load current, recommended less than 5A. This is a multifunction DCAC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings. Port: DC 5.5MM female : Power supply 1, DC 5V power supply. VIN: Power 2 positive, DC 6.525V power supply GND: Power supply 2 negative FWD: Forward input control (partial FunctionMode is invalid) REV: Reverse input control (partial FunctionMode is invalid) STOP : Stop input control (partial FunctionMode is invalid) M+: Motor positive M: Motor negative P+: Positive terminal for motor power supply P: negative terminal for motor power supply Specification: Power supply: DC 6.525V, DC 5V Working current: 83mA Standby current: 41mA Relay load current: <5A Delay time: 0.1999.9 seconds, 19999 seconds, 19999 minutes Size: 8*5cm3.2*2in Weight: Approx. 51g1.8oz Trigger mode: 1 low pulse trigger (falling edge trigger) 2 low level trigger (rising edge trigger) Timer: T1: Forward timer T2: Reverse timer T3: Stop timer Time unit : 0.1 second, 1 second, 1 minute Relay action: Motor forward : Relay 1 is ON, relay 2 is OFF, and the F LED indicator is flashing. Motor reverse : Relay 1 is OFF, relay 2 is ON, and the R LED indicator is flashing.. Motor stop : Relay 1 is OFF, relay 2 is OFF, and the S LED indicator is flashing. Factory settings: Press the ++ and buttons simultaneously for 5 seconds. Energysaving mode: Press and hold the OK button for 5 seconds to enter the Energysaving mode . Press and hold the OK button again for 5 seconds to exit the Energysaving mode . Energy saving mode just turns off the digital tube and LED indicator, and other functions are normal. Function mode: F01 After poweron, the motor is forward T1 time; then the motor stops T3 time; then the motor reverse T2 time; so it is repeated Nx times. When the STOP port is triggered, the motor stops working immediately. (FWD, REV port is invalid) F02 This function is a F01 variant. F01 is run directly after poweron, but F02 needs to trigger FWD or REV port to run. F11(Trigger reversible 1) Trigger the FWD port, the motor is forward T1 time, and automatically stops (in order to protect the motor, during the delay period, trigger the REV port to stop T3 time and then reverse T2 time, trigger FWD port to retime T1). Trigger the REV port, the motor is reverse T2 time, and automatically stops (in order to protect the motor, during the delay period, the FWD port is triggered to stop the T3 time and then the T1 time is forward, and the REV port is retimed T2). When the STOP port is triggered, the motor stops immediately, regardless of whether the motor is forward or reverse. F12(Trigger reversible 2) Trigger the FWD port, the motor is forward T1 time and stops automatically (during the delay period, except for triggering STOP port, the other ports are invalid). Trigger the REV port, the motor is reverses T2 time, and automatically stops (during the delay period, except for triggering STOP port, the other ports are invalid). When the STOP port is trigger, the motor stops immediately, regardless of whether the motor is forward or reverse. F21 When the FWD port is low level, the motor is forward, and after the FWD port is released, the motor stops. When the REV port is low level, the motor is reversed, and after the REV port is released, the motor stops. In this mode, the FWD and REV ports cannot be connected low level at the same time, and the STOP port is invalid. F22 When the FWD port is low level, the motor is forward, and after the FWD port is released, the motor stops. When the REV port is low level, the motor is reversed, and after the REV port is released, the motor stops. In this mode, the FWD and REV ports cannot be connected low level at the same time, triggering the STOP port, the motor stops immediately. Parameter setting: There are three menus: Work Menu, Function Menu, Parameter Menu. Note: When entering the Function Menu or Parameter Menu , the module still works normally (countdown and the trigger is running normally). The set parameters are valid only after being powered on again. 1 Power on to enter the running state (Work Menu). If the current function is F01, then the motor direct run and the digital tube displays the countdown. F01 is displayed after the operation is completed. If the current function is other functions, such as F11. Then the digital tube displays F11. After the trigger, the digital tube displays the countdown. After the operation is completed, F11 is displayed. <Description: The forward countdown F LED indicator flashes, the reverse countdown R LED indicator flashes, and the S LED indicator flashes when stopped.| Function mode Digital tube display Setting method Function 01 F101 Short press the SET button to enter the setting state,then use the ++ button and the button to select the corresponding submenu setting,short press the OK button to return to the previous menu Function 02 F102 Function 011 F111 Function 012 F112 Function 21 F121 Function 22 F122 2 In the running state(Work Menu), short press the SET button to enter the Function Menu (Above table). Digital tube bit 1(parameters) bit2 bit34 parameter definition default parameter 1 0099 Time T1:single digit and tens digit 04 2 0099 Time TI:hundreds digit and thousands digit 00 3 0099 Time T2:single digit and tens digit 02 4 0099 Time T2:hundreds digital and thousands digita 00 5 0099 Time T3:single digit and tens digit 01 6 0099 Time T3:hundreds digit and thousands digit 00 7 0103 01:0.1seconds 02:second 03:minute time unit 02 8 099 number of cycles 1 9 0102 01 low pulse trigger 02 low level trigger trigger mode 01 Package list: 1 x Motor Controller board Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.525V; Power supply 2, DC 5V Working current: (Normal Mode) standby current 41mA, working current 83mA; (EnergySaving mode) Standby current 7mA, working current 44mA. There are three input control port: forward control(FWD), reverse control(REV), and stop control(STOP). Two input trigger modes, LowPulse trigger mode, LowLevel trigger mode Delay time: 0.1999.9 seconds, 19999 seconds, 19999 minutes.
