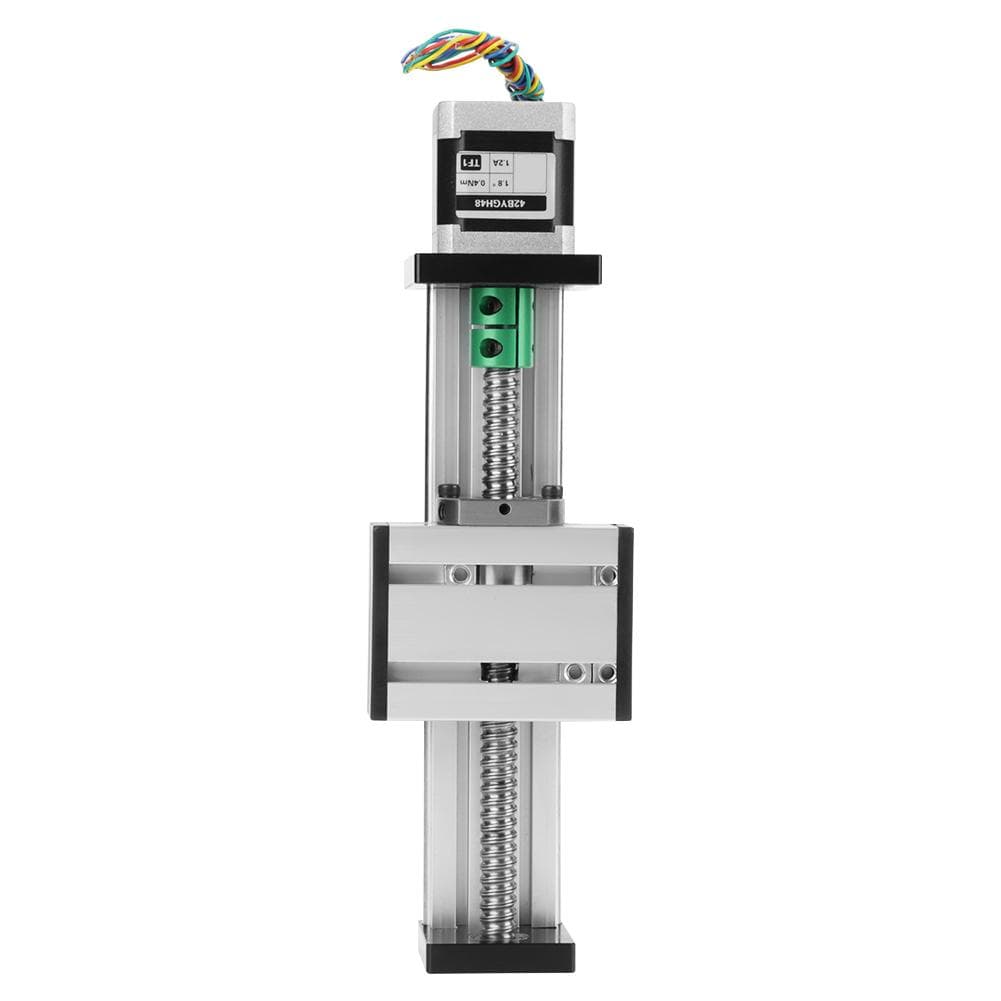

1204 Ball Screw Linear Slide Stroke Long Stage Actuator with Stepper Motor 100mm Stroke

About this item

• Features: Made of high quality metal wit h durable construction. High precision, exquisite craft, smooth surface. Long life, low coefficient of friction, high versatility. Linear motion, with a small frictional resistance. Linear shaft Diameter is 12mm0.47inch, and the effective stroke is 100mm3.9inch. Specifications: Material: Aluminum Boundary dimension: 40mm Shaft diameter: 12mm 0.47inch Rated vertical load: 40KG Rated horizontal load: 60KG Accuracy: 0.01mm Effective stroke: 100mm 3.9inch Ball screw length: 165mm Sliding block: 60 x 80 x 30mm 2.36 x 3.15 x 1.18inch Pitchrow width: 68mm (max) Pitchrow length: 60mm Screw: M6 Slide table size: 190 x 40 x 20mm 7.48 x 1.57 x 0.79inch Weight: Approx. 1432g Package Included: 1 x Ball Screw Slide with a Stepper Motor Made of high quality metal with durable construction High precision, exquisite craft, smooth surface Long life, low coefficient of friction, high versatility Linear motion, with a small frictional resistance Linear shaft Diameter is 12mm0.47inch, and the effective stroke is 100mm3.9inch
