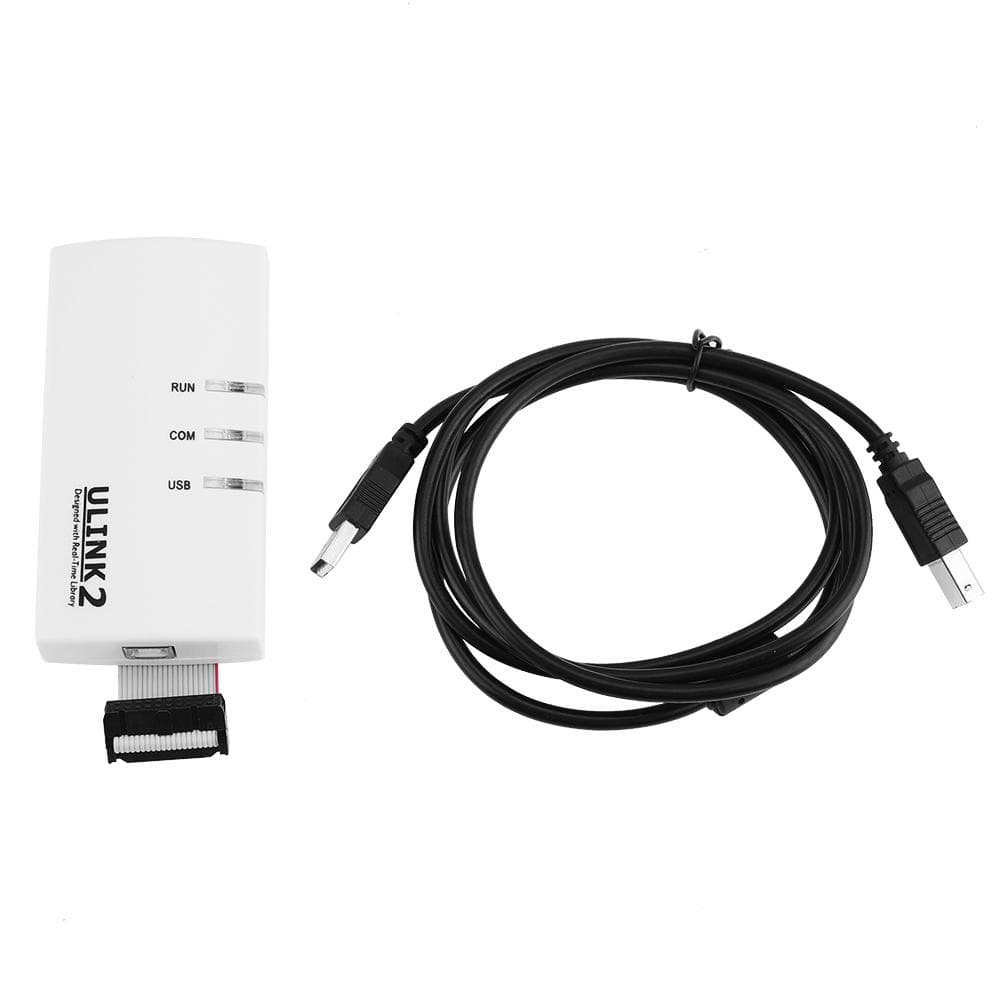

ULINK2 Emulator Original Firmware Support for MDK5.0Cortex M4

About this item

• Features: Support for the latest MDK5.0CortexM4 devices Supports serial debugging based on ARM M3 Support memory read and write, terminal simulation and serial debug output during program operation Support 10pin connection (also 20pin connection) USB communication interface to download user code at high speed Storage arearegister view Fast singlestep program running Multiple program breakpoints Specifications: Type: ULINK2 Emulator RAM Breakpoints: Unlimited ROM BreakpointsARM79): 2 max ROM Breakpoints(CortexM3): 6 max Execution Breakpoints (Set While Executing): yes Access Breakpoints(ARM79): 2 max (RW Only, With Value) Access Breakpoints(CortexM3): 4 max (With Value) Trace History: No RealTime Agent : yes JTAG clock: <= 10MHz JTAG RTCK support (Return Clock): yes Memory RW(Bytessec): about 28K Flash RW(Bytessec): about 25K SingleStep(Fast)(Instructionssec): about 50 Size: 11 x 5.5cm 4.33 x 2.16in Weight: 40g Package included: 1 x Emulator 1 x cable Support for the latest MDK5.0CortexM4devices Standard Windows usb drivers support ULINK2 plug and play Supports serial debugging based on ARM M3 Support memory read and write, terminal simulation and serial debug output during program operation Support 10pin connection (also 20pin connection)
