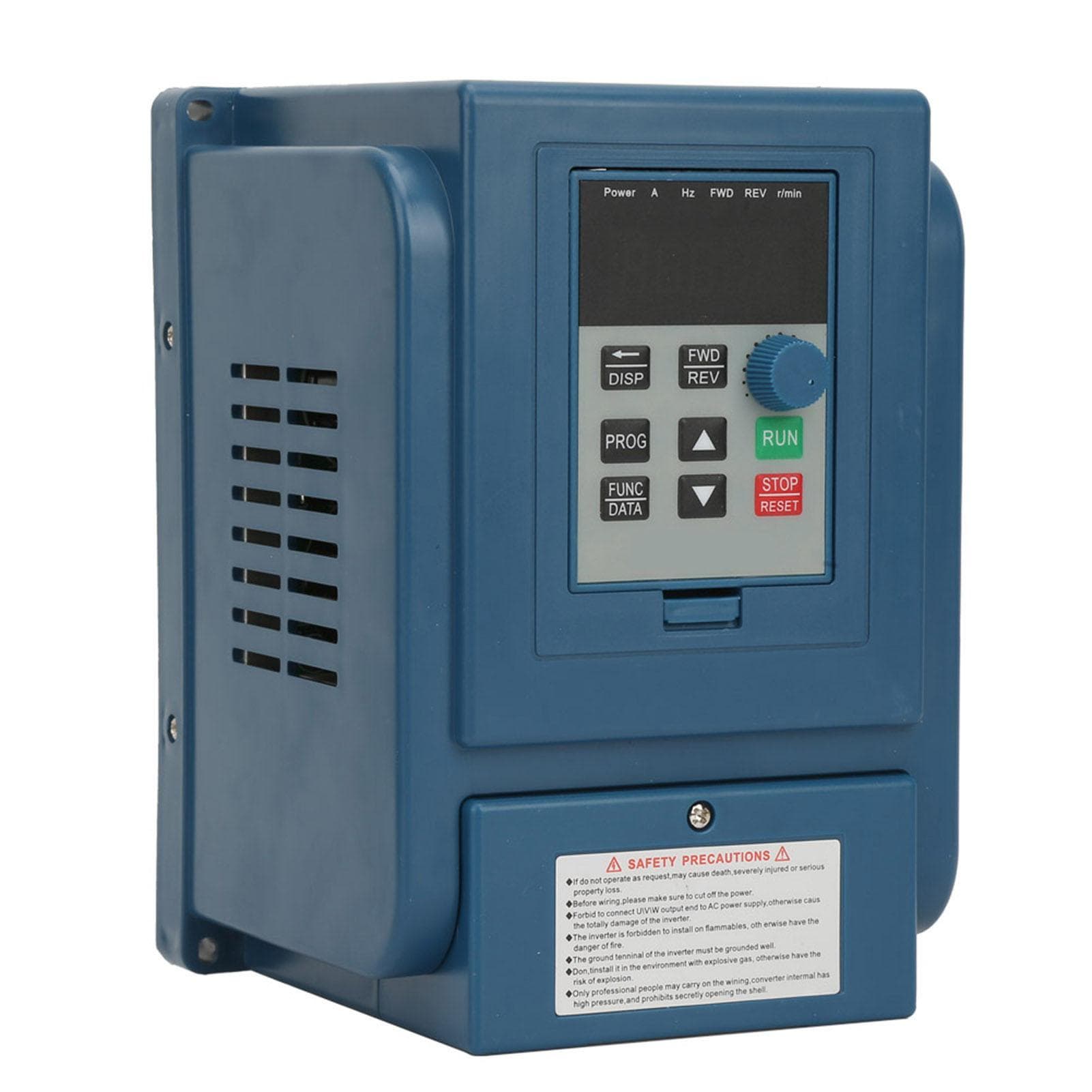

1pc 380VAC 6A Variable Frequency Drive VFD Speed Controller for 3?phase 2.2kW AC Motor

About this item

• Features: This VFD uses unique control method to realize high moment of force, high accuracy and wide speed regulating range driving, with high performance. It has good antitrip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability. By optimizing PWM control technology and electromagnetic compatibility, it satisfies users requirement of low noise, low electromagnetic interference. Simple to operate and wire, connect to wires by screw terminals which are more convenient . Designed with cooling fan and large heat sink for better heat dissipation. Specifications: Model: AT32200X Power Source Phase: Threephase Rated Voltage: Threephase AC380V Power Supply Voltage: Low voltage Suitable Motor Power: 2.2kW Filter: Builtin filter DC Power Supply Type: Voltage type Control Method: VF closed loop Output Voltage Adjusting Method: PWM control Rated Current: 6A Protection: Overcurrent, overvoltage, overheat, undervoltage, short circuit protection Max. Output Frequency: 400Hz Size: 18*12.5*13cm7.1*4.9*5.1in Weight: 1.4kg(approx.) Terminal Instruction: Terminal Function Details 15V24V 15V24V power input 200mA15V24V power supply output X6 Input terminal 6 (wire control CWCCW switch) X6 connects to COM, input signal is effective X5 Input terminal 5 (wire control CCW) X5 connects to COM, input signal is effective X4 Input terminal 5 (wire control CW) X4 connects to COM, input signal is effective X3 Input terminal 3 (speed range 3) X3 connects to COM, input signal is effective X2 Input terminal 2 (speed range 2) X2 connects to COM, input signal is effective X1 Input terminal 3 (speed range 3) X1 connects to COM, input signal is effective 485+485 485 communication port COM Common terminal VI1 External analog voltage input 05V10V analog voltage input CI External current signal input 420mA current signal input SP1 Open collector output 1 SP2 Open collector output 2 5V10V 5V10V 20mA power supply output TC Relay output 250VAC 5A30VDC 3A TA & TB are NC, TA & TC are NO TB Relay output TA Relay output Note: 1. When adjusting parameter, the VFD must stop working, otherwise it will not be able to save parameter setting. 2. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. Package Includes: 1 x Variable Frequency Drive .This VFD uses unique control method to realize high moment of force, high accuracy and wide speed regulating range driving, with high performance It has good antitrip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability By optimizing PWM control technology and electromagnetic compatibility, it satisfies users requirement of low noise, low electromagnetic interference Simple to operate and wire, connect to wires by screw terminals which are more convenient Designed with cooling fan and large heat sink for better heat dissipation
