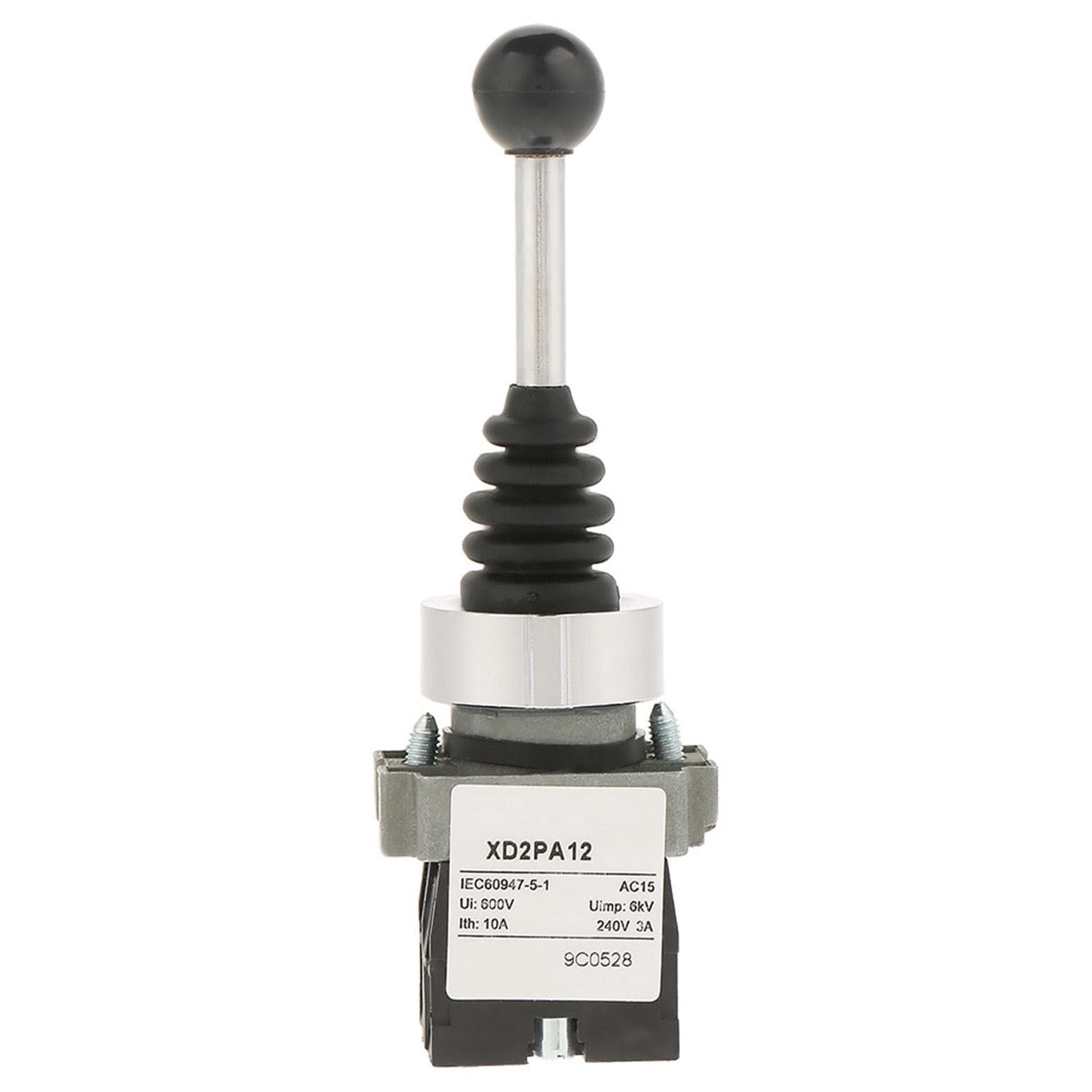

2 Position 2NO Locked Joystick Switch Replacement Fits for XD2PA12

About this item

• Descriptions: This Twoway selflocking joystick switch is widely used for industrial control AC 50Hz and DC circuits. It can control magnetic starter, contactor, relay and other electrical circuits. Features: This Twoway selflocking joystick switch is widely used for industrial control AC 50Hz and DC circuits. It can control magnetic starter, contactor, relay and other electrical circuits. The rubber sleeve has the characteristic of water resistance, oil resistance and dust resistance . The joystick switch is a Twoway selflocking switch, is 2NO type, so it has 2 normally open contacts. This switch is easy for mounting and operation, with long serving life. Specifications: Model: XD2PA12 Contact: 2 NO Rated voltage: 220V 380V Rated current: 5A 10A Assembly aperture: Dia. 22 mm Electrical life: >500,000 times Mechanical life: > 500,000 times Standard operating environment: Ambient temperature: 25 ~ +55 degrees Celsius (no ice) Operating humidity: 45 ~ 85percent RH (no condensation) Contact resistance: less than 50m Ohm Insulation resistance: more than 100 Ohm Maximum withstand voltage: 3000V, AC 50Hz Vibration: 50 Hz , amplitude: Approx. 1mm Impact resistance: > 10ms2(about 10G) Protection grade: IP55 Overall size: 12.3 x 4cm 4.84 x 1.57inch Weight: 124g Package Includes: 1 x Jo ystick Switch ( XD2PA12) .This Twoway selflocking joystick switch is widely used for industrial control AC 50Hz and DC circuits It can control magnetic starter, contactor, relay and other electrical circuits The rubber sleeve has the characteristic of water resistance, oil resistance and dust resistance The joystick switch is a Twoway selflocking switch, is 2NO type, so it has 2 normally open contacts This switch is easy for mounting and operation, with long serving life
