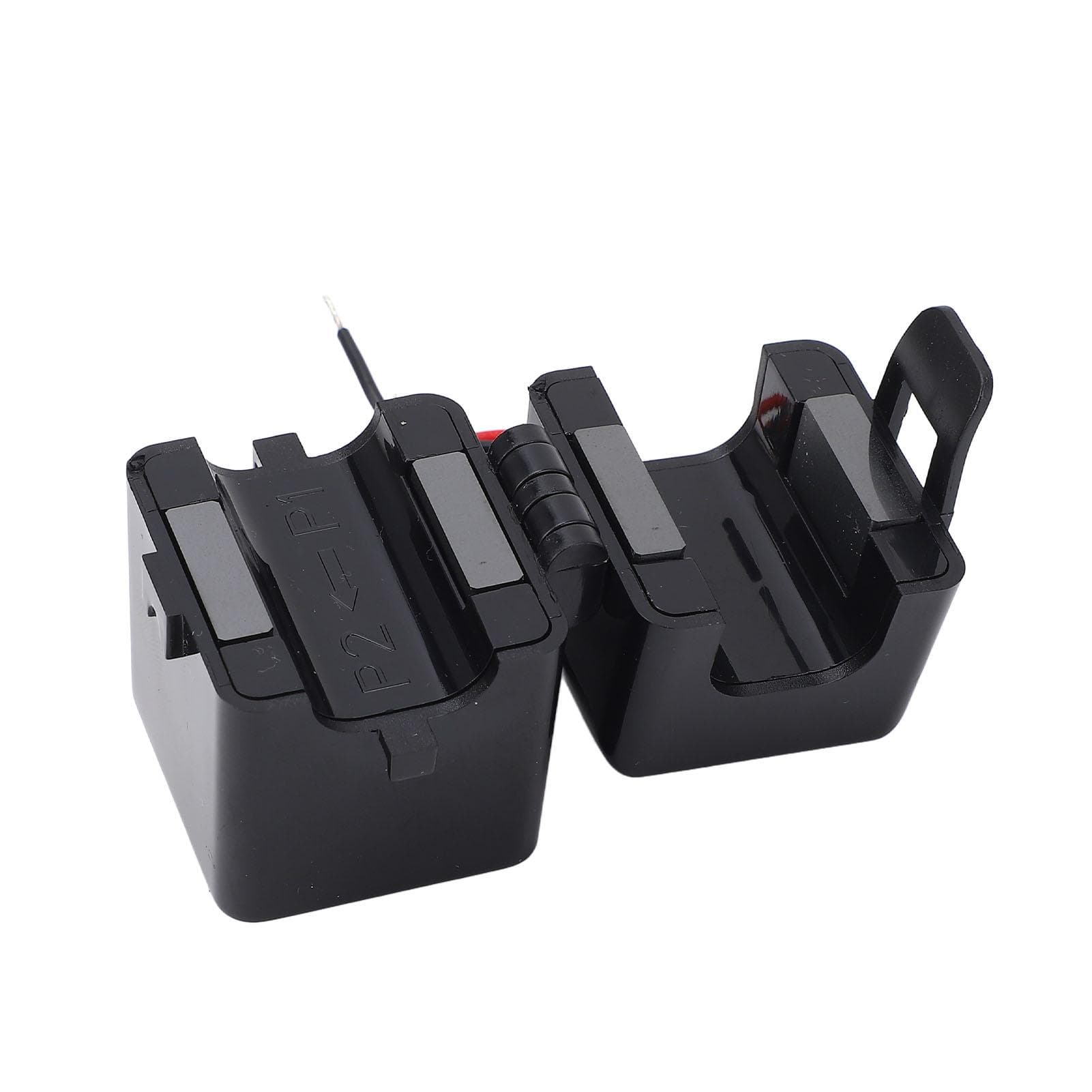

PZKHCT Split Base Current Transformer Coil Sensor for 100A Amp Energy Meter

About this item

• Descriptions: This is a mini split base current transformer; it s the smallest one compared to the similar products (output 100MA). Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability. Used for energy meter in special; AC 220v, 380v power supply can both be applied. Features: This is a mini split base current transformer; it s the smallest one compared to the similar products (output 100MA). The Diameter of inner hole is 16mm, the accuracy is less than 0.5 grade, Using snap joint structure, it can be fixed to the cable directly through nylon ties. Builtin input coil; small and light, easy to install. Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability. Specifications: Model: PZKHCT Environment temperature: 40 celsius ~+85 celsius Relative humidity: less than 90percent (40 celsius ) Working frequency: 50Hz~60Hz Insulation endurance grade: B grade (130 celsius ) Insulation resistance: >1000M Ohm normally Dielectric strength: can afford power frequency 1000V1minute Flame resistance: Conform to UL94Vo grade Internal resistance: 10 Ohm Measuring range: 0100A Weight:59g Application: 1. The current transformer is used for energy meter in special; AC 220v, 380v power supply can both be applied. 2. When you fix the energy meter, you don t need to cut off the power if you use this product. Package Included: 1 x Current Transformer Note: 1. The CT primary should be connected in series with the test current loop, the secondary should be as work in the shortcircuit state . 2. The secondary circuit is not allowed open circuit, so please do not install fuse. .This is a mini split base current transformer; it s the smallest one compared to the similar products (output 100MA) The Diameter of inner hole is 16mm, the accuracy is less than 0.5 grade Using snap joint structure, it can be fixed to the cable directly through nylon ties Builtin input coil; small and light, easy to install Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability
