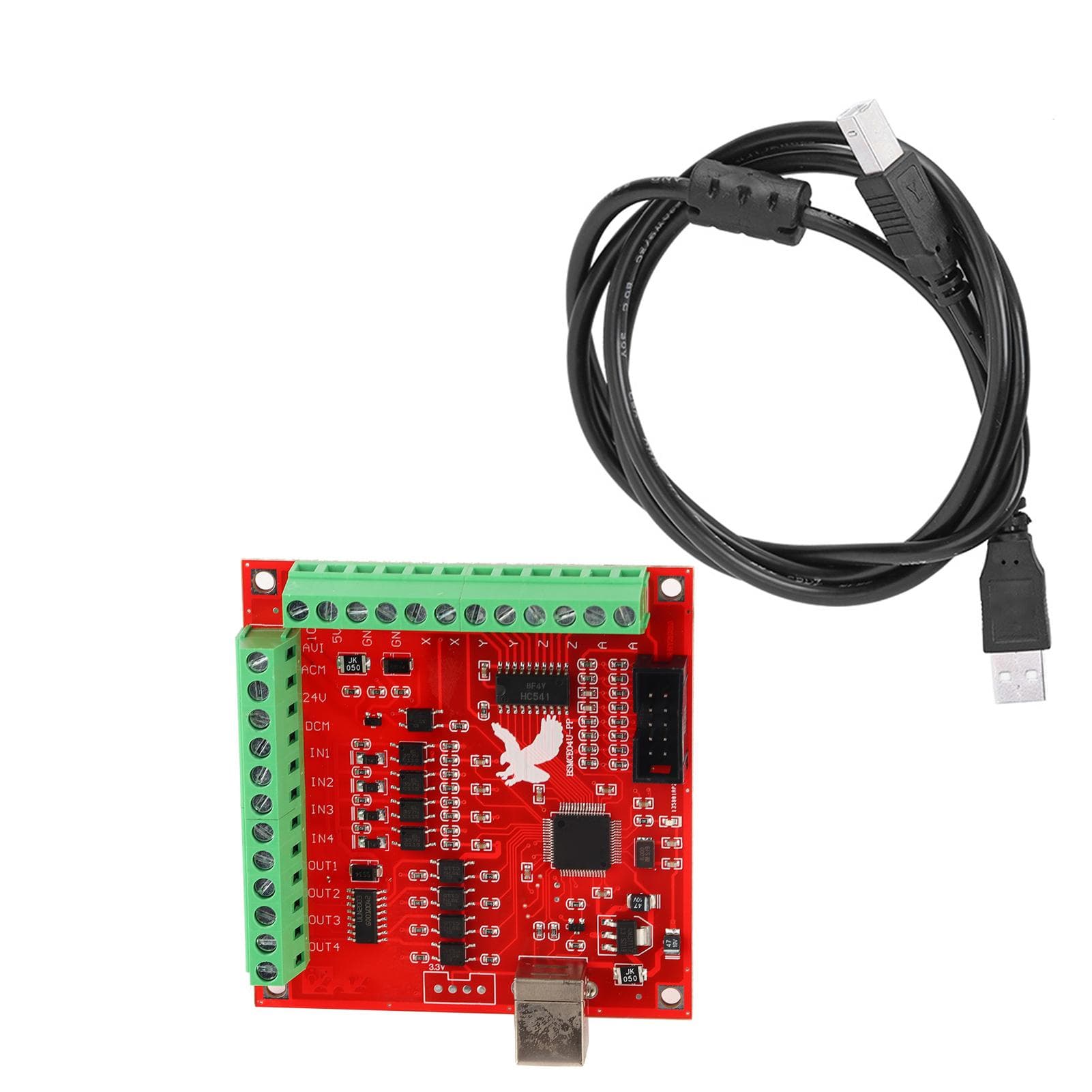

USB MACH3 100Khz Motion Controller Card Breakout Board for CNC Engraving

About this item

• Features: Support for 4axis linkage, you can connect four stepper motor drives or servo drives. Maximum steppulse frequency is 100KHz, which is suitable for the servo or stepping motor. Support automatic probe tool. Support emergency input. Support for limit switch. Support for connecting electronic hand wheel. Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable. Have 010V output port, you can use MACH3 software to control the spindle motor speed. 4 generalpurpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device. 4 generalpurpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device. Status LED, indicate connection status on the board. Specifications: Size: Approx. 8 x 7.7cm3.15 x 3.03inch Weight: 160g Package Included: 1 x USB CNC Controller Card 1 x USB Cable 1 x CD Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. .Maximum steppulse frequency is 100KHz, which is suitable for the servo or stepping motor Support automatic probe tool Support emergency input Support for limit switch Support for connecting electronic hand wheel
