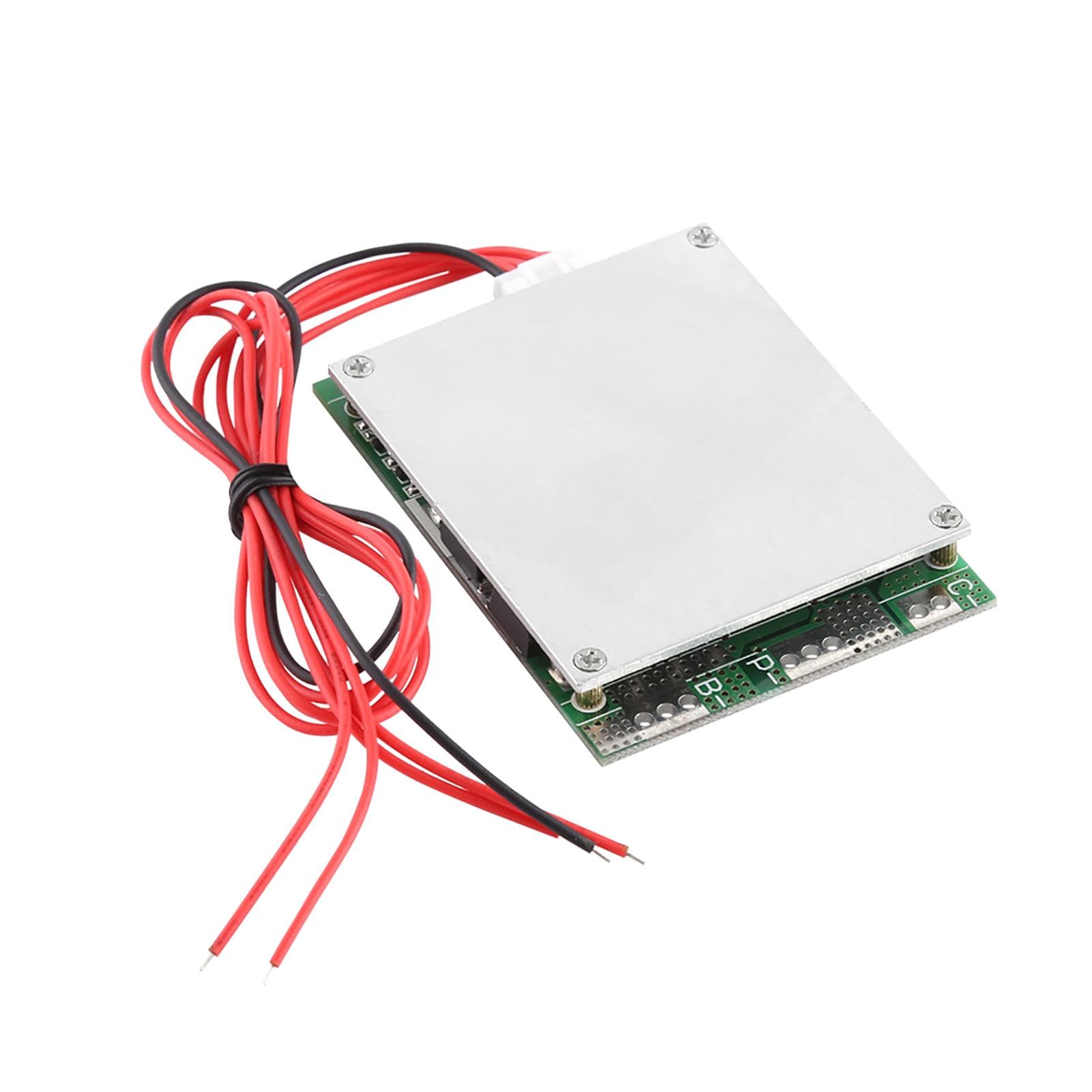

1pc 4S 100A 12V LiFePO4 Lithium Iron Phosphate LFP Battery Protection Board W Balance

About this item

• Features: Protection circuit board is the heart of battery pack, must to have to avoid battery pack from explosion, fire and damage. It will protect battery pack from overcharging, overdischarging overcurrent and short circuit. With equilibrium function to keep each cell in balance and good service life. Used for 4 series 12V LiFePO4 batteries, comes with 5P250mm wire. Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries. Specifications: Discharge Continuous Discharging Current 100(Maximum) A Instantaneous Discharge Current 150 A Charge Charging Voltage 15 V Charging Current 10(Maximum) A Overcharge Protect Overcharge Detect 3.75+0.05 V Protect Delay 0.5 S Overcharge release 3.65+0.1 V Balance Detect Voltage 3.60+0.05 V Release Voltage 3.60+0.05 V Balance Current 36+5 mA Overdischarge Protect Overdischarge Detect 2.0+0.1 V Overdischarge Detect delay 0.1 S Release Voltage 2.25+0.1 V Overcurrent Protect Detect Voltage 150 mV Detect Delay 9 mS Current Detect 200+10 A Release Condition Cut Load Shortcircuit Protect Protect Condition Load Short Circuit Detect Delay 250 uS Release Condition Cut Load Temperature Protect celsius Resistance Inner less than 25 m Ohm SelfConsumption Working Current less than 20 uA Sleep Current (when Overdischarge) less than 10 uA Working Temperature Range 30+80 celsius Size: 70*51.5*10mm 2.75*2.02*0.39 Package Includes: 1 x Battery Protection Board Note: The cable color is random, please take the real one as standard. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. .Protection circuit board is the heart of battery pack, must to have to avoid battery pack from explosion, fire and damage It will protect battery pack from overcharging, overdischarging overcurrent and short circuit With equilibrium function to keep each cell in balance and good service life Used for 4 series 12V LiFePO4 batteries, comes with 5P?250mm wires Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries
