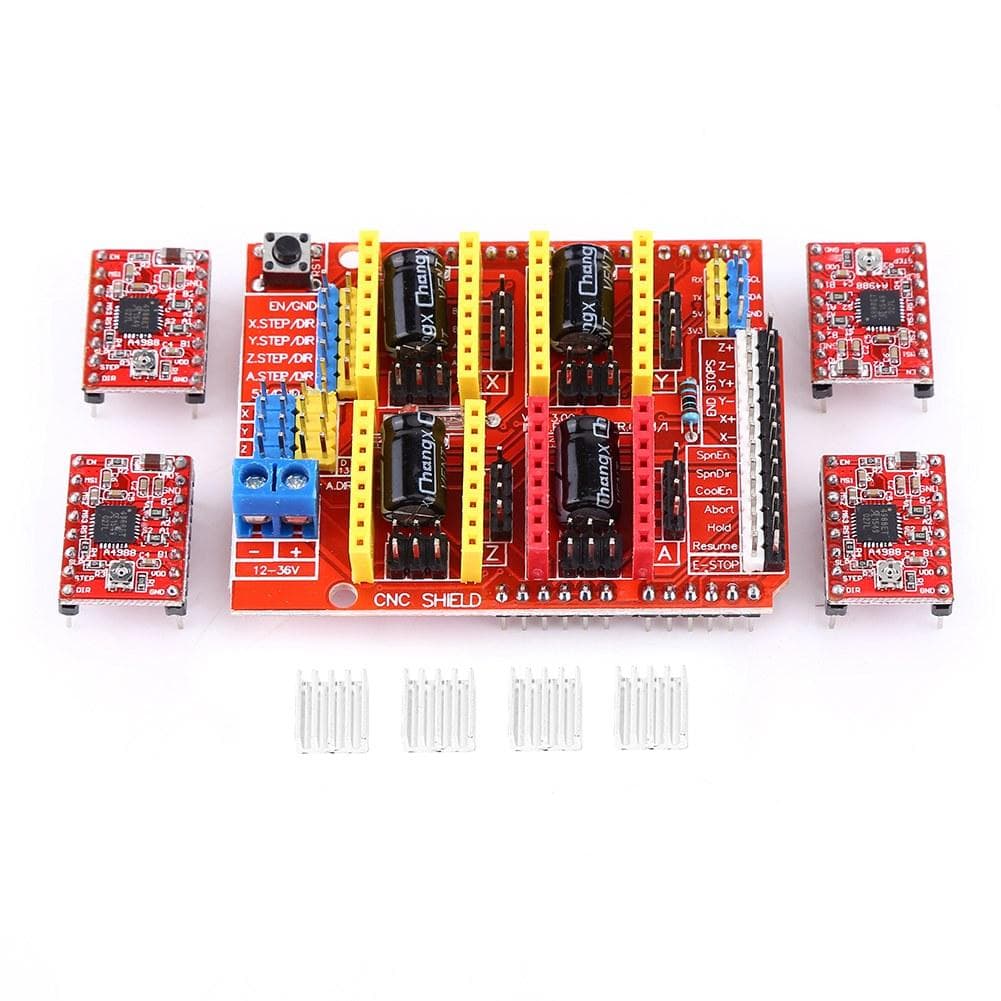

CNC Shield Expansion Board 4Pcs A4988 Stepper Motor Driver For Engraver 3D Printer

About this item

• Features: Use removable A4988 or DRV8825 compatible stepping driver. The extension board can be used for engraving machine or 3D printer driver. Compatible with GRBL 0.8. Opensource firmware, converting G code command into stepping signal. PWM spindle and direction pin, 4 shaft support (X, Y, Z, A you can copy X, Y, Z or use pin D12 and D13 customize firmware perform complete shaft 4). Compact design, stepping motor can connect 4 pin connectors or be soldered. This is a set of disassembled part, and you need basic soldering skills to solder them together. Specifications: CNC Expansion Board: Version: V3.0 Color: Red Size: 68 x 53 x 18mm 2.67 x 2.08 x 0.7 4pcs A4988 Driver: Color: Red Size: 20 x 15mm 0.78 x 0.59 Thermal Shutdown Circuit: Yes Cross Current Protection: Yes Ground Fault Protection: Yes Short Circuit Protection: Yes Five Step Modes: Full, 12, 14, 18 and 116 Mix with slow current attenuation model. Internal UVLO and low RDS (on) output. Automatic current attenuation mode DetectionSelect. Phasein rectifier, low power consumption. Warning: Connecting or disconnecting stepping motor while driver is powered on might damage driver. 4pcs Heat Sinks: Size: 8 x 8mm 0.31 x 0.31 Color: White Package Includes: 1 x V3 Extension Board 4 x Drivers 4 x Heat Sinks .Use removable A4988 or DRV8825 compatible stepping driver The extension board can be used for engraving machine or 3D printer driver Compatible with GRBL 0.8. Open?source firmware , converting G code command into stepping signal PWM spindle and direction pin, 4 shaft support (X, Y, Z, A ? you can copy X, Y, Z or use pin D12 and D13 customize firmware perform complete shaft 4) Compact design, stepping motor can connect 4 pin connectors or be soldered
