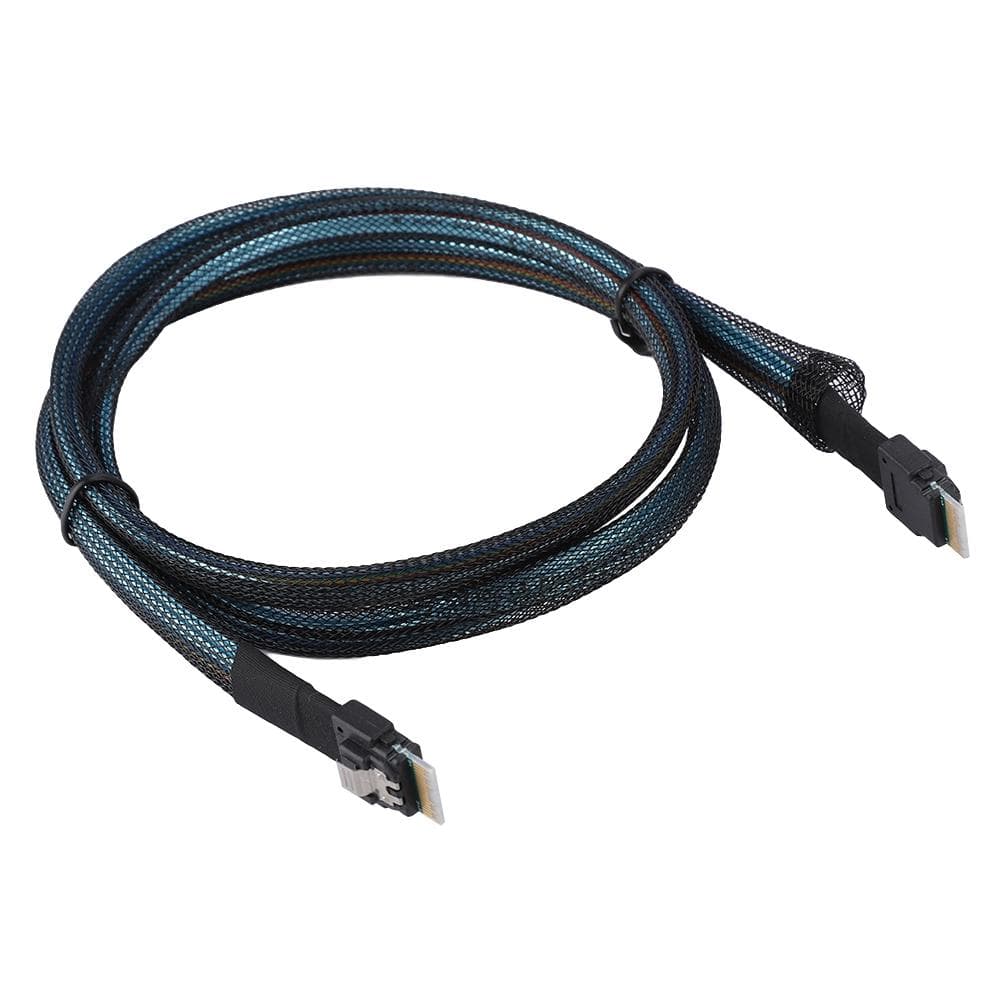

Cabledeconn Slim SAS 38pin SFF8654 to SFF8654 Server HDD Data Transmission Cable 1M

About this item

• Features: 1. Smaller size connectors and cables save space on the equipment. 2. Provide fourchannel signal transmission according to industry standards. 3. Data rate: 12 Gbps per channel SAS. 4. Compliant with SAS3.0, SlimSAS SFF8654 specification. 5. Applications: Servers, data storage, workstations. Specification: Brand: Cabledeconn Cable length: 1m 3.28ft Mechanical behavior: Combining ability: up to 55.5N Uncooperative force: up to 49N Rated durability cycle: a minimum of 250 cycles Electrical performance: Voltage: 30VDC per touch SlimSAS 4i plug: up to 80mohm. Initially, the pressure test was maximum 20mohm. Dielectric withstand voltage: minimum 300 VDC for 100 ms Insulation resistance: the minimum value between adjacent pins is 10M Ohm Signal integrity: Paired connector impedance: 100 + 10percent ohms Common mode impedance: in accordance with SAS3.0 specification Insertion loss: in accordance with SAS3.0 specification Maximum crosstalk: in accordance with SAS3.0 specification Product environmental compliance: RoHS2.0: Compliance with standards China RoHS: Yes REACH SVHC: Yes Package list: 1 * Data Cable Smaller size connectors and cables save space on the equipment. Provide fourchannel signal transmission according to industry standards. Data rate: 12 Gbps per channel SAS. Compliant with SAS3.0, SlimSAS SFF8654 specification. Applications: Servers, data storage, workstations.
