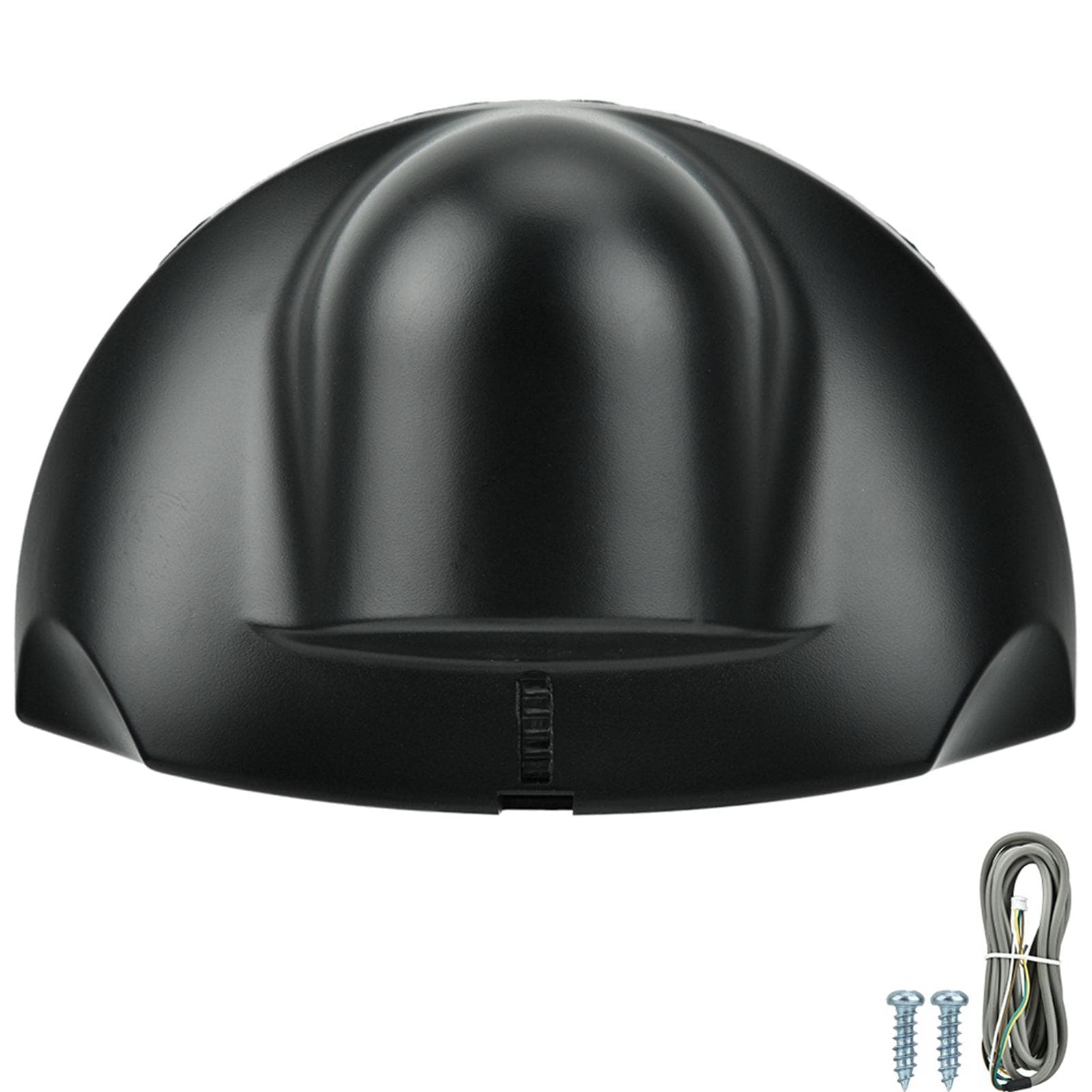

1224V Automatic Door 24.125Ghz Microwave Motion Sensor Autodoor Sensors

About this item

• Features: 100percent brand new and high quality . It uses advanced motion tracking and 24.125GHz microwave sensor technology. Optimizes sensors for all automatic door applications. Adjust the sensor detection area by the four directions: left, right, up and down. It is widely used in public places such as automatic doors, elevators, such as supermarkets, ATMs, airports, etc. Specifications: Condition: Brand New Material: ABS plastic Color: Black Technology: Microwave and Microwave Processors Frequency: 24.125Ghz Transmit Power: 20dBm EIRP Transmission Frequency Density: 5mW cm2 Installation Height: up to 3 Meters 9.8 feet Installation Angle: 0~90 Degrees (Longitudinal), 30~ + 30 Degrees (Horizontal) Detection Mode: Exercise Minimum Detection Speed: 5cm s Power: 2W (VA) Detection Range: 4 (Width) * 2 (Depth) m (Mounting Height: 2m) Maximum Voltage: 42AC 60V DC Maximum Current: 1A Maximum Switching Power: 30W (DC) 60VA (AC) Retention Time: 0.5S Guide Line: 2.5 m 8.2 ft Working Temperature: 20 degrees C ~ + 55 degrees C Protection Level: IP54 Antijamming Performance: R&TTE1995 5 EC, EMC 89366 EEC Power Supply Voltage: 1224V AC DC Packing Size: 15.8 * 11.5 * 6cm6.2 * 4.5 * 2.4in Package List: 1 * Microwave Sensor 1 * Connection Cable 1 * Positioning Jam 2 * Screws 1 * Instruction Manual Note: 1. Please allow 13cm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard. .100percent brand new and high quality . It uses advanced motion tracking and 24.125GHz microwave sensor technology. Optimizes sensors for all automatic door applications. Adjust the sensor detection area by the four directions: left, right, up and down. It is widely used in public places such as automatic doors, elevators, such as supermarkets, ATMs, airports, etc.
