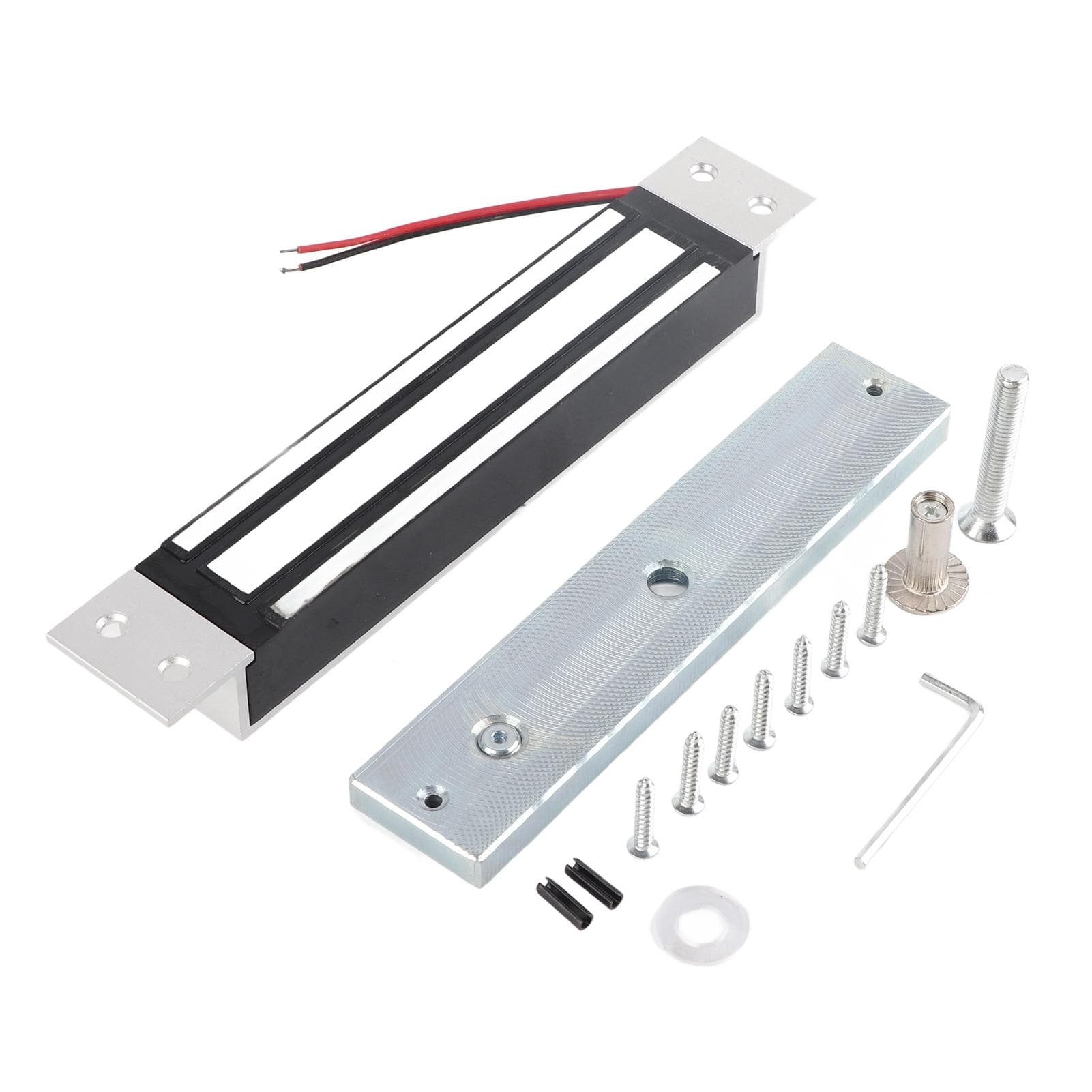

DC12V 280kg600Lbs Electric Magnetic Lock Holding Force Electromagnet Lock Secure NC Mode

About this item

• This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. When power off, the door will open. It is suitable for wooden door, glass door, metal door, fireproof door,etc. Features: Secure NC mode: unlocked when power off, locked when power on. Suitable for: wooden door, glass door, metal door, fireproof door. Anti magnetic design, wear resistant material manufacturing. High quality electromagnetic material vacuum treatment, double lock body insulation treatment. The aluminum housing is made of high strength alloy and anodized. Comply with environmental protection requirements, low power consumption, super quiet design, no noise during operation. Specifications: Locking Mode: NC Working Voltage: DC 12V Working current: 12V 320mA Material: Aluminum alloy shell + iron plate Holding Force: 280kg(600Lbs) Lock Size: Approx. 22.6*3.9*2.8cm 8.9*1.5*1.1in Plate Size: Approx. 18.1*3.8*1.2cm7.1*1.5*0.5in Package Weight: Approx. 1700g60oz Package List: 1* Magnetic Door Lock 1* Mounting Kit 1* User Manual Note: 1. This product produces a larger magnetic field when working. Do not approach the magnetic sensitive element. 2. The working voltage is 12VDC. If 24VDC is used, the temperature of the lock body will be too high or the control circuit will be damaged. 3. Be careful to check and remove foreign body between lock body and magnetic iron block in time to maintain good suction. .Secure NC mode: unlocked when power off, locked when power on. Anti magnetic design, wear resistant material manufacturing. The aluminum housing is made of high strength alloy and anodized. Comply with environmental protection requirements, low power consumption, super quiet design, no noise during operation. With wide applications,which is suitable for: wooden door, glass door, metal door, fire?proof door.
