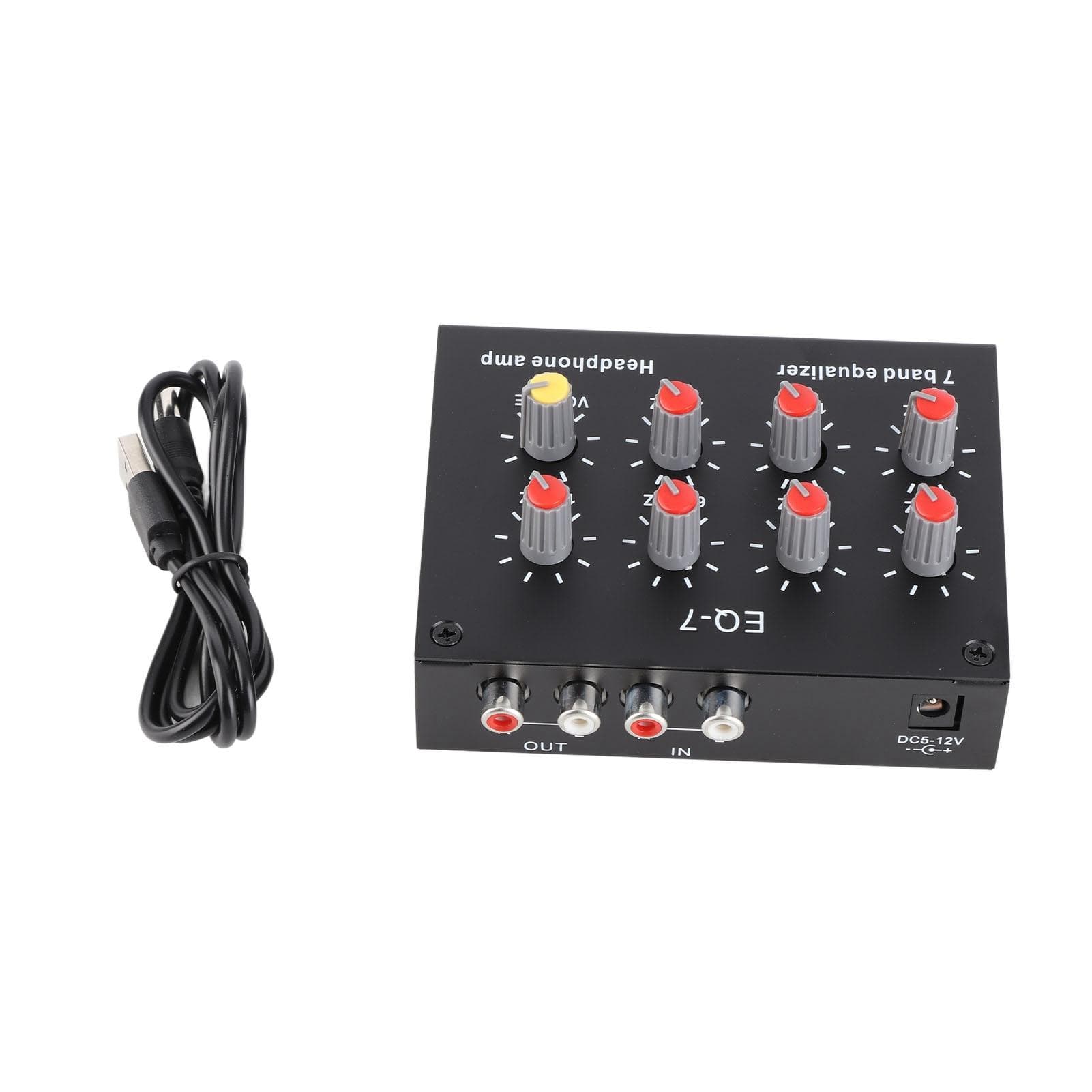

7 Band Sound Equalizer 12dB High Bass Adjustment Dual Channel Digital Equalizer white

About this item

• Feature: 1. Control Range: 7 band equalization circuit control range + 12dB, equalization band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ, by TI or ST original TL074 composition. 2. Basic Parameters: 7 band sound equalizer preamplification gain, 4580 classic op amp provides 5 times amplification (14dB); input impedance 20K, output impedance 600 ohms. 3. Compatible with Headphones: sound equalizer ear amplifier part of the NE5532 composed of type 47 headphone driver circuit, easy to drive all types of headphones, adjustable high and low. 4. 3.5mm Interface: 3.5mm input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a group lotus interface is available. 5. Aluminum Alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength, corrosion resistance, stable performance, DC5V?12V power supply, dual channel sound. Specification: Item Type: 7 Band Sound Equalizer Material: Aluminum Alloy Power Supply: DC5V12V Interface Specification: 5.5x2.1 Input Impedance: 20K Output Impedance: 600 Ohms Equalization Circuit Control Range: +12dB Equalization Frequency Band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ. Package List: 1 x 7 Band Sound Equalizer1 x Supply CableControl Range: 7 band equalization circuit control range + 12dB, equalization band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ, by TI or ST original TL074 composition. Basic Parameters: 7 band sound equalizer preamplification gain, 4580 classic op amp provides 5 times amplification (14dB); input impedance 20K, output impedance 600 ohms. Compatible with Headphones: sound equalizer ear amplifier part of the NE5532 composed of type 47 headphone driver circuit, easy to drive all types of headphones, adjustable high and low. 3.5mm Interface: 3.5mm input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a group lotus interface is available. Aluminum Alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength, corrosion resistance, stable performance, DC5V?12V power supply, dual channel sound.
