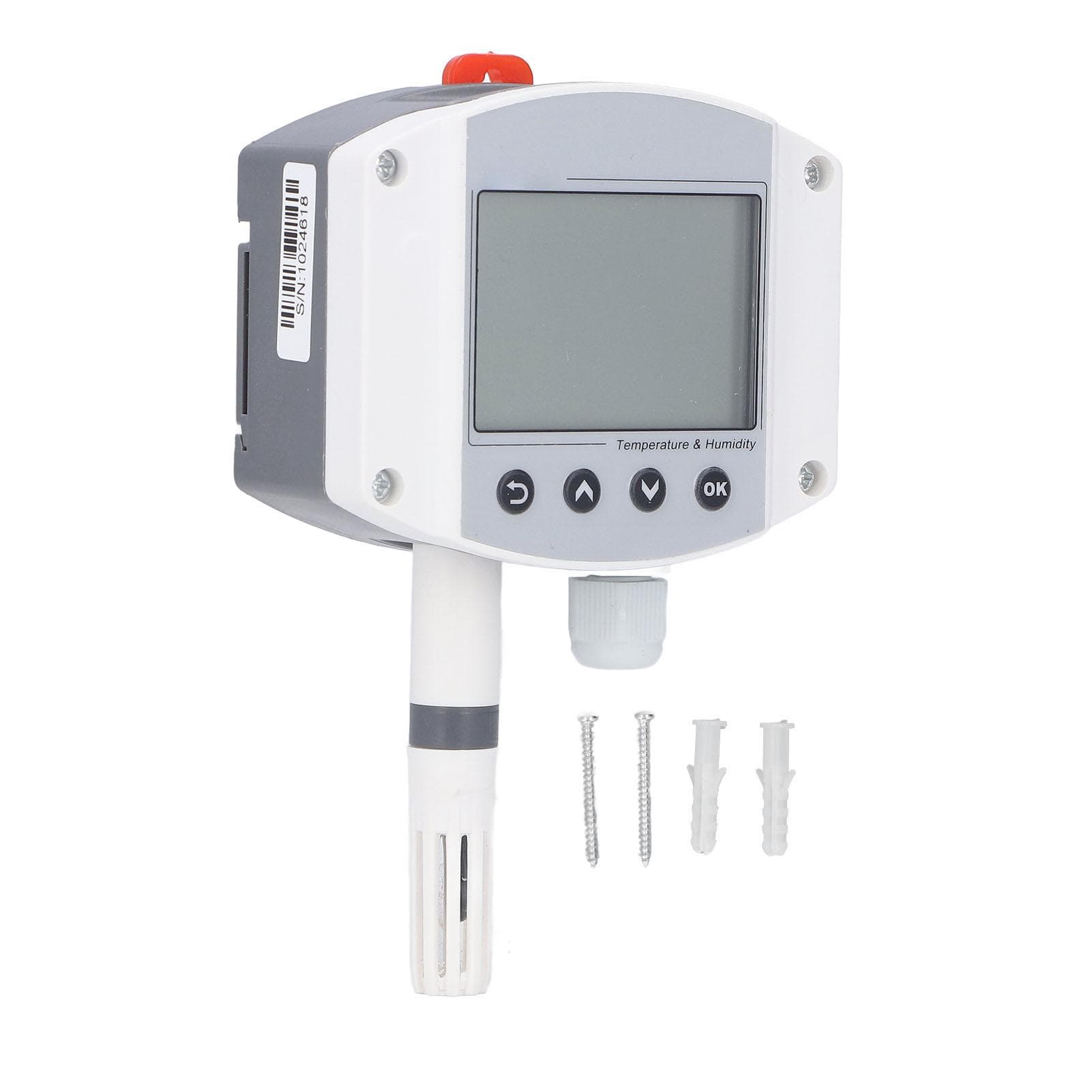

485 Temperature Humidity Transmitter High Accuracy Temperature Humidity Sensor with LCD Display

About this item

• Feature: 1. SUPERIOR PERFORMANCE: High accuracy temperature and humidity measurement unit, long term stability, small volume. 2. STANDARD PROTOCOL: Standard communication protocol, communication address and baud rate can be set with special 485 circuit. 3. EASY TO INSTALL: Wall mount or rail mount. High dustproof grade (IP65). 10~30V wide voltage range power supply 4. WITH DIGITAL DISPLAY: LCD display, beautiful and generous. Button to set parameters, easy to operate. 5. PREMIUM ABS MATERIAL: High quality ABS material, sturdy and durable, long service life. Specification: Item Type: Temperature Humidity Transmitter Material: ABS Weight: Approx. 178g/6.3oz Size: Approx. 147x88x41mm / 5.8x3.5x1.6in Screen Size: Approx. 51x36mm / 2.0x1.4in DC Power Supply (Default): DC 10-30V Maximum Power Consumption: 0.4w A Accuracy: Humidity: +/-2percent RH(60percent RH,25 celsius ) Temperature: +/-0.4 celsius (25 celsius ) B Accuracy: Humidity: +/-3percent RH(60percent RH,25 celsius ) Temperature: +/-0.5 celsius (25 celsius ) (Default) : -20 degrees C To +60 degrees C, 0percent rh To 95percent rh (Non Condensing) - 40 celsius ~ + 120 celsius Default: - 40 celsius ~ + 80 celsius Transmitter Circuit Operating Temperature and Humidity: 0percent RH-100percent RH Probe Operating Temperature: Modbus RTU Protocol Probe Working Humidity: 485 Signal Agreement: 0.1 celsius Output Signal: 0.1percent RH Temperature Display Resolution: 1s Humidity Display Resolution: 70mm T/h Refresh Time: Humidity: less than 1percent RH/y Temperature: less than 0.1 celsius /y Response Time: Humidity: less than 8s (1m/s Wind Speed) Temperature: less than 25s (1m/s Wind Speed) Parameter Settings: Can Be Directly Modified Through Software Settings Or Buttons Product Model: RS: Code WS: Temperature and Humidity Sensor N01-485 Communication (Modbus RTU Protocol) 2D-LCD Industrial Wall Hanging (Lquid Crystal Display) Special Wiring: Circuit Identification Specification: Power Supply VCC V+(10~30V DC) Power Supply GND V- Communication: 485 A 485 - A 485B 485-B Basic Communication Parameters: Password: 8 Bit Binary Data Bit: 8 Bits Parity Bit: Does Not Exist Stop Bit: 1 Person Error Checking: CRC (Cri Cyclic Redundancy Check Code) Baud Rate: The value can be 2400bit/s, 480 bit/s, or 9600bit/s. The default value is 480 bit/s Wiring Instructions: Power Supply and 485 Signal Wide Voltage Power Input Can Be 10~30V. When Connecting the 485 Signal Cable, Ensure That the Two Lines A\b Cannot Be Reversed, and the Addresses of Multiple Devices on the Bus Cannot Conflict celsius ) Temperature: +/-0.5 celsius (25 celsius ) (Default) : -20 degrees C To +60 degrees C, 0percent rh To 95percent rh (Non Condensing) - 40 celsius ~ + 120 celsius Default: - 40 celsius ~ + 80 celsius Transmitter Circuit Operating Temperature and Humidity: 0percent RH-100percent RH Probe Operating Temperature: Modbus RTU Protocol Probe Working Humidity: 485 Signal Agreement: 0.1 celsius Output Signal: 0.1percent RH Temperature Display Resolution: 1s Humidity Display Resolution: 70mm T/h Refresh Time: Humidity: less than 1percent RH/y Temperature: less than 0.1 celsius /y Response Time: Humidity: less than 8s (1m/s Wind Speed) Temperature: less than 25s (1m/s Wind Speed) Parameter Settings: Can Be Directly Modified Through Software Settings Or Buttons Product Model: RS: Code WS: Temperature and Humidity Sensor N01-485 Communication (Modbus RTU Protocol) 2D-LCD Industrial Wall Hanging (Lquid Crystal Display) Special Wiring: Circuit Identification Specification: Power Supply VCC V+(10~30V DC) Power Supply GND V- Communication: 485 A 485 - A 485B 485-B Basic Communication Parameters: Password: 8 Bit Binary Data Bit: 8 Bits Parity Bit: Does Not Exist Stop Bit: 1 Person Error Checking: CRC (Cri Cyclic Redundancy Check Code) Baud Rate: The value can be 2400bit/s, 480 bit/s, or 9600bit/s. The default value is 480 bit/s Wiring Instructions: Power Supply and 485 Signal Wide Voltage Power Input Can Be 10~30V. When Connecting the 485 Signal Cable, Ensure That the Two Lines A\b Cannot Be Reversed, and the Addresses of Multiple Devices on the Bus Cannot Conflict. Package List: 2 x Screw 2 x Expansion Tube 1 x Temperature Humidity Transmitter1 x Instruction Note: Manual measurement, please allow some error.
