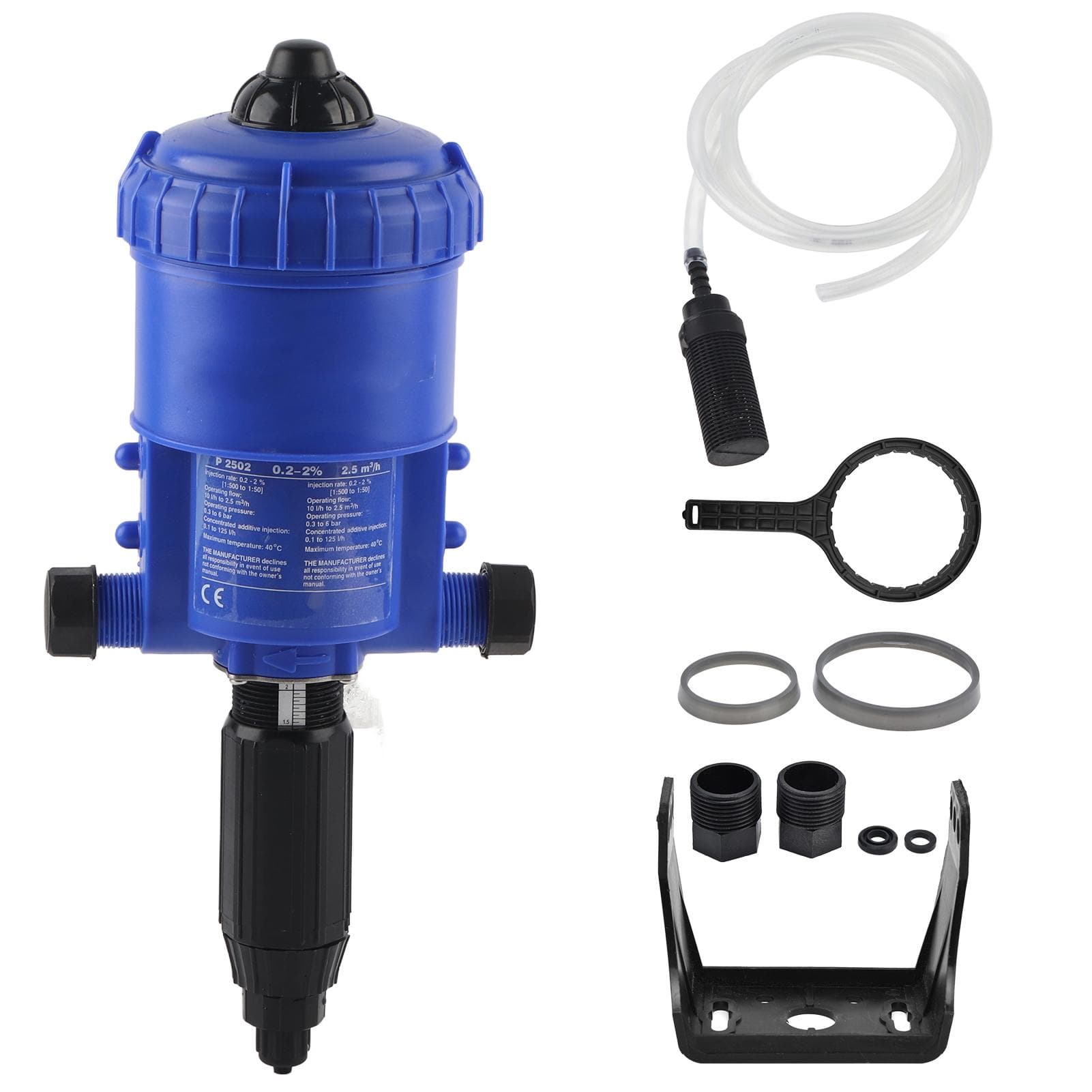

G3/4 to G1 Male Thread Fertilizer Injector Chemical Liquid Doser Dispenser Dosing Pump 0.2-2percent

About this item

• Feature: 1. It is installed directly on the water supply pipeline, and the water pressure is used as the power to work, without the need to power on or start the motor. 2. The accurate automatic dosing ratio is not affected by the pressure fluctuation of the water flow; the amount of solution injected is proportional to the amount of water flowing into the pipeline, and the external adjustment is flexible and convenient. 3. Complete quantitative dosing and mixing function. Continuous proportional injection; accurate proportional tracking adjustment; automatic uniform dilution. 4. The outer shell is made of high?quality PP, wear?resistant, UV?resistant, and resistant to aging. Fertilizer injector has high accuracy and long service life. 5. The pump body adopts anti?corrosion design to ensure the availability of solution and increase the service life. Specification: Item Type: Fertilizer Injector Material: PP Weight: Approx. 1600g / 56.4oz Color: Blue Product Size: Approx. 33x17cm / 13.0x6.7in Additive Inlet Pipe Outer Diameter: Approx.12mm / 0.5in Water Inlet and Outlet Thread: G3/4 to G1 Male Thread (G1 adapter is not installed on the dosing device) Proportion Range: 0.2-2percent (1:5-1:500) Flow Range: 10L/H-2500L/H, 0.04-11gpm Working Water Pressure: 0.34-6.2bar, 5-90psi Continuous Operation: >100T Working Temperature: 1-45 celsius Model: P2502 Uses: agricultural irrigation, equipment maintenance, gardening flowers, animal husbandry, environmental protection water treatment, industrial disinfection, car wash foam, food processing, industrial hygiene, printing and other industries that require constant ratio dilution. Application of Dosing Device: 1. The type and dosage of medicines can be changed at any time. 2. It is convenient and quick to add medicine in emergency. 3. The customer prepares the disinfectant by himself and adds the disinfectant in the disinfection channel to disinfect the drinking water and livestock and poultry water pipelines. 4. Solve the problems of precipitation and pollution in the water storage tank. 5. Automatic spray system, used to replace the water tank on the sterilizer. 6. It can be used for sanitation and disinfection of water pipes and sinks, water network cleaning, odor treatment, equipment, maintenance, conveyor belt disinfection, livestock and poultry drinking water treatment, acidification treatment at any time. Maintenance: After the proportional pump has been working for two years, the two sealing rings on the piston need to be replaced. Unscrew the upper cover of the proportional pump to take out the piston, remove the two large and small seals on the piston with a vise ring, and install it (it is recommended to install two large and small seals). The sealing rings are placed together in 90 degree water soaked for 2 minutes and installed on the piston by hand.. Package List: 1 x Fertilizer Injector2 x G1 Adapter Accessories4 x Accessory Circle1 x Transparent Tube with Filter1 x Bracket1 x English Manual1 x Wrench
