Battery Power Monitor Multifunctional Voltage Current Coulometer APP Control 0?120V 0?400A

About this item

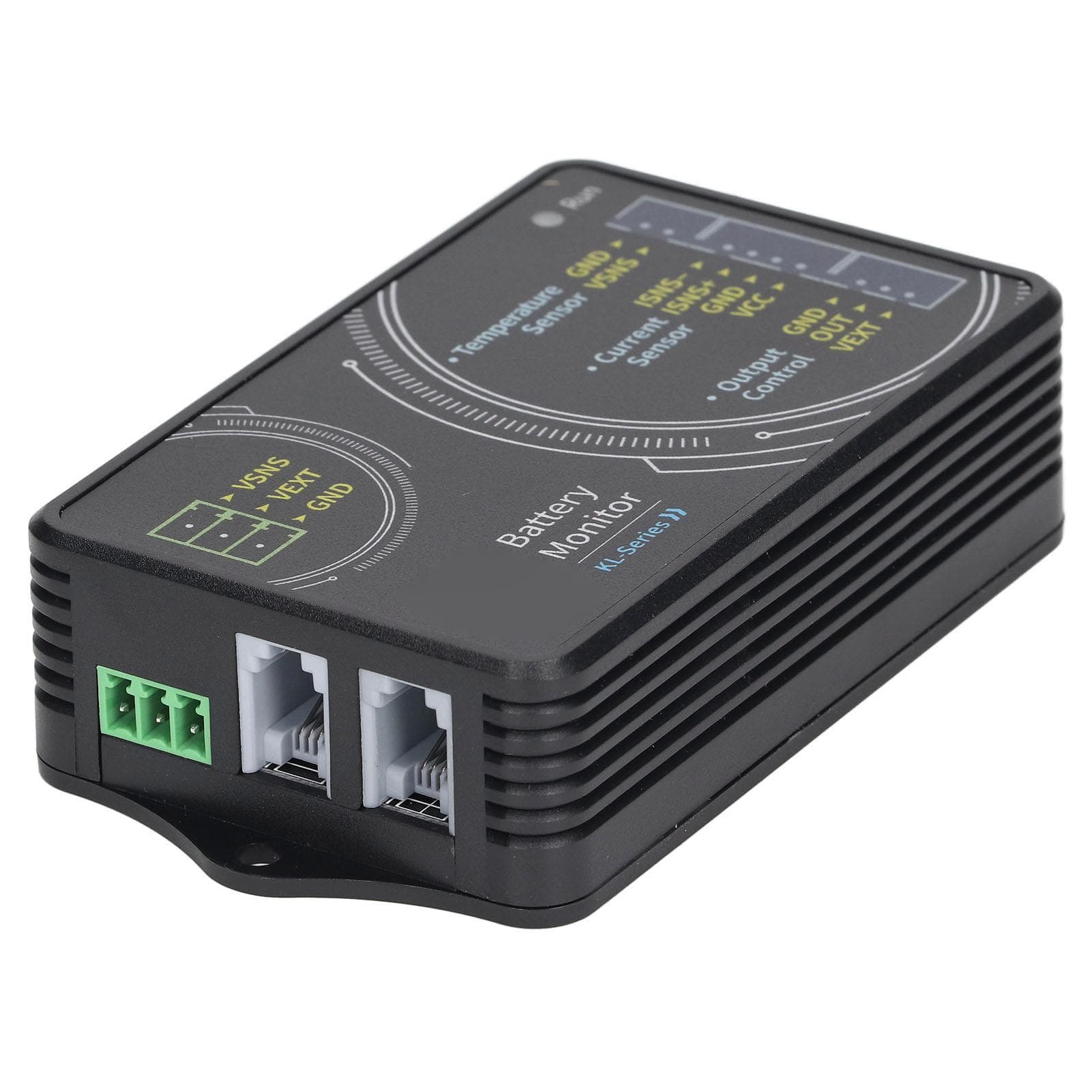

• Feature: 1. MULTIPLE FUNCTIONS: This battery coulomb counter can be used to measure parameters such as voltage, current, power, charge and discharge capacity, WH and time. 2. CIRCUIT PROTECTION: The parameters can be set to realize various protection functions such as overvoltage, undervoltage, overcurrent, overpower, and overtemperature. 3. AUTO IDENTIFICATION: This battery coulometer can automatically identify the direction of the current and monitor the battery capacity in real time. 4. APP CONTROL: Install the supporting mobile APP, view the measured data through Bluetooth, and control the instrument and firmware upgrade through the APP. 5. GOOD PERFORMANCE: The battery monitor has a wide measurement range, high accuracy and resolution, accurate measurement and strong practicability. Specification: Item Type: Battery Monitor Model: KL140F Material: ABS Application: Electric power value detection Control Method: Mobile APP Sampling Method: Sampler Voltage Measurement Range (External Power Supply): 0~120V Voltage Measurement Range (Self Power Supply): 10V~120V Voltage Resolution: 0.01V Current Measurement Range: 0~400A Current Resolution: 0.1A Relay: No relay is provided, you need to configure it yourself Temperature Measurement Range: 20 celsius ~120 celsius Capacity Display Range: 0percent ~100percent Power Measurement Range: 0~72KW Power Resolution: 0.01W AH Measurement Range: 0~9999.99AH Capacity Resolution: 0.001AH WH Measurement Range: 0~9999.99kWH WH Resolution: 0.01WH Bluetooth Communication Distance: Maximum Approx. 10 meter 32.8ft (barrier free) Voltage Accuracy: +2percent +3 words Current Accuracy: +5percent +10 words Sampling Rate: 1 timesecond Measurement Board Power Consumption: About 0.4W Over Power Protection: 0~99999.99W Negative Overcurrent Protection: 0~50A100A400A600A Forward Overcurrent Protection: 0~50A100A400A600A Overvoltage Protection: 0~120V600V Under Voltage Protection: 0~120V600V External Over Temperature Protection: 0 celsius ~120 celsius Mobile Terminal Control: 1. For Android mobile APP Instruction (1) Download the APP (2) Mobile App software installation. This software only supports for Android 5.0 and above systems. During the installation process, you will apply for positioning services. Please agree and open the positioning services. This manual corresponds to software version 1.0, and different versions may be slightly different. It is recommended to upgrade to the latest software for a better user experience. 1. For iPhone mobile APP Instruction (1) Download the APP and search for KL series in the software store to download. (1) Mobile APP software installation, the software only supports for iOS 9.0 and above systems, the software will be accessed when the software is connected to Bluetooth for the first time, please agree to access Bluetooth. This manual corresponds to software version 1.0, and different versions may be slightly different. It is recommended to upgrade to the latest software for a better user experience. (3) Software update, you can get the latest software from the software store. The for iOS software version corresponding to the current manual is 1.0. Wiring : 1. Self Powered Wiring Mode: If the voltage range of the battery under test is between 10120V, the self powered wiring method can be used. First, turn the power supply selection interface switch to 2W, and then connect the positive pole of the battery to the battery. At the power supply interface Vsns, this line does not need to be particularly thick, 12.5 squarelines can be used, be careful not to connect the positive pole of the battery incorrectly. The negative electrode of the battery is connected to the screw marked with the battery GND mark on the sampler. The negative electrode of the charger and the negative electrode of the load are connected to another screw of the sampler. It is better to use a copper nose to connect firmly; The current color is green, the remaining capacity value increases, and the current color is sky blue during discharge, and the remaining capacity value decreases. 2. External Power Supply Wiring Method: The voltage range of external power supply measurement is 0120V. First, turn the power supply selection interface switch to 3W, connect the positive pole of the external power supply to the power supply interface VEXT, and connect the negative pole of the external power supply to GND; Then connect the positive pole of the battery to the measurement interface Vsns in the power supply interface when wiring; note that the positive and negative poles of the external power supply should not be connected incorrectly or reversely. The negative electrode of the battery is connected to the screw marked with the battery GND mark on the sampler. The negative electrode of the charger and the negative electrode of the load are connected to another screw of the sampler. It is better to use a copper nose to connect firmly; The current color is green, the remaining capacity value increases, and the current color is sky blue during discharge, and the remaining capacity value decreases. 3. Connection Method of External Power Supply to Relay: The working power of the relay is provided by the external power supply. If the relay is connected, an external power supply with the same working voltage as the relay should be provided. Connect the control ports of the relay to the OUT and VEXT of the Output Control of the measurement module respectively; connect the positive pole of the external power supply to the VEXT of the Output Control, and the negative pole of the external power supply to GND; be careful not to connect the positive and negative poles of the battery and external power supply wrongly or reverse. When the relay is closed, the indicator light will be on, and it will be off as a prompt when it is disconnected. The negative electrode of the battery is connected to the screw marked with the battery GND mark on the sampler. The negative electrode of the charger and the negative electrode of the load are connected to another screw of the sampler. It is better to use a copper nose to connect firmly; The current color is green, the remaining capacity value increases, and the current color is sky blue during discharge, and the remaining capacity value decreases. . Package List: 1 x Measurement Board1 x Sampler2 x Circuit Board1 x Accessories Pack (Includes: 1 x Temperature Sensor, 1 x 3P Cable, 1 x 4P Cable, 1 x Power Socket, 4 x Screws, 4 x Small Sockets)1 x User ManualMULTIPLE FUNCTIONS: This battery coulomb counter can be used to measure parameters such as voltage, current, power, charge and discharge capacity, WH and time. CIRCUIT PROTECTION: The parameters can be set to realize various protection functions such as overvoltage, undervoltage, overcurrent, overpower, and overtemperature. AUTO IDENTIFICATION: This battery coulometer can automatically identify the direction of the current and monitor the battery capacity in real time. APP CONTROL: Install the supporting mobile APP, view the measured data through Bluetooth, and control the instrument and firmware upgrade through the APP. GOOD PERFORMANCE: The battery monitor has a wide measurement range, high accuracy and resolution, accurate measurement and strong practicability.
