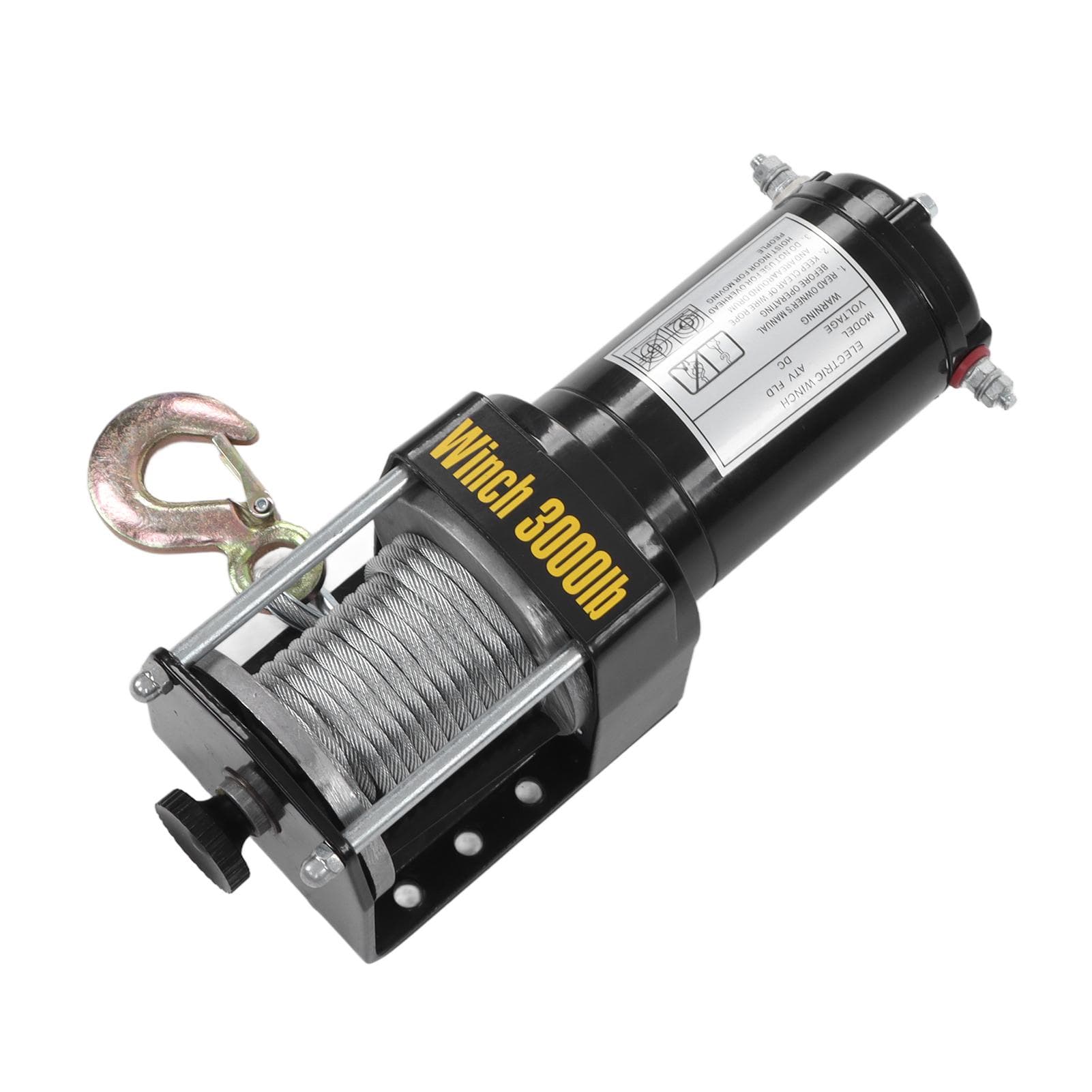

Electric Winch Kit 24V with Remote Steel Cable Mini Bracket 3000lbs for ATV UTV Accessories

About this item

• Feature: 1. EXCELLENT COPPER CORE TERMINAL: The winch adopts copper core terminal, which is not easy to corrode compared with iron terminal, possess good conductivity, low resistance and heat generation 2. STRONG AND TOUGH WIRE ROPE: Electric winch adopt multi strand wound solid wire rope, strong enough, more wear resistant 3. WINCH SEPARATION AND REUNION: Open the separation and reunion shell and manually release the rope, each model is with a separation and reunion on the right side of the machine 4. ALLOY STEEL HOOK: After high temperature quenching treatment, the tensile strength is stronger, the surface treatment is not easy to rust, and the buckle design prevent the hook from disengaging 5. EASY TO CONTROL AND INSTALL: Electric winch kit equipped with remote to control, and screws, nuts, washers for easy installation Specification: Item Type: Electric Winch Kit Material: Alloy steel, stainless steel, copper Rated Pull: 3000lbs (1361kg) Motor: 1.1kw1.4hp Gear Ratio: 150 to 1 Transmission Mode: Planetary gear transmission Wire Rope: Diameter: Approx. 4.8mm 0.19in, Length: Approx. 6meter 19.69ft Roll Size(diameter x length): Approx. 31.5 x 72mm 1.24 x 2.8in Braking Device: Automatic brake Dimension(L x W x H): Approx. 299 x 100 x 105mm 11.8 x 4 x 4.1in Pulling force, speed, current Pulling force Ibs(kg) Speed ftmin(mmin) Current(A) 0 10.8(3.3) 14 1000(454) 8.2(2.5) 60 2000(907) 3.6(1.1) 100 3000(1360) 2.6(0.8) 130 Layer pulling force and layer rope capacity Layer Rated pulling force lbs(kgs) Wire rope length on drum ft(m) 1 3000(1361) 4.6(14) 2 2320(1052) 11.5(3.5) 3 1890(858) 17.1(5.2) 4 1590(720) 24.6(7.5) 5 1380(620) 34.4(10.5) . Package List: 1 x Electric Winch1 x Controller2 x Screw2 x Nut2 x Washer1 x User Manual Note: 1. Observe the work environment. Do not use mechanical or power tools in wet locations. Don t get in the rain. Do not use power tools in the presence of flammable gases and liquids.2. Keep away from children. Do not allow children to operate machines, tools or cables.3. Dress correctly. Do not wear loose clothing and jewelry that can get caught on moving parts. It is recommended to wear protective, non conductive clothes and non slip shoes during operation. Wear guards to hide long hair.4. Do not operate tools while taking wine and drugs.5. Keep your body and hands away from the fair during operation.6. Do not lift objects vertically. The winch can only be used sideways.7. On the winch drum, the wire rope winding shall not be less than 5 turns. The wire rope end fasteners cannot bear the full load.8. Pull the connecting wire to move the machine, the rope will be broken.9. Use the rope with gloves. Don t let the rope slide in your hands.10. Don t overpack. For more than half of the load capacity, we recommend using the optional pulley to double the wire rope.11. The machine motor must be running during operation. If you turn off the motor and operate a relatively large winch, the battery will start the motor relatively weakly.12. Use nylon suspenders. Do not hang the wire rope upside down, it will damage the wire rope.13. Do not use a winch to lift or move people.14. Don t pull from extreme angles all the time. This will cause the wire rope to build up on the end of the drum.15. If there is a load on the winch, do not release the separation and reunion.EXCELLENT COPPER CORE TERMINAL: The winch adopts copper core terminal, which is not easy to corrode compared with iron terminal, possess good conductivity, low resistance and heat generation STRONG AND TOUGH WIRE ROPE: Electric winch adopt multi strand wound solid wire rope, strong enough, more wear resistant WINCH SEPARATION AND REUNION: Open the separation and reunion shell and manually release the rope, each model is with a separation and reunion on the right side of the machine ALLOY STEEL HOOK: After high temperature quenching treatment, the tensile strength is stronger, the surface treatment is not easy to rust, and the buckle design prevent the hook from disengaging EASY TO CONTROL AND INSTALL: Electric winch kit equipped with remote to control, and screws, nuts, washers for easy installation
