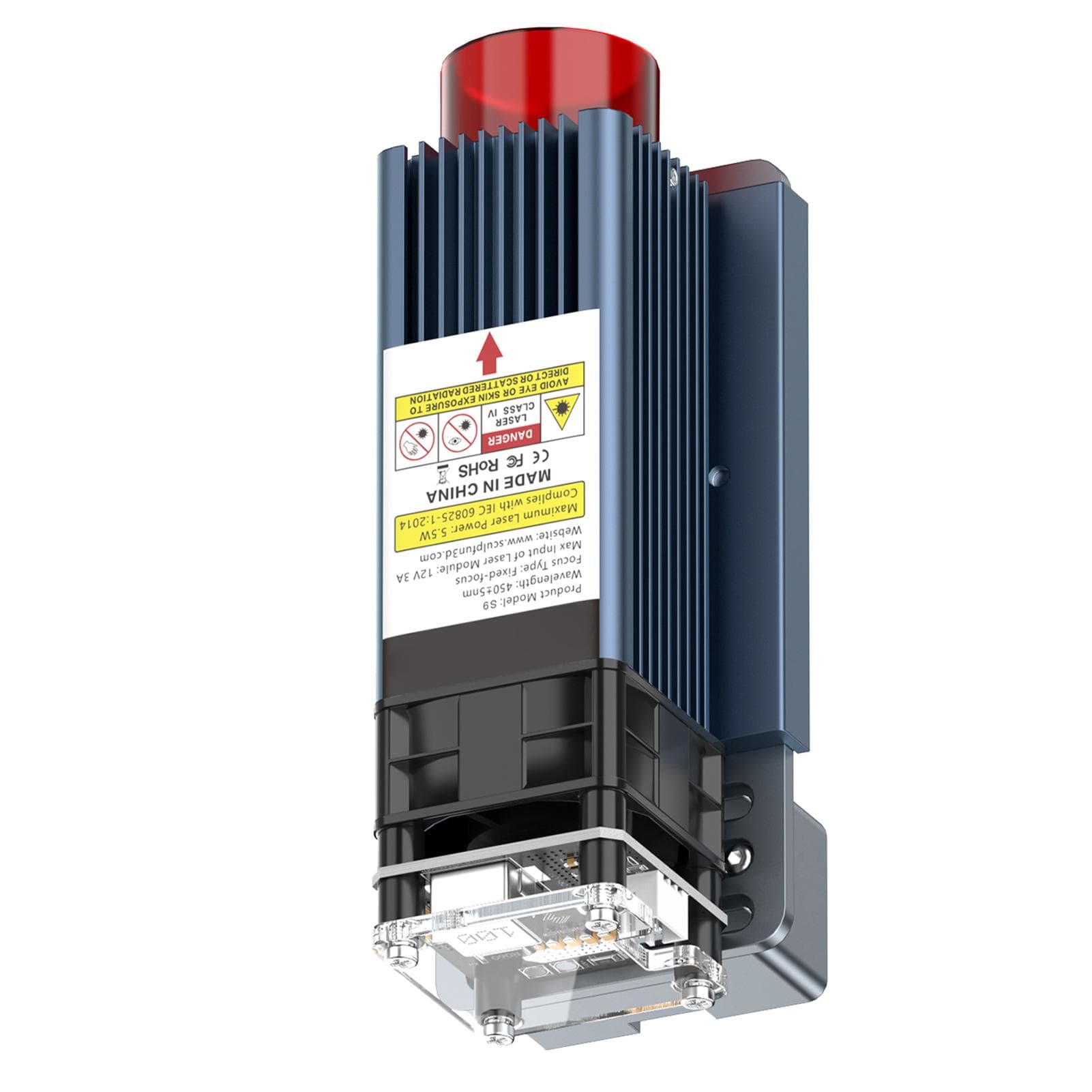

90W Laser Effect Module Engraving Machine Head Kit for Wood Acrylic Cutting 20mm Fixed Focus

About this item

• Feature: 1. HIGH COMPATIBILITY: This laser module kit can be used for laser engraving machine, cutting machine, 3D printer, CNC milling machine, etc., suitable for SCULPFUN, for ATOMSTACK, for ORTUR and other models. 2. 90W EFFECT LASER: Using the latest 5.5W laser beam shaping technology diode laser, 0.06mm ultra fine laser focus, with high cutting penetration and accuracy, can cut 15mm thick wood, 10mm acrylic. 3. FAST FIXED FOCUS: 20mm measuring column fixed focus, combined with fixed focus lens and sliding design, only need to slide the laser and tighten the screw to complete the focus, easy to operate. 4. RING EYE PROTECTION: The laser filter cover filters 98percent of the UV light to the eyes, so you can view the laser engraving from all angles without wearing goggles, and also prevent animals from grabbing the laser spot. 5. UNIVERSAL BOARD: The common 12V PWM modulation board is used, which can be adapted to common GRBL or CNC motherboards, and the 10000rpm fan has a good heat dissipation effect. Specification: Item Type: Laser Module Kit Applicable Models: For SCULPFUN, for ATOMSTACK, for ORTUR, for ELEKSMAKER and other laser engraving machines, or DIY 3D printer, CNC machine tools. Engravable Material: Wood, bamboo, cardboard, plastic, iron, PCB, aluminum oxide, stainless steel, jet black metal, ceramic Cuttable Material: Thin board, acrylic board, cardboard, non woven fabric, bamboo sheet, some plastic boards Laser Effect Power: 90W (similar cutting effect to 90W CO2 laser) Laser Output Power: 5.56W (light energy) Laser Wavelength: 455+5nm Laser Type and Fixed Focus: Fixed focus laser, 20mm measuring column fixed focus Laser Protection Cover: Ring shaped violet filter cover for eye protection, also prevent animals from touching the laser spot. Laser Shell Material: Aluminum Alloy Laser Circuit Board Parameters: Circuit Board Size: Approx. 40 x 40mm 1.6 x 1.6in Circuit Board: 12V PWM modulation board Input Voltage: 12V Laser Module Maximum Input: 12V 3A Wire: HY2.0, 3Pin Terminal (3 Pin Wire, A: PWM+, B: GND, C: VCC) Fan: 12V 0.15A 4020 fan Fan Speed: 10000rpm Working Temperature: 20 celsius 70 celsius . Package List: 1 x Laser Head1 x Multifunctional Connector2 x Wrenches16 x AccessoriesHIGH COMPATIBILITY: This laser module kit can be used for laser engraving machine, cutting machine, 3D printer, CNC milling machine, etc., suitable for SCULPFUN, for ATOMSTACK, for ORTUR and other models. 90W EFFECT LASER: Using the latest 5.5W laser beam shaping technology diode laser, 0.06mm ultra fine laser focus, with high cutting penetration and accuracy, can cut 15mm thick wood, 10mm acrylic. FAST FIXED FOCUS: 20mm measuring column fixed focus, combined with fixed focus lens and sliding design, only need to slide the laser and tighten the screw to complete the focus, easy to operate. RING EYE PROTECTION: The laser filter cover filters 98percent of the UV light to the eyes, so you can view the laser engraving from all angles without wearing goggles, and also prevent animals from grabbing the laser spot. UNIVERSAL BOARD: The common 12V PWM modulation board is used, which can be adapted to common GRBL or CNC motherboards, and the 10000rpm fan has a good heat dissipation effect.
