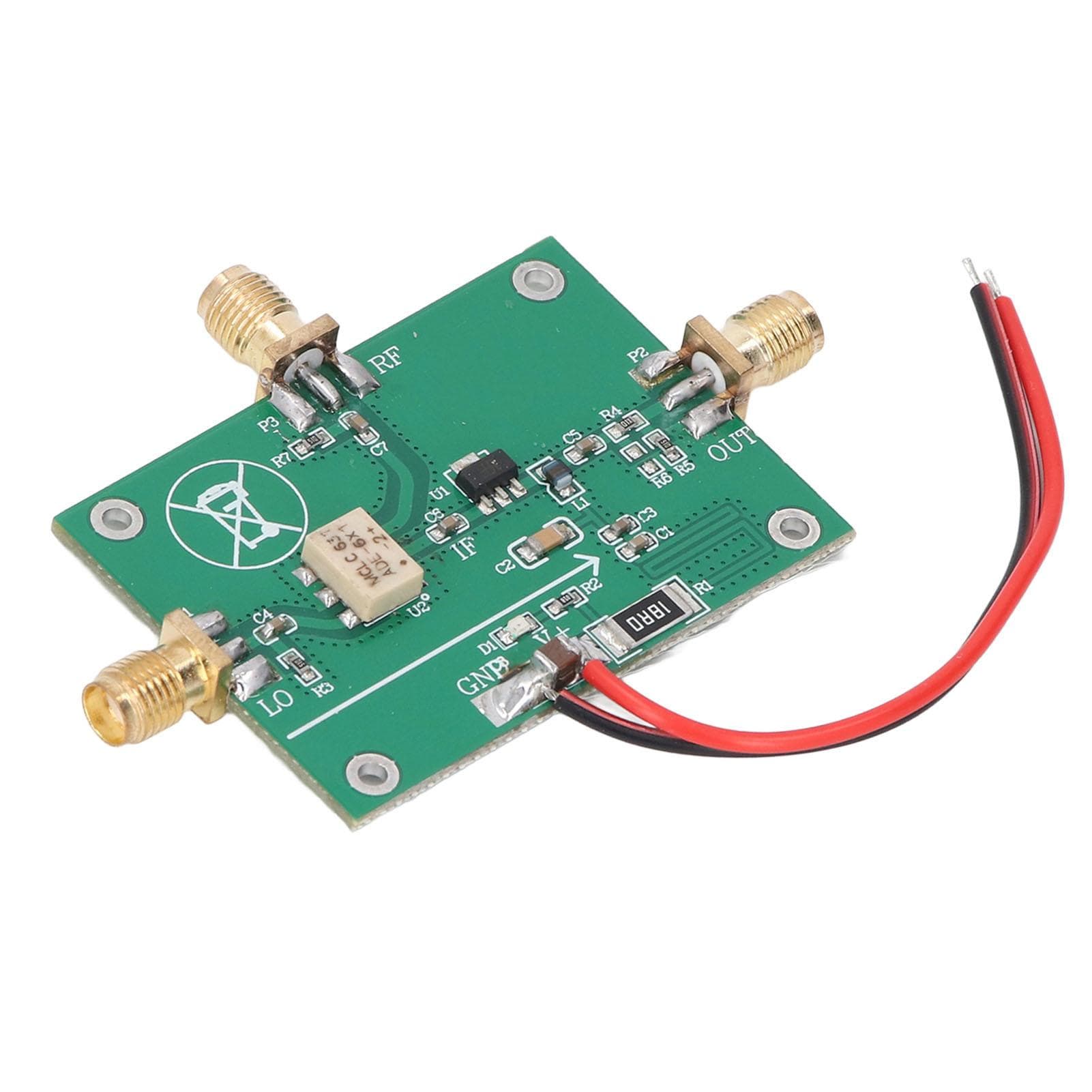

Passive Mixer Module ADE6 0.05MHz250MHz RF Upconversion and Downconversion Mixer

About this item

• Feature: 1. [Compact Size] This passive mixer module has a compact design that can be easily integrated into various RF applications without taking up too much space. 2. [High Linear RF Amplifier] Integrated with high linear RF amplifier at the backend, compensating for the inherent dB loss associated with passive devices to ensure signal integrity. 3. [Efficient Performance] Typical frequency loss of only 4.6dB, providing efficient performance for upconversion and downconversion tasks. 4. [40dB L R Isolation] Offers maximum reduction of interference between channels for clearer signal transfer and reception. 5. [Water Proof] Compact packaging design not only features full functionality but also water proof, easy to clean and maintain without affecting performance. Specification: Item Type: Passive Mixer Module Material: PCB Local Oscillator (LO): 0.05MHz to 250MHz, Power=7dBm Signal (RF): 0.05MHz to 250MHz, Power=7dBm Mixed Frequency Signal (IF): DC200MHz, Typical Loss: 4.6dB Device Type: Passive Mixer Module Power Supply: +5V for Rear Stage Gain Compensation RF Amplifier Power Supply. Package List: 1 x Passive Mixer Module[Compact Size] This passive mixer module has a compact design that can be easily integrated into various RF applications without taking up too much space. [High Linear RF Amplifier] Integrated with high linear RF amplifier at the backend, compensating for the inherent dB loss associated with passive devices to ensure signal integrity. [Efficient Performance] Typical frequency loss of only 4.6dB, providing efficient performance for upconversion and downconversion tasks. [40dB L R Isolation] Offers maximum reduction of interference between channels for clearer signal transfer and reception. [Water Proof] Compact packaging design not only features full functionality but also water proof, easy to clean and maintain without affecting performance.
