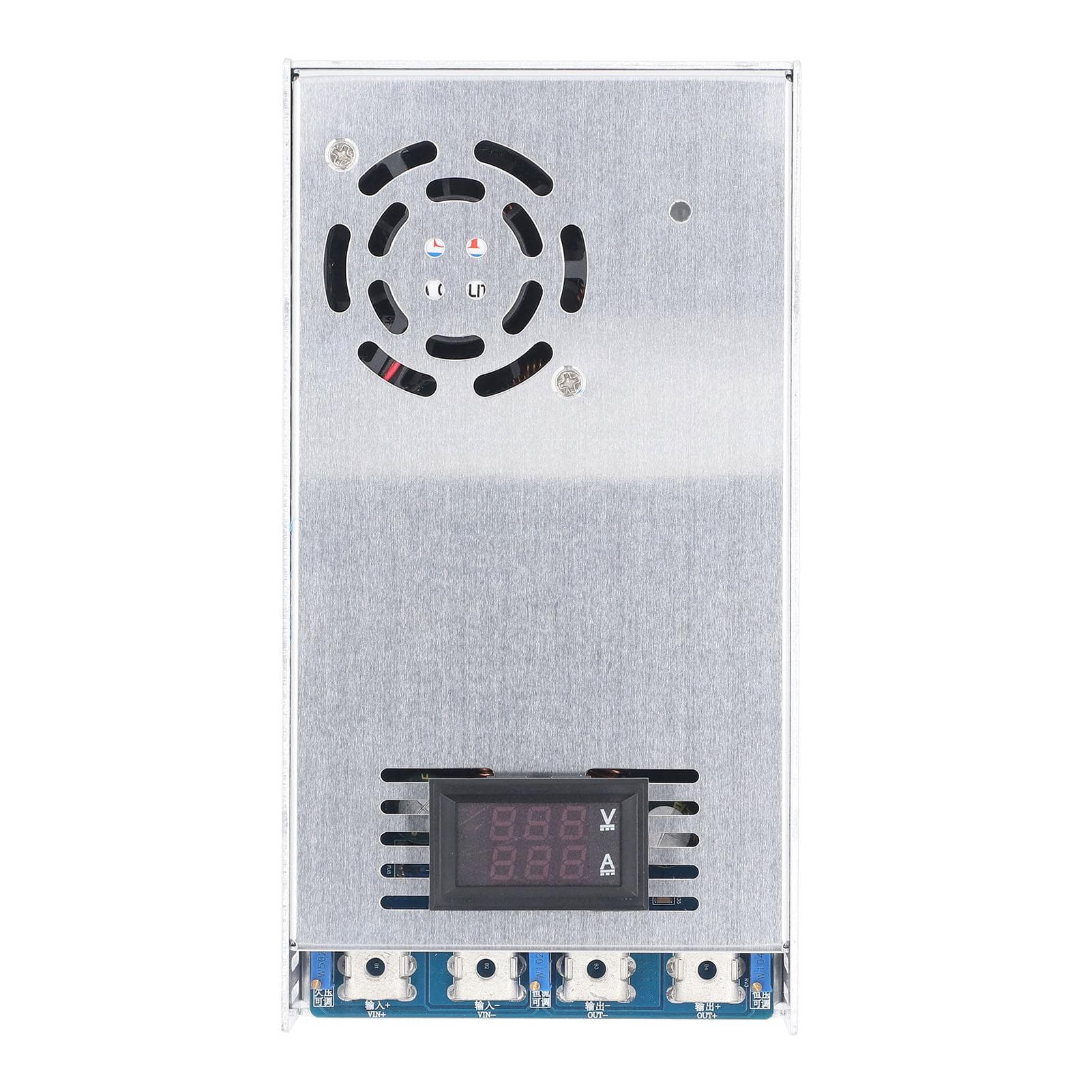

DC Switching Power Supply 10.5V?60V to 15V?80V Step Up Boost Industrial Power Supplies 100A 2000W

About this item

• Feature: 1. MULTIPLE PROTECTING: DC switching power supply adopt multiple protecting functions to ensure the safe and stable operation of equipment. Over voltage protecting, over current protecting, short circuit protecting 2. APPLICABLE SCENARIO: Switching power supply is suitable for scientific research experiments, laboratory equipment, robots, communication equipment and other fields of power supply 3. HIGH POWER OUTPUT: DC step up switching power supply is suitable for high power equipment. Support high efficiency conversion, energy saving and environmentally friendly 4. WIDE APPLICATION: Switching power supply can be used for laboratory research, electronic engineering development, electronic burn in testing, school education, production line testing, battery testing 5. WITH FITTINGS: 10.5V?60V to 15V?80V power supply equipped with terminals and screws, easy for you to install and use, complete accessories allow convenience to operate Specification: Item Type: DC Switching Power Supply Model: APD100A2000W Input Voltage: DC10.5V60V Input Current: 100A (maximum) Input Power: 2000W (maximum) No Load Power Consumption: Less than 2W Output Voltage: DC15V80V Output Current: 550A (maximum) Output Power: 1.75KW (maximum) Conversion Efficiency: 9095percent (efficiency varies with input and output voltage and current) Operating Temperature: 20~50 celsius 1. Input + is the positive terminal of the power input, and input is the negative terminal of the power input. 2. Output + is the positive output of the power supply, and output is the negative output of the power supply. 3. When the output of the module requires constant current and current limiting, the input and output ground cables must be connected separately and cannot share the same cable. 4. Adjustable Range of Undervoltage: DC10.5V50V (decreases CW, increases CCW), first adjust the undervoltage to the minimum, then adjust the input voltage to the required undervoltage protection value, and then slowly increase the adjustable value CCW, when the undervoltage indicator is on, turn back one or two turns, and then switch on the power supply. The Undervoltage Protection Function Is Mainly Used For: (1) Input battery power supply, mainly to protect the battery from being damaged by overdischarge. (2) The input voltage is unstable power supply, such as solar panels, wind turbines, car generators, etc., to ensure that the power supply and equipment will not be damaged by the input voltage is too low. (3) The function also has a certain MPPT function when used in solar panels and wind turbines, which can catch the maximum power point when the input power is low to achieve efficient input. 5. Adjustable Range of Constant Voltage: DC1580V (decreases in CW direction, increases in CCW direction), please adjust the voltage to the required voltage when the no load output, and then connect the load (constant current should be adjusted to the maximum when the constant voltage power supply). 6. Adjustable Range of Constant Current: 5A50A (decrease CW, increase CCW), first no load output voltage to the voltage required by the load (constant current spatial and temporal load voltage should be 23V higher than the load voltage), the current to the minimum, and then slowly adjust the current to the current required by the load. 7. The power supply is equipped with intelligent temperature control fan. When the power supply temperature reaches 5560 degrees Celsius, the fan will automatically turn on. When the power supply temperature drops to about 50 degrees Celsius, the fan automatically shuts down. 8. The input voltage cannot be lower than 12V or higher than 60V (When the input voltage is lower than 12V, properly reduce the load). 9. The maximum input current cannot exceed 100A, and the power cannot exceed 2000W. 10. When used, ensure that the input voltage is more than 2V lower than the output voltage. 11. When using switching power supplies or other auxiliary power supplies, ensure that the power supply is more than twice the power of the module. 12. When the power supply is over current or under voltage protect, the output still has a voltage close to the input value, and the protect is only that the power supply does not boost the voltage. 13. Only when the power supply is boosted, the output blue indicator will light up. 14. Important Note: Please try not to use in the case of input less than 12V and full load output more than 60V. When the input and output voltage difference is large, the output power should be appropriately reduced. The greater the voltage difference, the lower the power efficiency and the greater the heat output. 15. Output Load Description: When the input is 12V (the input current is 100A, the output is below 60V, the output can carry a maximum load of 1100W), when the input is more than 24V (the input current can up to 85A, the output can carry a load below 1850W), the test load is a resistance load, other loads hinge on the situation. 16. Input Current And Power Description: In any case, the input current should not exceed 100A. When the input working current exceeds 75A or the input power exceeds 1000W, the heat dissipation should be strengthened (the lower part of the power supply should be attached to the metal surface for heat dissipation).. Package List: 1 x Step Up Power Supply 4 x Terminals 4 x ScrewsMULTIPLE PROTECTING: DC switching power supply adopt multiple protecting functions to ensure the safe and stable operation of equipment. Over voltage protecting, over current protecting, short circuit protecting APPLICABLE SCENARIO: Switching power supply is suitable for scientific research experiments, laboratory equipment, robots, communication equipment and other fields of power supply HIGH POWER OUTPUT: DC step up switching power supply is suitable for high power equipment. Support high efficiency conversion, energy saving and environmentally friendly WIDE APPLICATION: Switching power supply can be used for laboratory research, electronic engineering development, electronic burn in testing, school education, production line testing, battery testing WITH FITTINGS: 10.5V?60V to 15V?80V power supply equipped with terminals and screws, easy for you to install and use, complete accessories allow convenience to operate
