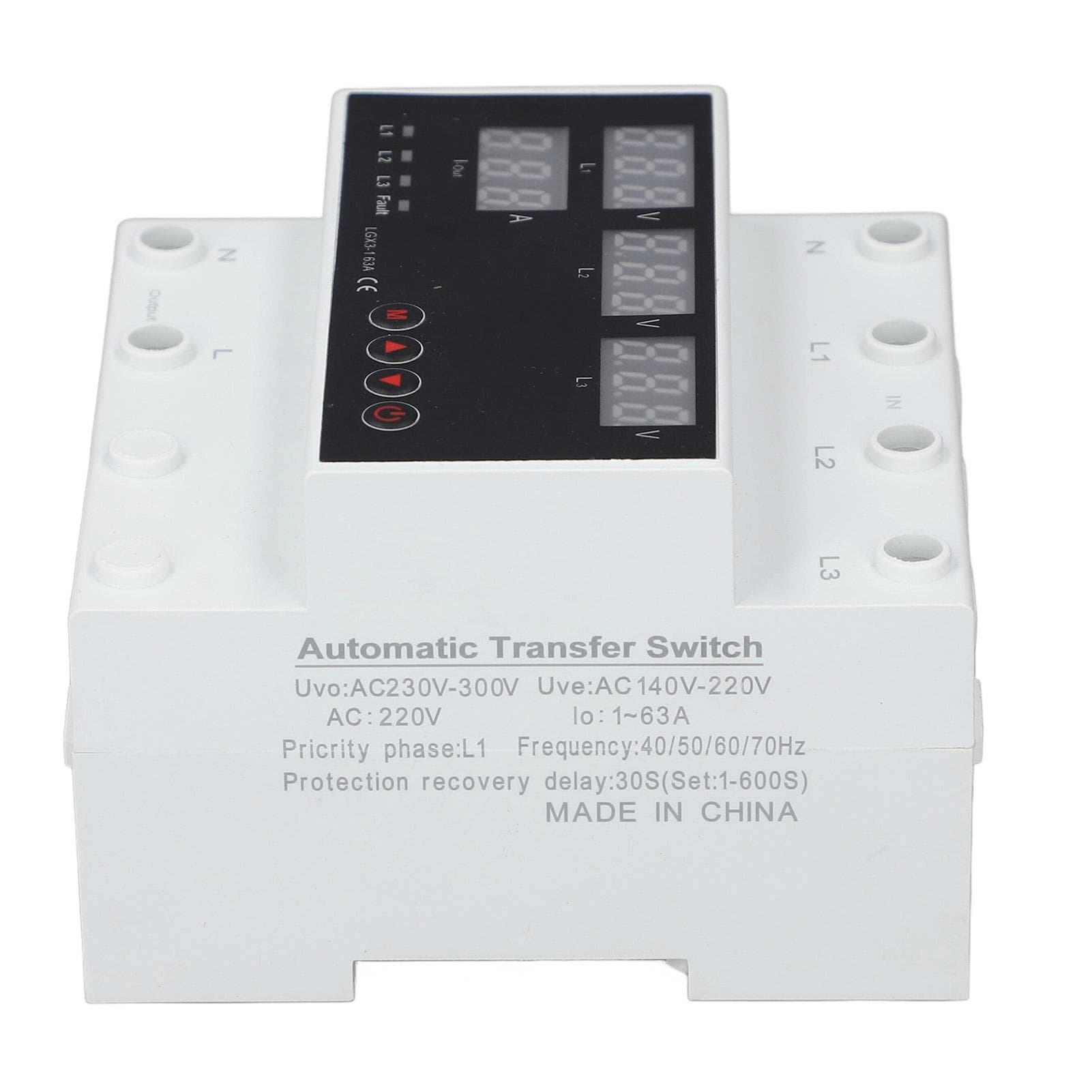

Automatic Transfer Switch ATS 63A 3PH LED Display Adjustable Voltage Protector for Generator

About this item

• Feature: 1. AUTOMATIC TRANSFER: When the main power supply fail or the voltage is abnormal, the ATS automatically transfer the load from the main power supply to the standby power supply to ensure uninterrupted power supply. Priority is L1>L2>L3. ATS ensure smooth switching between the primary and backup power supplies, preventing power fluctuations or interference. After the main power supply recovers, the ATS automatically transfer the load back to the main power supply to ensure a seamless system restart 2. FLEXIBLE SETTINGS: This three phase automatic transfer switch enables you to freely prioritize mains power, generator, and inverter. You can set the voltage threshold for switching, so automatically switch when there is under voltage or over voltage. The switch speed can also be set within the range of 1s to 600s, with a default of 30s 3. ADJUSTABLE PARAMETERS: The transfer time, reset time, over under voltage protection, and overcurrent protection parameters are all adjustable within the specified range 4. SAFE MATERIAL: The shell of the automatic transfer switch is made of high fireproof PC material, which is not easy to burn and ensure safe use. Has the characteristics of sensitive to operate, accurate measurement and minimal heat generation. The beautiful design show the exquisite craftsmanship 5. WIDE APPLICATION: ATS is widely used in power system that require continuous and stable power supply, including commercial and industrial buildings, medical facilities, data centers, and communication base stations Specification: Item Type: Automatic Transfer Switch Model: CHLTGX2 Material: Flame retardant PC Power Terminals: N, L1, L2, L3 Auto Reclosing Delay(Ton): 1600s Return Priority Stage Delay: 1600s Switch Delay To Reserve Phase: <0.2s Voltage Hysteresis: 5V Overvoltage Trip Delay: 0.1s; more than 350V: 0.02s Undervoltage Trip Delay: 0.1s; more than 350V: 0.02s Voltage Accuracy: <1percent Maximum Operating Phase Voltage: 350V Rated Operating Current: 63A Maximum Operating Current: 80A Pollution Degree: 3 Altitude: less than 2000m Operating Temperature: 25 celsius ~+50 celsius Relative Humidity: less than 50percent at 40 celsius (non condensing) Wire Size: 0.5mm21mm2 Installation: 35mm standard mounting rail. Package List: 1 x Automatic Transfer Switch 1 x User ManualAUTOMATIC TRANSFER: When the main power supply fail or the voltage is abnormal, the ATS automatically transfer the load from the main power supply to the standby power supply to ensure uninterrupted power supply. Priority is L1>L2>L3. ATS ensure sm FLEXIBLE SETTINGS: This three phase automatic transfer switch enables you to freely prioritize mains power, generator, and inverter. You can set the voltage threshold for switching, so automatically switch when there is under voltage or over voltage. The ADJUSTABLE PARAMETERS: The transfer time, reset time, over under voltage protection, and overcurrent protection parameters are all adjustable within the specified range SAFE MATERIAL: The shell of the automatic transfer switch is made of high fireproof PC material, which is not easy to burn and ensure safe use. Has the characteristics of sensitive to operate, accurate measurement and minimal heat generation. The beautif WIDE APPLICATION: ATS is widely used in power system that require continuous and stable power supply, including commercial and industrial buildings, medical facilities, data centers, and communication base stations
