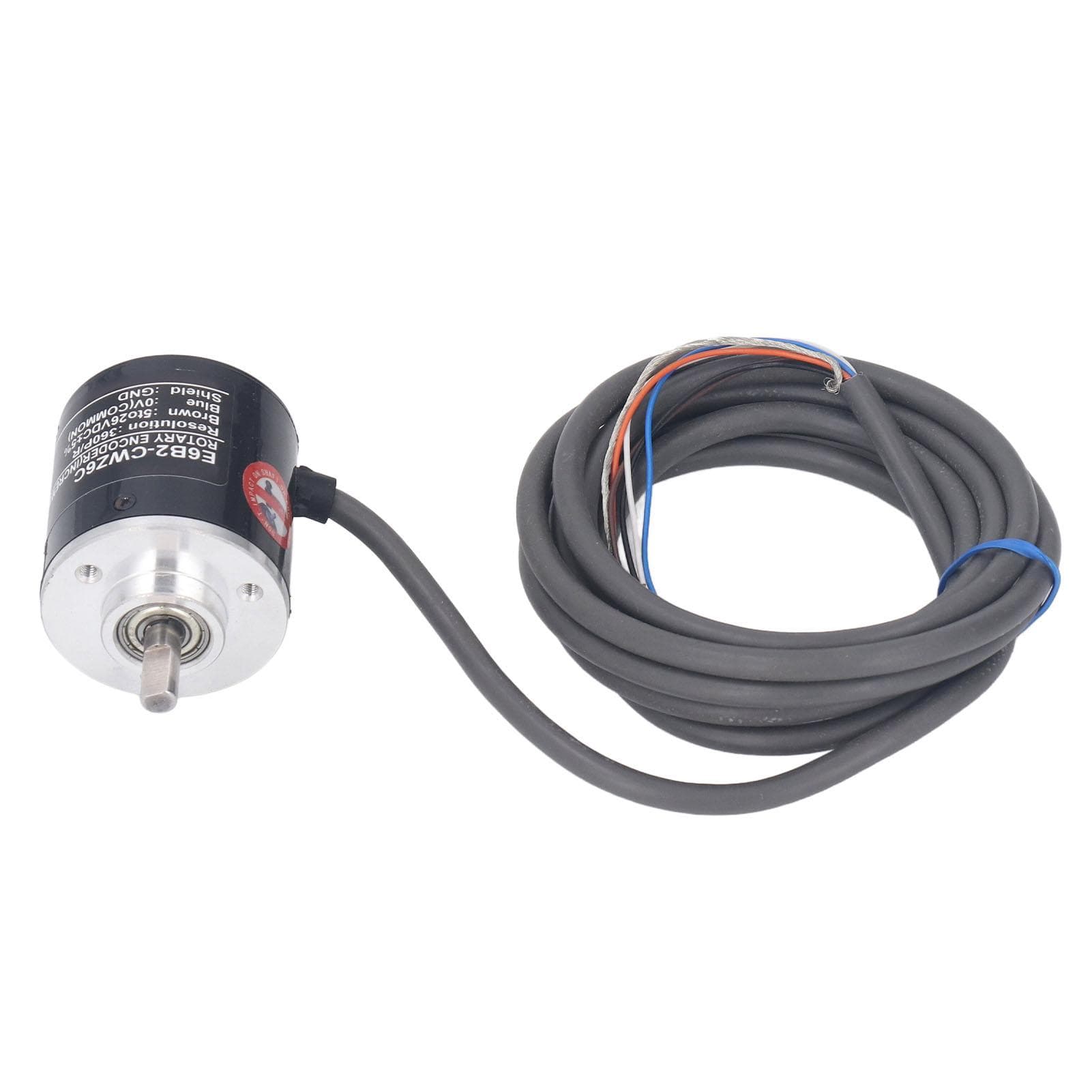

Rotary Encoder Kit High Accuracy 2 Phase 360PR 5?24VDC Wide Voltage Power Supply

About this item

• Feature: 1. HIGH ACCURACY MEASUREMENT: The E6B2?CWZ6C encoder provide high accuracy rotary measurement results to meet needs of various applications 2. MULTIPLE VOLTAGE ADAPTION: Rotary encoder support 5?24VDC voltage input, adaptable to different equipment and circuit requirements, flexible and reliable 3. RELIABLE AND DURABLE: The encoder has excellent quality and durability, can be used for a long time without affecting performance, and is suitable for industrial and commercial applications 4. TECHNICAL PARAMETERS: 2 phase encoder output state using NPN collector open output, the maximum response frequency is 100kHz, the maximum allowable speed is 6000rmin 5. DURABLE MATERIAL: 2 phase rotary encoder is made of excellent stainless steel and ABS material, rustproof, corrosion resistant, durable and reliable Specification: Item Type: Rotary Encoder Material: Stainless steel and ABS Rated Supply Voltage: DC524V Current Consumption: Below 80mA Output Status: NPN open collector output Output Capacity(synchronous current 35mA): Applied voltage below DC30V Synchronization current below 35mA Residual voltage below 0.4V Maximum Response Frequency: 100kHz Output Phase Difference: A phase, B phase difference 90+45 degrees Starting Torsion: 1m N.m Moment of Inertia: 1x10 minus six power kg.m2 Allowable Maximum Speed: 6000rmin Shaft Load: Radial 30N Thrust to 20N Ambient Temperature: 10 celsius ~+70 celsius Ambient Humidity: 35~85percent RH. Package List: 1 x Encoder1 x Hex Wrench1 x Accessory1 x User ManualHIGH ACCURACY MEASUREMENT: The E6B2?CWZ6C encoder provide high accuracy rotary measurement results to meet needs of various applications MULTIPLE VOLTAGE ADAPTION: Rotary encoder support 5?24VDC voltage input, adaptable to different equipment and circuit requirements, flexible and reliable RELIABLE AND DURABLE: The encoder has excellent quality and durability, can be used for a long time without affecting performance, and is suitable for industrial and commercial applications TECHNICAL PARAMETERS: 2 phase encoder output state using NPN collector open output, the maximum response frequency is 100kHz, the maximum allowable speed is 6000rmin DURABLE MATERIAL: 2 phase rotary encoder is made of excellent stainless steel and ABS material, rustproof, corrosion resistant, durable and reliable
