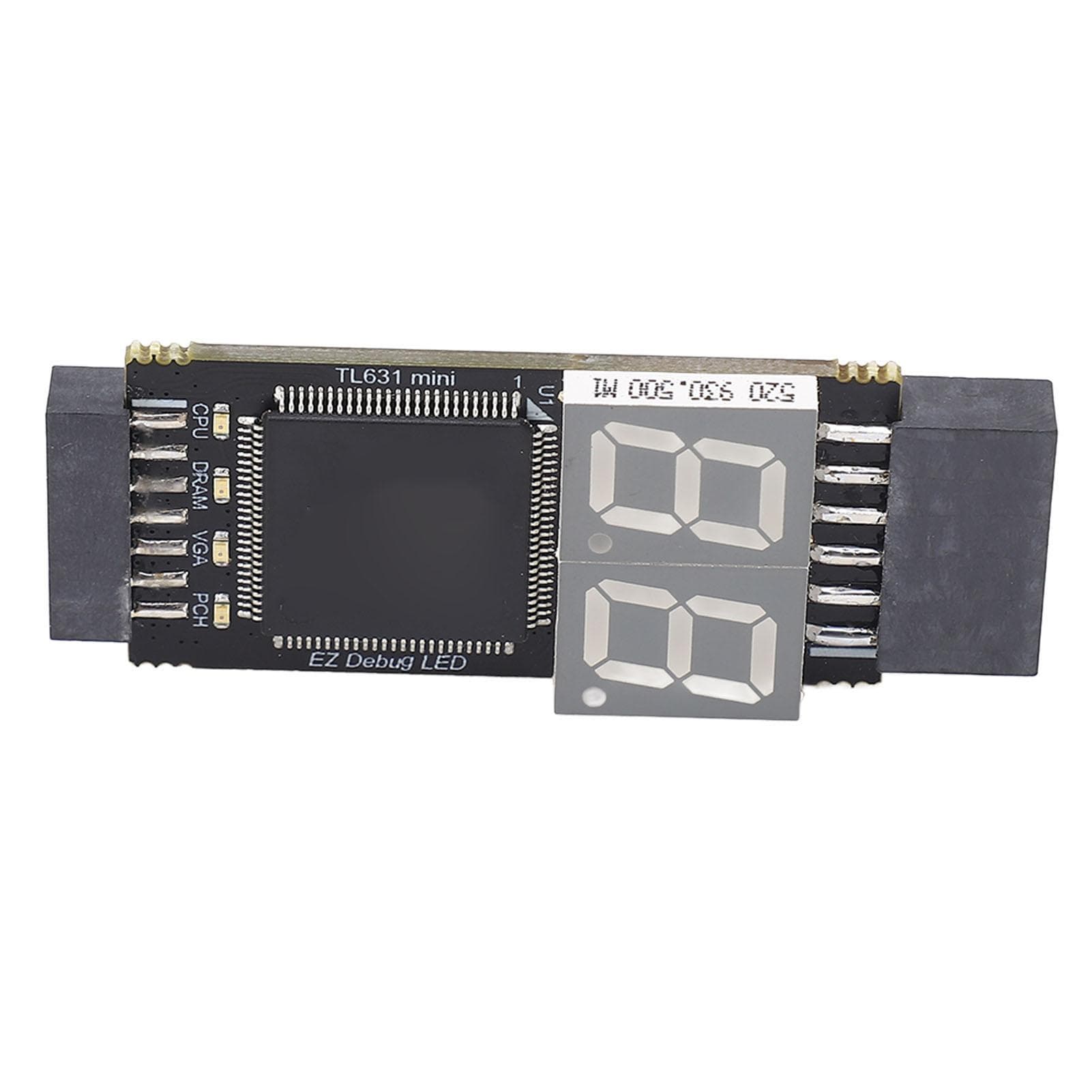

TL631 Motherboard Diagnostic Card TL611 Laptop Analyzer Adapter Card PCIE LPC Port PC Computer

About this item

• Feature: 1. Strong Compatibility: This laptop motherboard analyzer card supports PCI E interface, mini PCI E interface, LPC interface, supports all PCI slots, and has good compatibility. 2. Serial Comm Protocol: This diagnostic card has added a serial comm protocol, including for Asus COM DEBUG, for UART1, for MSI JDP, which has a wide range of applications. 3. Good Performance: The motherboard analyzer diagnostic card has high recognition rate, supports automatic recognition of power module, high efficiency, and stable performance. 4. LED Indicator: Can detect multi channel and multiple LED indicator, support displaying the status of power supply, motherboard, PCU, memory, video card, and hard drive. 5. Included Tools: This kit includes motherboard diagnostic card, laptop adapter card, connection cable and ribbon cables, easy to connect and operate, convenient and practical. Specification: Item Type: Motherboard Diagnostic Card Product Color: Black Product Interface: PCIE, LPC Support Brand: Suitable for Asus COM DEBUG, for UART1, for MSI JDP, for AMD SPI, etc. Diagnostic Card Settings: 1. LPC1 shared high speed channel, connect the 2.0 small pin LPC port and 2.0 module on the mainboard (The module expansion LPC3 port can connect to the laptop MINI PCIE conversion card, A DEBUG conversion card, ASUS notebook DEBUG CON, EC DEBUG). 2. LPC2 shared high speed channel, connect motherboard 2.54 large pin LPC interface, for Asus COM DEBUG, for UART1, for MSI JDP, for AMD SPl. 3. DP decimal point, CLK signal display. 4. DP decimal point, FRAME frame signal display. 5. CPU indicator to check whether the CPU module is normal. 6. DRAM memory indicator to check whether the memory module is normal. 7. VGA graphics card indicator to check whether the graphics card module is normal. 8. PCH Southbridge indicator to check whether the Southbridge module is normal. 9. The white horizontal line is the first needle of LPC1. 10. The white horizontal line is the first needle of LPC2. 11. DP decimal point, CLK signal display.. Package List: 1 x Diagnostic Card 1 x Connection Cable 1 x Adapter Card 2 x Ribbon CableStrong Compatibility: This laptop motherboard analyzer card supports PCI E interface, mini PCI E interface, LPC interface, supports all PCI slots, and has good compatibility. Serial Comm Protocol: This diagnostic card has added a serial comm protocol, including for Asus COM DEBUG, for UART1, for MSI JDP, which has a wide range of applications. Good Performance: The motherboard analyzer diagnostic card has high recognition rate, supports automatic recognition of power module, high efficiency, and stable performance. LED Indicator: Can detect multi channel and multiple LED indicator, support displaying the status of power supply, motherboard, PCU, memory, video card, and hard drive. Included Tools: This kit includes motherboard diagnostic card, laptop adapter card, connection cable and ribbon cables, easy to connect and operate, convenient and practical.
