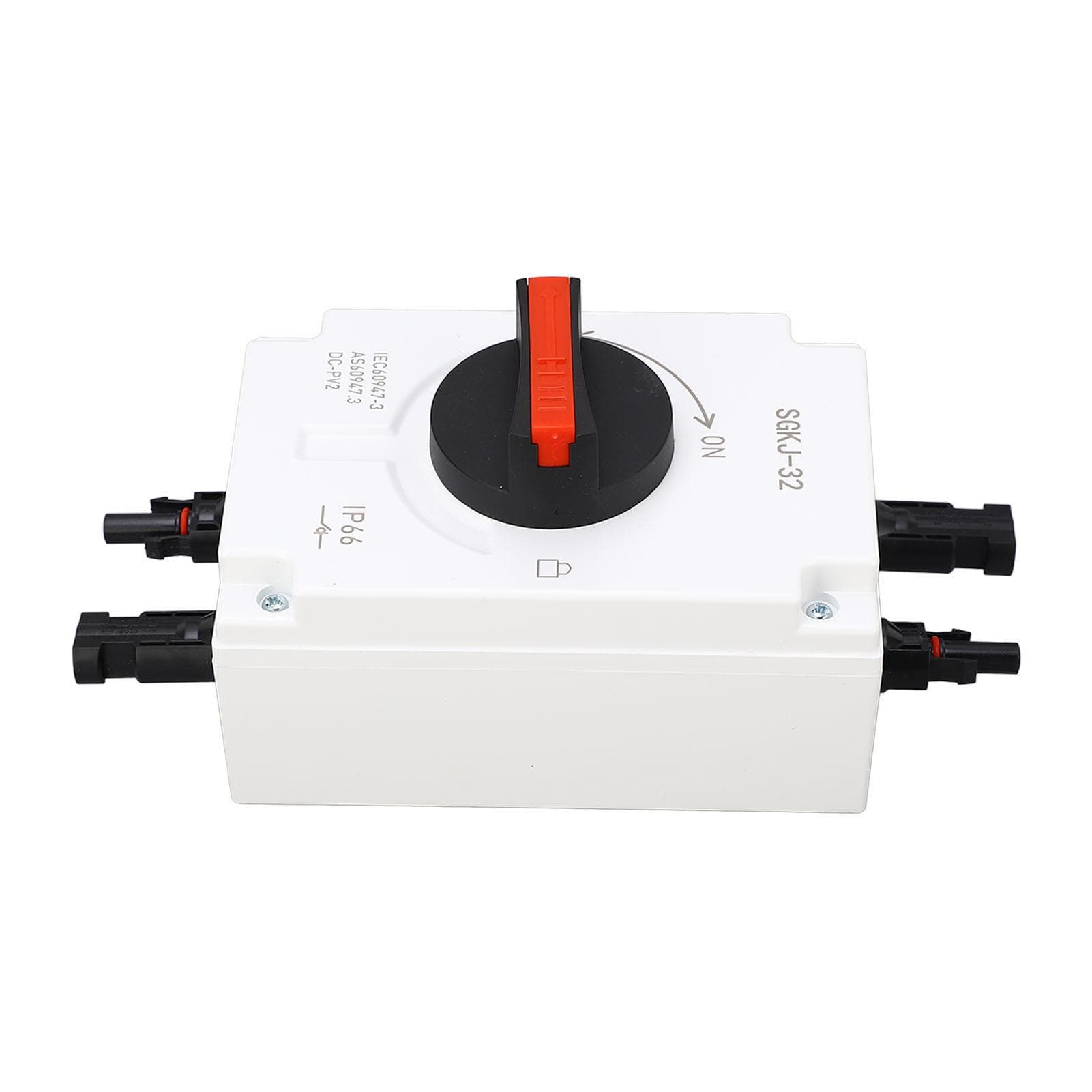

DC1200V 40A PV DC Disconnect Switch IP66 Waterproof 4P DC Isolator Switch for RV Boat Solar System

About this item

• Feature: 1. MAIN USE: PV DC disconnect switch is used to turn off all poles of the solar module. Installed on a serial line between the module and the grid inverter or charging controller. Switching current up to 32A can be switched at a voltage of up to 1200V. 2. PC SHELL: Made of premium PC material, this switch has a flame retardant, good insulation, water resistance, high temperature resistant, acid and alkali resistance shell, provides good protection. 3. LONG LIFE SPAN: Can be repeatedly inserted and pulled out multiple times, with automatic locking providing safe docking and long service life. 4. EASY INSTALLATION: Compact in size, this disconnect switch is suitable for places with limited space. Guide rail installation for easy installation. 5. GOOD BREAKING CAPACITY: The load breaking can arrive up to 8 times the rated current, making it an ideal choice for motor isolation. Specification: Item Type: PV DC Disconnect Switch Material: PC Electric Level: 4P Rated Voltage Range: DC300VDC1200V Maximum Rated Voltage: DC1200V Insulation Voltage Ui: DC1500V Rated Impulse Withstand Voltage Uimp: 8kV Rated Current Range: 10A40A Maximum Rated Current: 40A Waterproof Grade: IP66 Fall Resistance: 10001700 Environmental Temperature: 40 celsius to +85 celsius Connection Type: M20 connectors. Package List: 1 x PV DC Disconnect Switch 4 x Screw 4 x Expansion Tube 1 x Lock 2 x ManualMAIN USE: PV DC disconnect switch is used to turn off all poles of the solar module. Installed on a serial line between the module and the grid inverter or charging controller. Switching current up to 32A can be switched at a voltage of up to 1200V. PC SHELL: Made of premium PC material, this switch has a flame retardant, good insulation, water resistance, high temperature resistant, acid and alkali resistance shell, provides good protection. LONG LIFE SPAN: Can be repeatedly inserted and pulled out multiple times, with automatic locking providing safe docking and long service life. EASY INSTALLATION: Compact in size, this disconnect switch is suitable for places with limited space. Guide rail installation for easy installation. GOOD BREAKING CAPACITY: The load breaking can arrive up to 8 times the rated current, making it an ideal choice for motor isolation.
