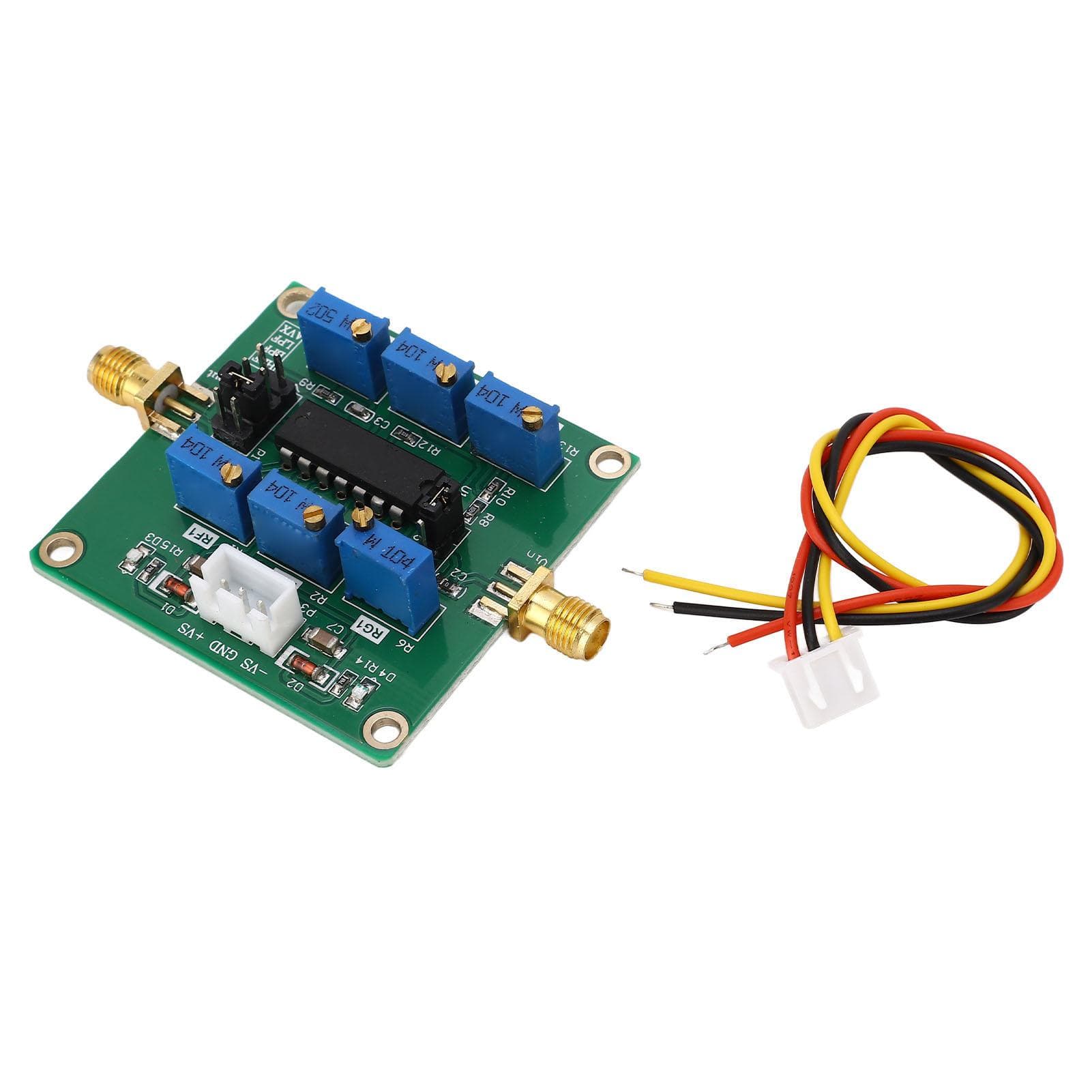

Active Filter Board UAF42 Adjustable Highpass Lowpass Bandpass Filter Module for Ham Radio

About this item

• Feature: 1. MULTI FUNCTION: This active filter board can be designed as high pass, low pass, band pass, or bandpass filter as required. 2. SIMPLE DESIGN: The active filter module also has a specially designed software that can easily and flexibly design various types of filters. 3. HIGH ACCURACY: The active filter board has high frequency accuracy and high Q value, integrates with 1000pF+5percent capacitance. 4. ADJUSTABLE DESIGN: This filter board is frequency, gain and Q value adjustable, more practical and useful. 5. WIDE RANGE: The power supply voltage range of this filter module is 5 to 18V, ensuring a wider range of applications. Specification: Item Type: Active Filter Board Material: PCB Model: UAF42 Power Supply Voltage Range: 518V Application: Ham Radio Amplifier Features: 1. Use 518V power supply power reverse connection prevention circuit, prevent incorrect connection and burning of the board. 2. Cutoff frequency, center frequency, gain adjustable, Q value adjustable. 3. The input can be connected in phase or in reverse, which is convenient for different requirements. 4. Output is amplified through a jumper cap strobe output bandpass, low pass, high pass, or filtered. . Package List: 1 x Active Filter BoardMULTI FUNCTION: This active filter board can be designed as high pass, low pass, band pass, or bandpass filter as required. SIMPLE DESIGN: The active filter module also has a specially designed software that can easily and flexibly design various types of filters. HIGH ACCURACY: The active filter board has high frequency accuracy and high Q value, integrates with 1000pF+5percent capacitance. ADJUSTABLE DESIGN: This filter board is frequency, gain and Q value adjustable, more practical and useful. WIDE RANGE: The power supply voltage range of this filter module is 5 to 18V, ensuring a wider range of applications.
