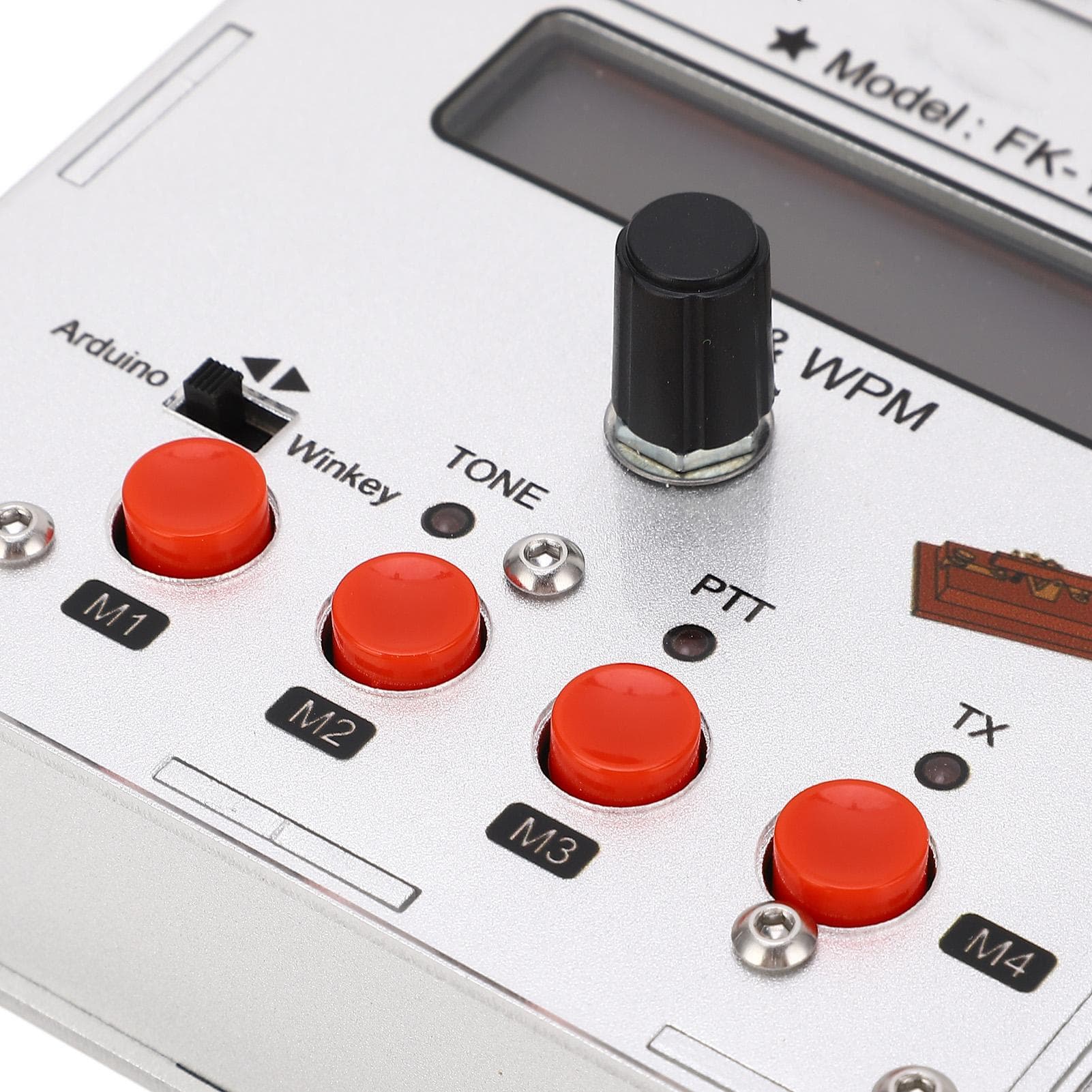

K3NG Keyer Open Source CW Morse Code Aluminum Alloy K3NG Keyer for LCD Display Keyboard

About this item

• Feature: 1. PRODUCT INTRODUCTION: This is an open source CW (Morse code) keyer, which has many functions and flexibility. 2. OPEN SOURCE CODE: Code comes from K3NG, which is an open source code, so you can completely customize the code to meet your needs, or learn from or find coding ideas for other projects. 3. UPGRADE VERSION: The PCB has been redesigned, which can be installed in a compact aluminum housing, and the code has been trimmed to adapt to the functions of AVR for mega 2560. 4. MULTI USE: For K3NG Keyer integrates almost all features and functions of for K3NG s code, such as LCD display, USB keyboard, rotary encoder and CW decoder. 5. STANDBY IO: There are some standby IO on the pcb, which can be reserved for new features and functions. Specification: Item Type: K3NG Keyer Material: Aluminum Alloy Report Item, Suspicious Activity: This is an open source based CW (Morse Code) keyer with a lot of features and flexibility, rivaling other commercial keyers which often cost significantly more. The for code comes from for K3NG, and it s an open source code so you can fully customize it to fit your needs and also perhaps learn from it or find coding ideas for other projects. We redesigned the PCB, which could be fit into a compact aluminum enclosure, and trimmed the code so as to fit the features of AVR for mega 2560. The Funtronics K3NG Keyer integrates nearly all of the features and functions of the K3NG s code, such as LCD display, USB keyboard, rotary encoder and CW decoder etc. Moreover, there are some spare IOs left on the pcb, which could be left for the feature new features and functions. Features: CW speed adjustable from 1 to 999 WPM Programming and interfacing via USB port (command line interface) USB Keyboard Interface for CW keyboard operation without a computer Logging and Contest Program Interfacing via K1EL Winkey 1.0 and 2.0 interface protocol emulation PTT outputs with configurable , tail, and hang times 1602 LCD Display 3 memories with macros Serial numbers CW keyboard (via a terminal server program like Putty or the serial program) Speed potentiometer (optional, speed also adjustable with commands) QRSS and HSCW Beacon, Fox mode Iambic A and B Straight key support Ultimatic mode Bug mode CMOS Super Keyer Iambic B Timing Paddle reverse Hellschreiber mode (keyboard sending, memory macro, beacon) Farnsworth Timing Adjustable frequency sidetone Sidetone disable, sidetone high, low output for keying outboard sound oscillator Command mode for using the paddle to change settings, program memories, etc. Keying Compensation Dah to Dit Ratio adjustment Weighting Callsign receive practice Send practice Memory stacking Dead Operator Watchdog Autospace Wordspace Adjustment Pre configured and Custom Prosigns Non volatile storage of most settings Modular code design allowing selection of features and easy code modification Non English Character Support CW Receive Decoder Rotary Encoder Speed Control Sleep Mode USB Mouse Support Alphabet Sending Practice QLF, Messy Straight Key Emulation Web Interface (UNDER DEVELOPMENT) Winkey Emulation: The for K3NG keyer supports winkey 1.0 and 2.0 emulation, and it is compatible with many contest and logging softwares. The following functions are currently implemented in the emulation: Currently the following functions are implemented: CW Sending (of course) Pause Key Down Unbuffered and Buffer Speed Setting Iambic A and B, Bug Mode Settings Ultimatic in normal, dit priority, and dah priority modes Farnsworth Pointer Operations Backspace Sidetone Frequency Settings (Winkey 1, 2, and custom frequencies) Paddle Reverse Paddle Watchdog Keying Compensation Dit to Dah Ratio Contest Wordspace Autospace PTT , Tail, and Hang Time Speed Pot Setup and Query First Extension Software Paddle Weighting HSCW Serial Echoback Prosigns Dual transmitter keying lines Paddle Only Sidetone Memory button reporting Standalone Message Sending. Package List: 1 x K3NG Keyer 1 x Manual 1 x USB Cable 3 x Electronic ComponentPRODUCT INTRODUCTION: This is an open source CW (Morse code) keyer, which has many functions and flexibility. OPEN SOURCE CODE: Code comes from K3NG, which is an open source code, so you can completely customize the code to meet your needs, or learn from or find coding ideas for other projects. UPGRADE VERSION: The PCB has been redesigned, which can be installed in a compact aluminum housing, and the code has been trimmed to adapt to the functions of AVR for mega 2560. MULTI USE: For K3NG Keyer integrates almost all features and functions of for K3NG s code, such as LCD display, USB keyboard, rotary encoder and CW decoder. STANDBY IO: There are some standby IO on the pcb, which can be reserved for new features and functions.
