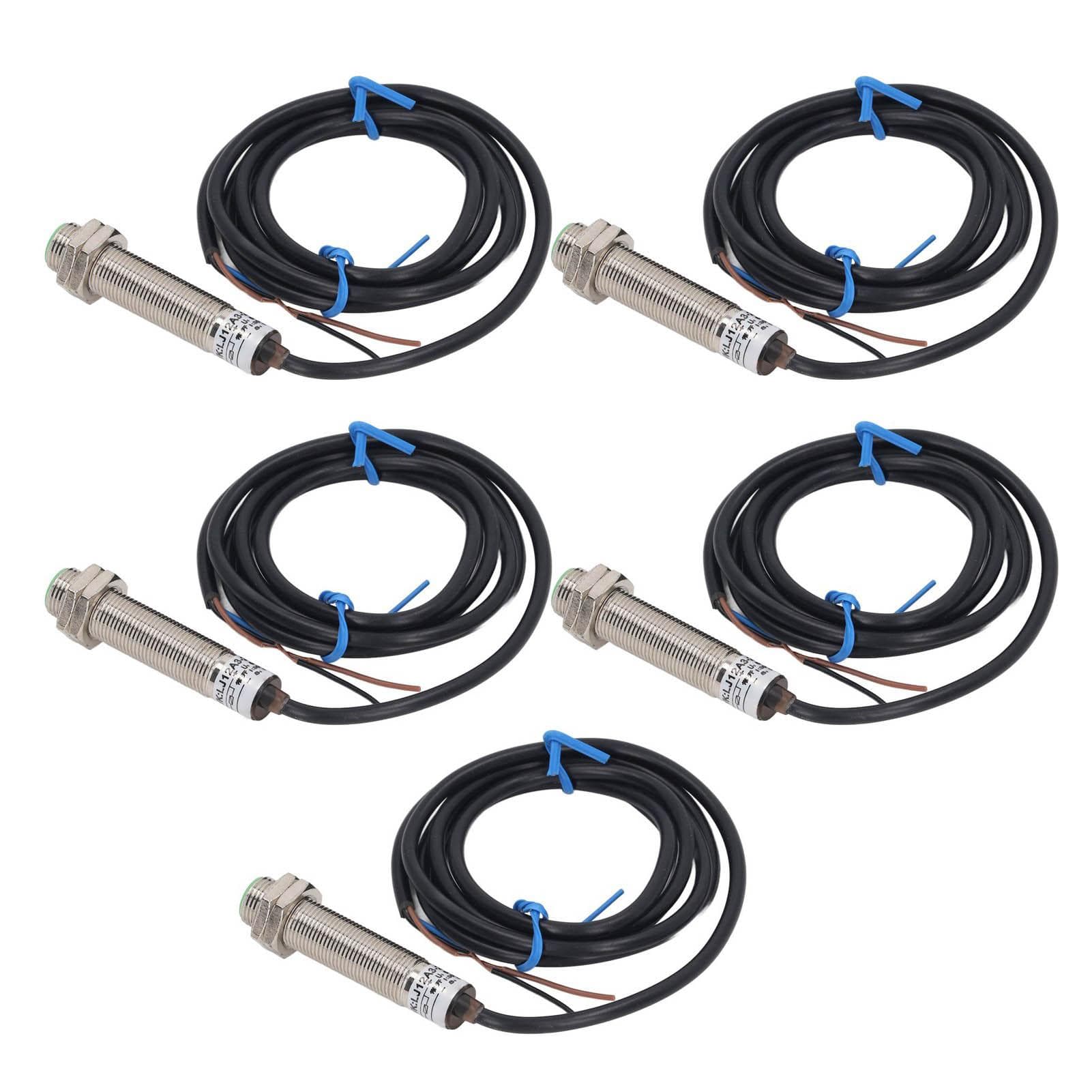

5PCS Inductive Proximity Switch M12 NPN Normally Open Distance Detection Sensor 6?36VDC 2mm
Koogeelife|SKU 1013230022711vdfdswv
About this item
- Feature: 1. MAIN PURPOSE: This sensor is an component for detection, control and contactless switch, with NPN normally open output, with 2mm action distance. 2. GOOD PROTECTION: Has power supply reverse connection protection, short circuit protection and non contact detection device, to ensure high accuracy. 3. WORKING PRINCIPLE: When the sensing surface of the object proximity switch reaches the operating distance, it does not need mechanical contact and apply any pressure. 4. APPLICABLE SCENES: Can be used in automatic control system, for limit, counting, positioning control and automatic protection, etc., suitable for machine tools, etc. 5. LED INDICATOR: When the proximity switch approaches the target object, it sends out a control signal, and the red LED indicates the working status of the sensor. Specification: Item Type: Proximity Sensor Material: ABS Product Voltage: 636VDC Maximum Output Current: 300mA Action Distance: 2mm Repetitive Positioning Accuracy: 0.02mm Working Frequency: 150Hz Output: NPN Normally Open Working Temperature: 25 celsius 75 celsius Protection Grade: IP65 Withstand Voltage: 1500V Per MIN. Package List: 5 x Proximity SensorsMAIN PURPOSE: This sensor is an component for detection, control and contactless switch, with NPN normally open output, with 2mm action distance. GOOD PROTECTION: Has power supply reverse connection protection, short circuit protection and non contact detection device, to ensure high accuracy. WORKING PRINCIPLE: When the sensing surface of the object proximity switch reaches the operating distance, it does not need mechanical contact and apply any pressure. APPLICABLE SCENES: Can be used in automatic control system, for limit, counting, positioning control and automatic protection, etc., suitable for machine tools, etc. LED INDICATOR: When the proximity switch approaches the target object, it sends out a control signal, and the red LED indicates the working status of the sensor.
