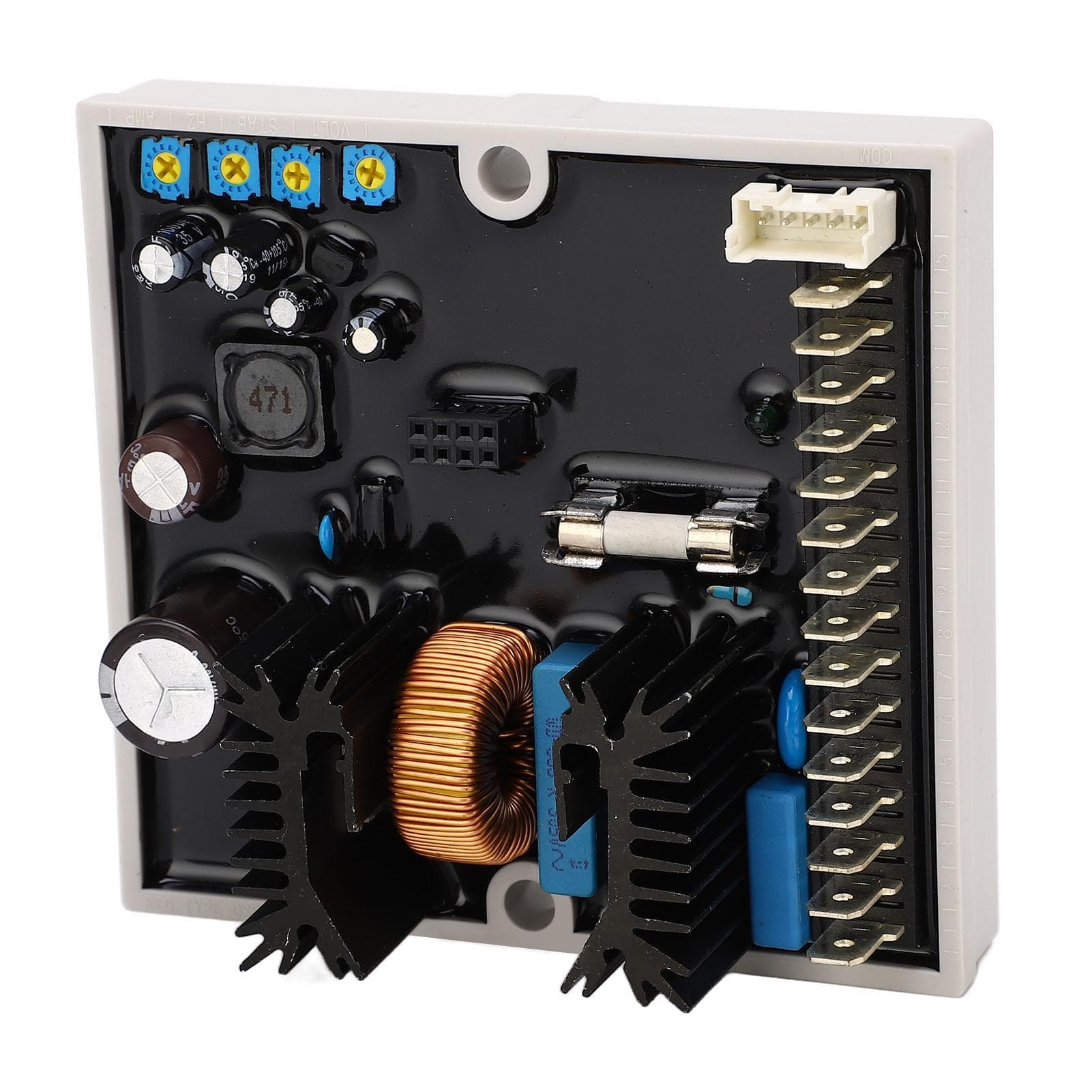

AVR Module Automatic Voltage Regulator Realtime Monitoring Excitation Regulator Board for Meccalte

About this item

• Feature: 1. Fully Digitally Controlled: Our automatic voltage regulator is fully digitally controlled and installed as standard on all for ECO and for ECP models and suitable for Meccalte A6762. 2. Rapid Connect: The automatic voltage regulator connection speeds up the connection process via 15 rapid connect or rapid disconnect connectors. 3. Standard Single Phase Induction: The automatic voltage regulator is available as standard for the for MAUX system and for the PMG ma system, where single phase induction is standard. 4. Multiple Connections: The automatic voltage regulator is available via an external communication board (for DXR or for DL1), a computer connection (for RS232 or USB) or a PLC connection (RS485). 5. Realtime Monitoring: Automatic voltage regulators have realtime monitoring performance (voltage, frequency or status) and downloadable alarm reports. Specification: Item Type: Voltage Regulator Material: ABS Variable Voltage Power Supply: 40VAC To 270VAC Frequency Range: 12Hz72Hz Voltage Regulation Accuracy: +1percent Maximum Continuous Output Current: 4ADC Ambient Temperature: 25 degrees C To +70 degrees C Regulation: True RMS Or Average Measured Value (70280VAC) Transient Power Drop And Overvoltage: + 15percent Or Less Voltage Recovery Time: Within +3percent Of Set Value, Less Than 300 Ms Parameters (Programmable Via Software): VOLT, STAB, AMP and Hz can be set via trimmer (default), 50 60Hz via jumper (default). Package List: 1 x Automatic Voltage Regulator1 x Fuse1 x ManualFully Digitally Controlled: Our automatic voltage regulator is fully digitally controlled and installed as standard on all for ECO and for ECP models and suitable for Meccalte A6762. Rapid Connect: The automatic voltage regulator connection speeds up the connection process via 15 rapid connect or rapid disconnect connectors. Standard Single Phase Induction: The automatic voltage regulator is available as standard for the for MAUX system and for the PMG ma system, where single phase induction is standard. Multiple Connections: The automatic voltage regulator is available via an external communication board (for DXR or for DL1), a computer connection (for RS232 or USB) or a PLC connection (RS485). Realtime Monitoring: Automatic voltage regulators have realtime monitoring performance (voltage, frequency or status) and downloadable alarm reports.
