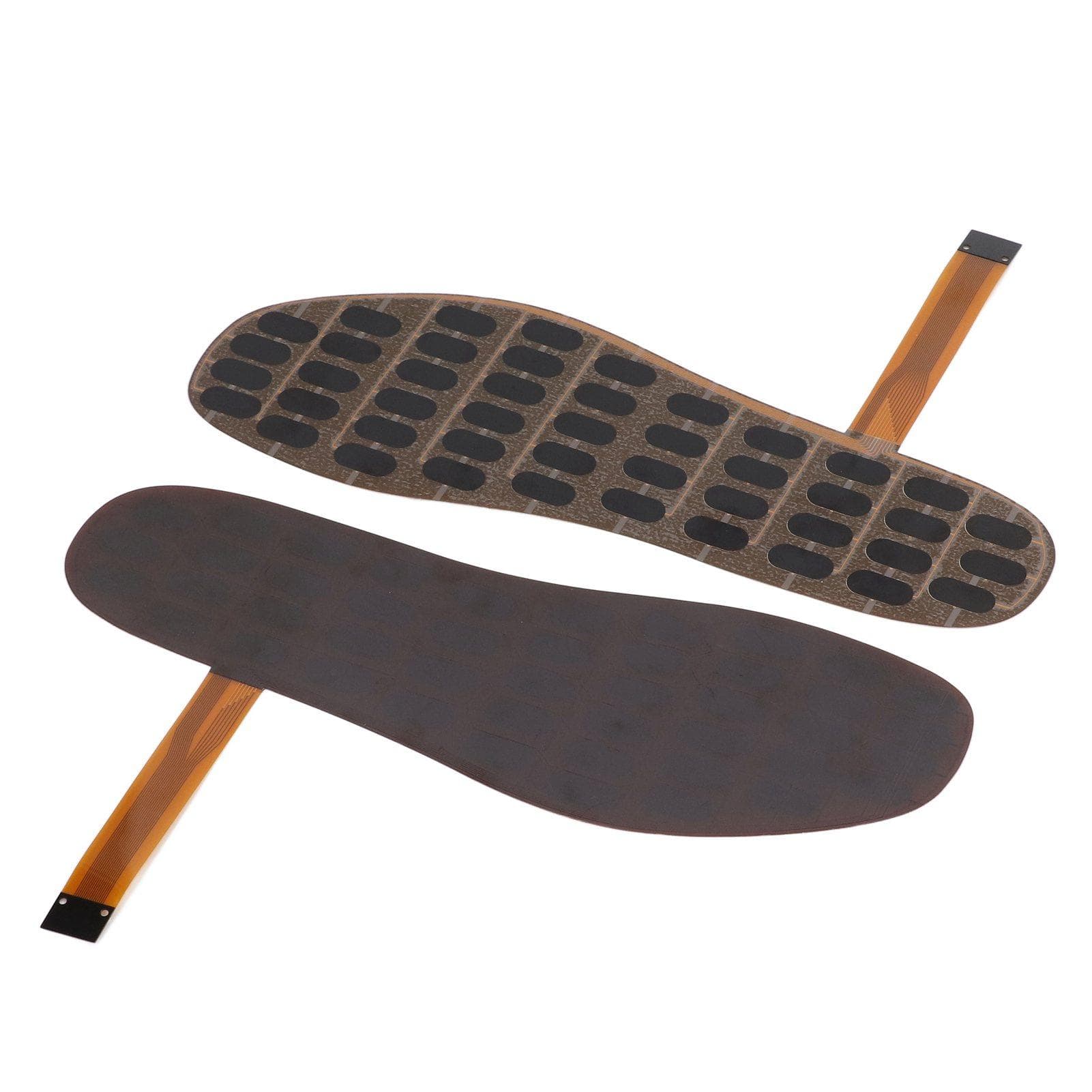

2 Pcs Foot Pressure Sensor 42 Size 45 Independent Induction Areas Quick Response Foot Pressure

About this item

• Feature: 1. Multi Functions: This foot pressure sensor can be used for pedometer, gait analysis, foot force analysis, foot correction analysis and more applications. 2. Reasonable Design: The foot pressure sensor adopts a reasonable mechanical design of human foot to provide the most efficient and practical sensing. 3. Induction Principle: The output resistance of the flexible film pressure sensor changes with the change of external pressure, with excellent force sensing and quick response. 4. 45 Independent Areas: The pressure sensor has 45 independent sensing areas, which are arranged in 10 rows and 6 columns to ensure that the whole foot pressure can be sensed. 5. Stable Connection: There are 16 interface cables in total, which adopt 1mm spacing, 16Pin, 0.3mm thick plug and pull interfaces, ensures good connection and transmission. Specification: Item Type: Foot Pressure Sensor Material: Polyester film, nanometer pressure sensing material Size: 42 (equivalent to 7.5 UK and 8.5 US) Thickness: Approx. 0.5mm0.02in Style: Flaky, flexible Trigger Force: 0.1kg Pressure Range: 0.1kg to 15kg and above Pressure Action Mode: Soft contact pressing Activation Time: Less than 10ms Operating Temperature: 20 celsius to +65 celsius Durability: More than 1 million times Resistance Range: 0.5k Ohm to 50k Ohm Response Time: Less than 1ms Typical Applications: (Intelligent insole) pedometer, gait analysis, foot force analysis, foot correction analysis Introduction: Plantar pressure sensor has 45 independent sensing areas, adopts a 10 row and 6 column sensing area layout, and a total of 16 interface cables, the interface cables adopt 1mm pitch, 16Pin, 0.3mm thick plug and unplug interfaces. A flexible membrane pressure sensor in which the output resistance of the sensing area changes with the change of external pressure. Package List: 2 x Foot Pressure Sensor Note: The membrane pressure sensor is a sensitive device. In complex environments, such as stepping on or uneven surfaces, the sensor needs to be protected to increase its service life.Multi Functions: This foot pressure sensor can be used for pedometer, gait analysis, foot force analysis, foot correction analysis and more applications. Reasonable Design: The foot pressure sensor adopts a reasonable mechanical design of human foot to provide the most efficient and practical sensing. Induction Principle: The output resistance of the flexible film pressure sensor changes with the change of external pressure, with excellent force sensing and quick response. 45 Independent Areas: The pressure sensor has 45 independent sensing areas, which are arranged in 10 rows and 6 columns to ensure that the whole foot pressure can be sensed. Stable Connection: There are 16 interface cables in total, which adopt 1mm spacing, 16Pin, 0.3mm thick plug and pull interfaces, ensures good connection and transmission.
