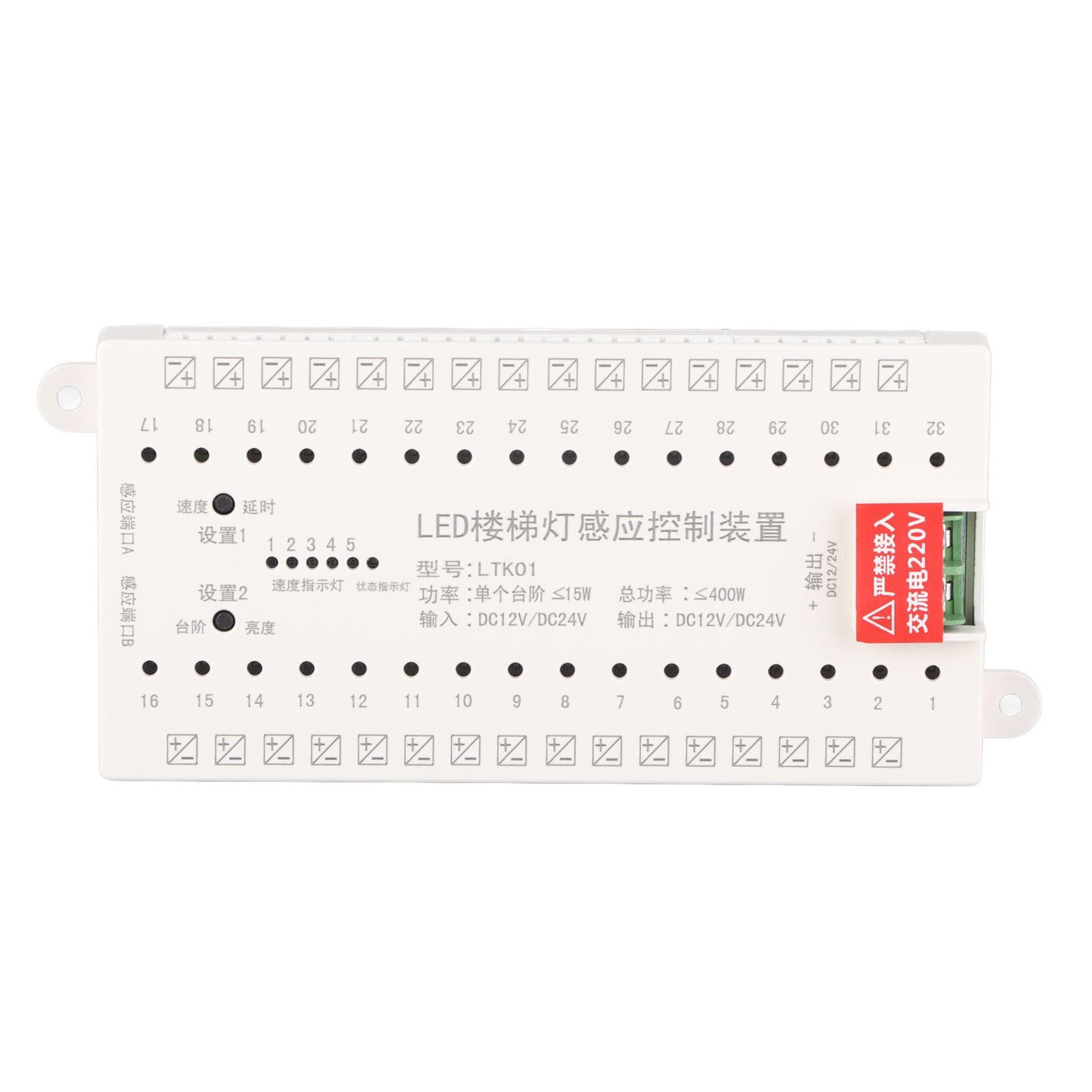

DC12V24V LED Light Human Body Induction Kit Smart Stair Step Light Sensor Controller

About this item

• Feature: 1. SMART INDUCTION: LED step stair light induction controller kit, adopts intelligent human body induction design, the control range can reach 30 meters. 2. EASY TO INSTALL: The controller has 32 interfaces, and the required light strips are inserted in sequence when using, which is easy to install and operate. 3. MULTIPLE FUNCTION: With induction control, lighting speed control, brightness control and lighting delay design, with complete function and strong practicability. 4. GOOD PROTECTION: The induction light controller has IP20 protection level, which has easy installation, as well as safe and reliable operation. 5. SIMPLE SETTING: With 5 level brightness setting and lighting speed setting, it is widely used in home, hotel or shopping mall, etc. Specification: Item Type: LED Light Induction Kit Product Model: LTK01 Input Voltage: DC12VDC24V Output Voltage: DC12VDC24V Output Power: Single Step less than 15W, Total Power: less than 400W Ports: 32 Induction Head: 2 (AB) Protection Class: IP20 Signal Mode: Human Body Induction Control Method: Induction Control Control Range: Approx. 30 meter 98.4ft Interface Type: For DuPont Interface Applicable Scene: Home, hotel, bar Insert the LED strips into the controller ports of the corresponding stair steps in sequence. For Example: The lamps on the first step are directly inserted into the interface 1 corresponding to the controller; the lamps on the second step are directly inserted into the interface 2 corresponding to the controller; the lamps on the third step are directly inserted into the interface 3 corresponding to the controller; and so on This controller has 32 ports. According to the actual situation, you can insert the required light strips in order and do not need to pay attention to the redundant ports. You can also add light strips later. Lamp Controller Interface: For DuPont interface, left +, right ? LED Stair Light Sensor Controller Operating Instruction: Number of Stair Steps Settings: Press and hold the Settings 2 button for 2s, the red light flashes, and then press the Settings 1 button to select the number of stairs to set. After selecting, release the hand for 5s and the red light will turn off, and the setting is complete. Lighting Speed Setting: Press and hold the Setting 1 button for 2s, the red light flashes, and then press the Setting 1 button to set the speed 1?5, 1 is the slowest, 5 is the fastest; The light goes out and the setting is complete. Brightness Settings: When the LED Light is on, press the Setting 2 button to enter the 5 level brightness selection lighting delay setting: Press and hold Setting 1 button for 3s, enter the delay settings 1?5 levels, respectively, the first level is a delay of 10s, the second level is 20s, the third level is 30s, and the fourth level is 40s, fifth level is 50s.. Package List: 1 x LED Light Induction Controller2 x Induction Heads2 x Coils32 x Connectors1 x Neutral Wire1 x Fire Wire1 x Sticker4 x Screws Note: 1. This product is low voltage DC12V?24V. It needs to be connected to a transformer and not directly connected to AC 220V, so as not to burn out the controller.2. Please operate the light connection under the condition of power failure. After the operation is completed, check the lamps and lines before turning on the power. If the lights or lines are not connected properly, there may be a short circuit, causing the controller port burn.3. This product is not waterproof and fireproof, please do not immerse it in water or use it near a fire source.Wiring Considerations1. The product is limited to use in indoor dry environment. Strong wind, strong heat, strong shaking and other environments may cause the sensor to fail. The sensing angle is 120 degrees, the sensing distance is 1?3 meters, and the sensing head is the most inspirational for people.2. Arrange the wires according to the actual project layout, which will not be affected.3. The controller is installed according to the convenient installation location.4. The AB sensor head needs to be fixed with screws.5. The input power supply is based on the actual number of lamps and watts, and the power supply with the appropriate power wattage is selected.SMART INDUCTION: LED step stair light induction controller kit, adopts intelligent human body induction design, the control range can reach 30 meters. EASY TO INSTALL: The controller has 32 interfaces, and the required light strips are inserted in sequence when using, which is easy to install and operate. MULTIPLE FUNCTION: With induction control, lighting speed control, brightness control and lighting delay design, with complete function and strong practicability. GOOD PROTECTION: The induction light controller has IP20 protection level, which has easy installation, as well as safe and reliable operation. SIMPLE SETTING: With 5 level brightness setting and lighting speed setting, it is widely used in home, hotel or shopping mall, etc.
