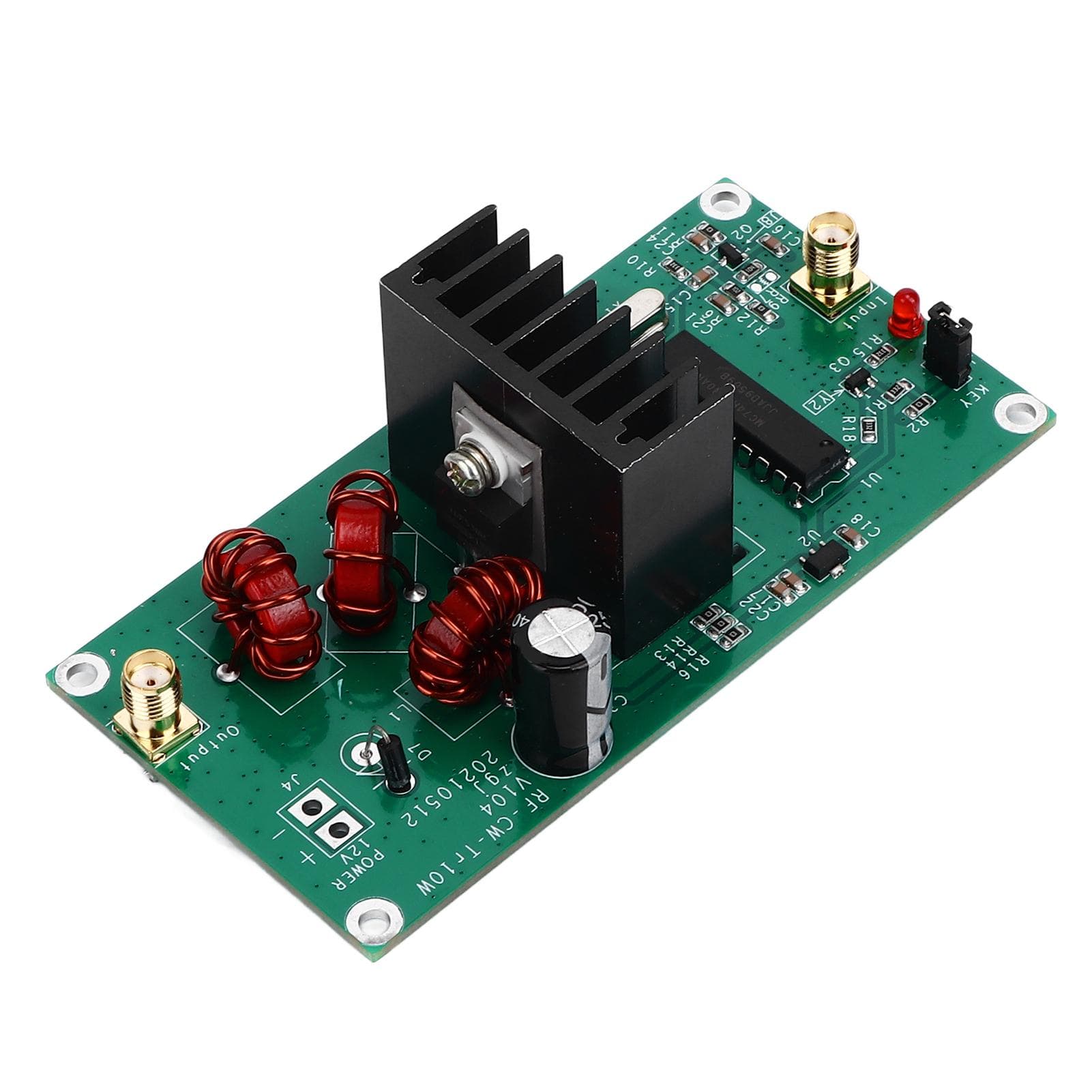

10W 13.56MHz QRP CW Radio Transmitter Module Wireless Power Amplifier Board 8?15V XR?106

About this item

• Feature: 1. LOAD CONNECTION: The high frequency power amplifier must be connected to the nominal load before powering on, 50 Ohm input and output impedance. 2. EASY TO ADJUST: 10W telegraph CW QRP transmitter module, which can fine tune the frequency, simple in structure and easy in operation. 3. TRANSMITTER MODE: With 13.56MHz operating frequency, 10W transmit power, 1.29A operating current at 12V, with stable control to avoid noise. 4. POWER AMPLIFIER MODE: The operating frequency range of the amplifier module is 815MHz, 1mW input and 10W output, with 40dB gain, stable and reliable. 5. EASY TO INSTALL: The module has a compact structure, is easy to install and does not take up space, and can directly replace the old module. Specification: Item Type: Radio Transmitter Module Model: XR106 Material: PCBA Working Voltage: 815V Working Current: 1.29A at 12V Input and Output Impedance: 50 Ohm Size: Approx. 50 x 100mm 2 x 3.9in. Package List: 1 x Radio Transmitter ModuleLOAD CONNECTION: The high frequency power amplifier must be connected to the nominal load before powering on, 50 Ohm input and output impedance. EASY TO ADJUST: 10W telegraph CW QRP transmitter module, which can fine tune the frequency, simple in structure and easy in operation. TRANSMITTER MODE: With 13.56MHz operating frequency, 10W transmit power, 1.29A operating current at 12V, with stable control to avoid noise. POWER AMPLIFIER MODE: The operating frequency range of the amplifier module is 815MHz, 1mW input and 10W output, with 40dB gain, stable and reliable. EASY TO INSTALL: The module has a compact structure, is easy to install and does not take up space, and can directly replace the old module.
