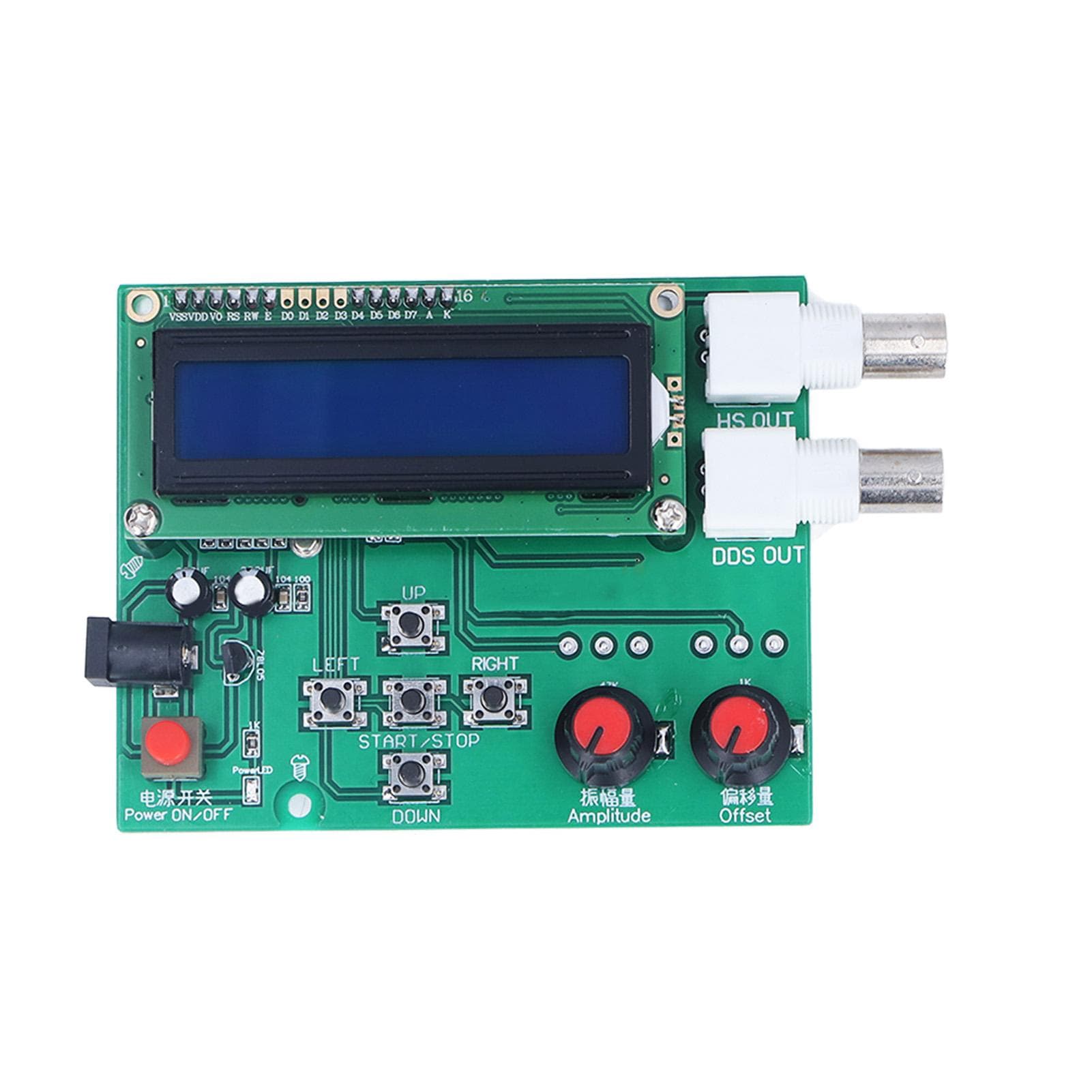

DDS Function Signal Generator Module Sine Square Sawtooth Triangle Wave Kit 1?65534Hz DC 7V?9V

About this item

• Feature: 1. 8MHZ HS OUTPUT: High speed frequency (HS) output up to 8MHz, offset from 0.5pp?5Vpp, amplitude from 0.5Vpp?14Vpp 2. RESTORE LAST USED CONFIGURATION AUTOMATICALLY: The power supply will automatically restore the last used configuration, the working voltage is DC7?9V, support 1602 LCD display 3. ADJUSTABLE SIGNAL AMPLITUDE: The offset of DDS signal amplitude can be adjusted separately by two potentiometers, DDS frequency range from 1HZ65534Hz, 1, 10, 100, 1000, 10000Hz subsection 4. VARIOUS SIGNAL WAVES SHAPES: DDS signals include sine wave, square wave, sawtooth wave, against sawtooth wave, triangle wave, Electrocardiogram wave and noise wave 5. SELECTED OUTPUT WAVEFORM: The main functions are output waveform selection, left and right output frequency, output stop or start Specification: Item Type: DDS Function Signal Generator Module Material: PCB Working Voltage: DC79V DDS Frequency Range: 1HZ65534Hz Display: 1602 LCD Segment Input Value: 1, 10, 100, 1000, 10000Hz Offset: 0.5pp5Vpp Amplitude: 0.5Vpp14Vpp The Main Function: UP output waveform selection DOWN output waveform selection Left output frequency Right output frequency + STOP or RUN: Output stop or start. Package List: 1 x DDS Function Signal Generator Module4 x Gasket Note: Please use according to the parameter voltage.8MHZ HS OUTPUT: High speed frequency (HS) output up to 8MHz, offset from 0.5pp?5Vpp, amplitude from 0.5Vpp?14Vpp RESTORE LAST USED CONFIGURATION AUTOMATICALLY: The power supply will automatically restore the last used configuration, the working voltage is DC7?9V, support 1602 LCD display ADJUSTABLE SIGNAL AMPLITUDE: The offset of DDS signal amplitude can be adjusted separately by two potentiometers, DDS frequency range from 1HZ65534Hz, 1, 10, 100, 1000, 10000Hz subsection VARIOUS SIGNAL WAVES SHAPES: DDS signals include sine wave, square wave, sawtooth wave, against sawtooth wave, triangle wave, Electrocardiogram wave and noise wave SELECTED OUTPUT WAVEFORM: The main functions are output waveform selection, left and right output frequency, output stop or start
