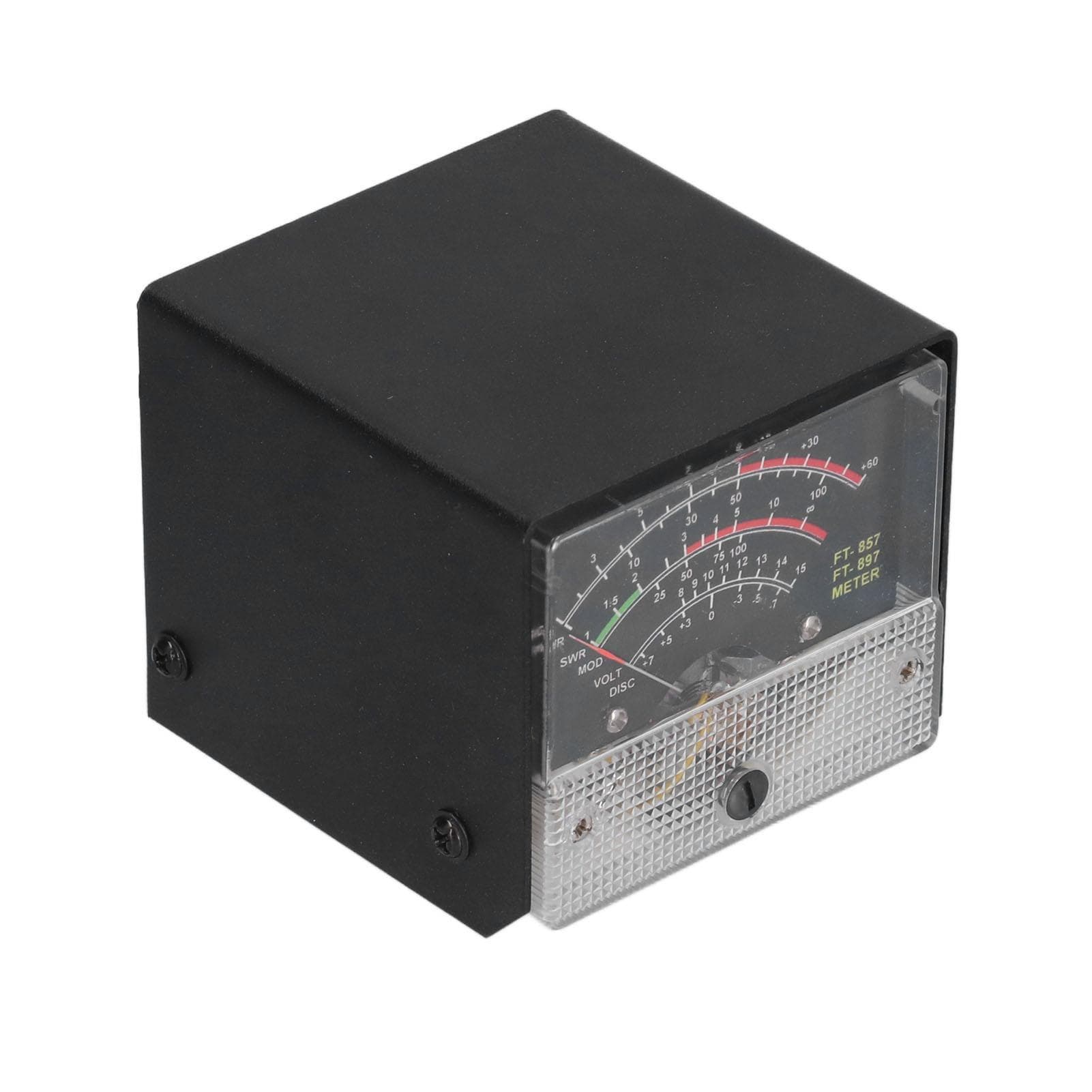

SWR Power Meter External S Receive Display Electronic Component Metal Case Cover FT?857 FT?897Black

About this item

• Feature: 1. Clear Display: Provide clear display of automatic level control voltage, modulation level, standing wave ratio and power supply voltage 2. High Performance: Made with fine workmanship, provide high performance and super stability, easy to operate 3. Aluminum Alloy Shell: The aluminum alloy shell is more textured, not easy to fall or collision, with high quality and excellent durability 4. Easy To Operate: This external SWR power meter is easy to operate, you just need to follow with instructions 5. Accurate Measurement: Standing wave ratio receive display meter provide accurate measurement and clear readings, very practical Specification: Item Type: SWR Power Meter Material: Aluminum alloy + ABS Purpose: Power meter Receive Display Settings: 1. Press[FUNC]key to enter the setting menu and enable the extended menu. 2. Turn[SELECT]to call up the setup menu item No060 [MTR ARX SEL]. 3. Rotate[DIAL]to Select External Instrument Display: SIG: Input signal strength display CTR: Discriminator Center Meter VLT: Battery voltage NA: Blank FS: Buckle on the meter 1mA full scale output signal to calibrate the standard external meter OFF: Turn off the meter. 4. Press[FUNC]key to save the setting and exit the setting menu. Transmit Display Settings: 1. Press[FUNC]key to enter the setting menu and enable the extended menu. 2. Turn[SELECT] to call up the setup menu item No061 [MTR ATX SEL]. 3. Rotate[DIAL]to Select External Instrument Display: PWR: Transmit power display ALC: Automatic level control voltage display MOD: Modulation level display SWR: SWR display VLT: Display power supply voltage NA: Blank OFF: Turn off the meter. The Calibration Method Is As Follows: 1. Press[FUNC]key to enter the setting menu and enable the extended menu. 2. Turn[SELECT]to call up the setup menu item No060 [MTR ARX SEL]. 3. Rotate[DIAL]to select FS. 4. Use a small flat head screwdriver to adjust the back of the calibration adjustment hole to make the pointer of the meter head to full scale. 5. The calibration is complete.. Package List: 1 x SWR Power Meter Note: 1. If the menus with numbers 60 and 61 are not found, these two single selection concealed menus are used. Long press the F key to open the menu settings, the first menu is set to ON, press the F key to open, exit, save, and hide the menu.2. The instrument has been calibrated when it leaves the factory, but it is not ruled out that the static pointer does not return to zero due to turbulence. In this case, the instrument can adjust the self zero screw calibration on the side of the mask.Clear Display: Provide clear display of automatic level control voltage, modulation level, standing wave ratio and power supply voltage High Performance: Made with fine workmanship, provide high performance and super stability, easy to operate Aluminum Alloy Shell: The aluminum alloy shell is more textured, not easy to fall or collision, with high quality and excellent durability Easy To Operate: This external SWR power meter is easy to operate, you just need to follow with instructions Accurate Measurement: Standing wave ratio receive display meter provide accurate measurement and clear readings, very practical
