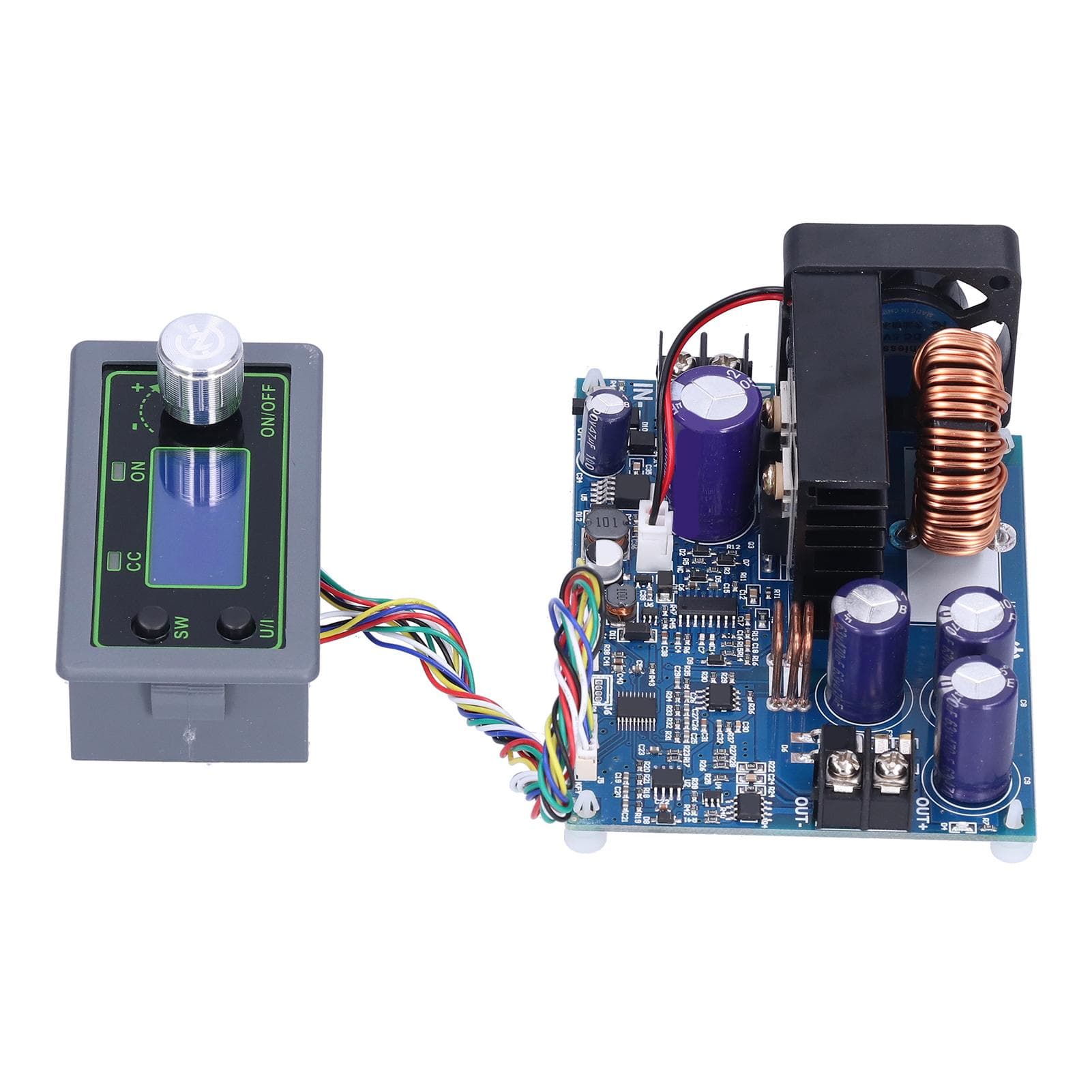

Numerical Control Voltage Regulator Synchronous Rectification Technology Accurate LCD Display

About this item

• Feature: 1. CNC adjustment, precise and fast, step?down output, output voltage 0?50.00V, limit current 0?20.00A adjustable. 2. Various software protection mechanisms, adjustable thresholds, after the parameters exceed the protection threshold, the output will be automatically turned off. 3. Using synchronous rectification technology, high conversion efficiency: efficiency above 90percent . 4. LCD can display input, output voltage, output current, output power, output capacity, output time. 5. Output end does not burn through backflow, set the module to turn onoff by default, increase the heat sink, and strengthen the heat dissipation. Specification: Item Type: Numerical Control Voltage Regulator Material: Printed Circuit Board Model: WZ5020L Input Voltage Range: 655.00V Input Voltage Resolution: 0.01V Output Voltage Range: 050.00V Output Voltage Resolution: 0.01V Output Current Range: 020.00A Output Current Resolution: 0.01A Output Power Range: 01000W Input Voltage Accuracy: +(1percent +5 Words) Output Voltage Accuracy: +(0.3percent +5 Words) Output Current Accuracy: +(0.5percent +5 Words) Typical Output Ripple: 150mV Normal Working Temperature Range: 10 celsius ~40 celsius Capacity Measurement Range: 0999.9AH Statistical Error of Capacity Energy: +2percent Statistical Time Range: 0100 Hours Stepdown Working Mode: Differential Pressure>0.05percent +1V Soft Start: SupportPurpose: For Depressurization Applicable Scenarios: For Electronic Equipment, Mechanical Engineering. Package List: 1 x Numerical Control Voltage Regulator Note: 1. It is strictly forbidden to connect the positive IN+ and negative IN? of the module input, and the module input IN? and output OUT? are forbidden to short?circuit, otherwise the module may be burnt out.2. Make sure that the power of the power supply is always greater than the power required by the output load.3. This module is a step?down module, the input voltage must be higher than the output voltage, and a certain margin is left. If you want to output at full load, the input voltage should be 55V.4. The high?power use of this module is very hot and the temperature is high. Be careful of burns! Please pay attention to ventilation and heat dissipation when using high power for a long time.5. The module has an input under?voltage protection function, the default is about 5.8V (can be set), when the value is lower than this value, it will automatically cut off the output (note that the voltage at the module port is lower than the under?voltage protection threshold, when the input current compare When it is large, don t ignore the partial voltage on the input wire).6.In order to ensure the accuracy of calibration, calibration voltage?voltage above 12V can start calibration; calibration current?current above 1A can start calibration.CNC adjustment, precise and fast, step?down output, output voltage 0?50.00V, limit current 0?20.00A adjustable. Various software protection mechanisms, adjustable thresholds, after the parameters exceed the protection threshold, the output will be automatically turned off. Using synchronous rectification technology, high conversion efficiency: efficiency above 90percent . LCD can display input, output voltage, output current, output power, output capacity, output time. Output end does not burn through backflow, set the module to turn onoff by default, increase the heat sink, and strengthen the heat dissipation.
