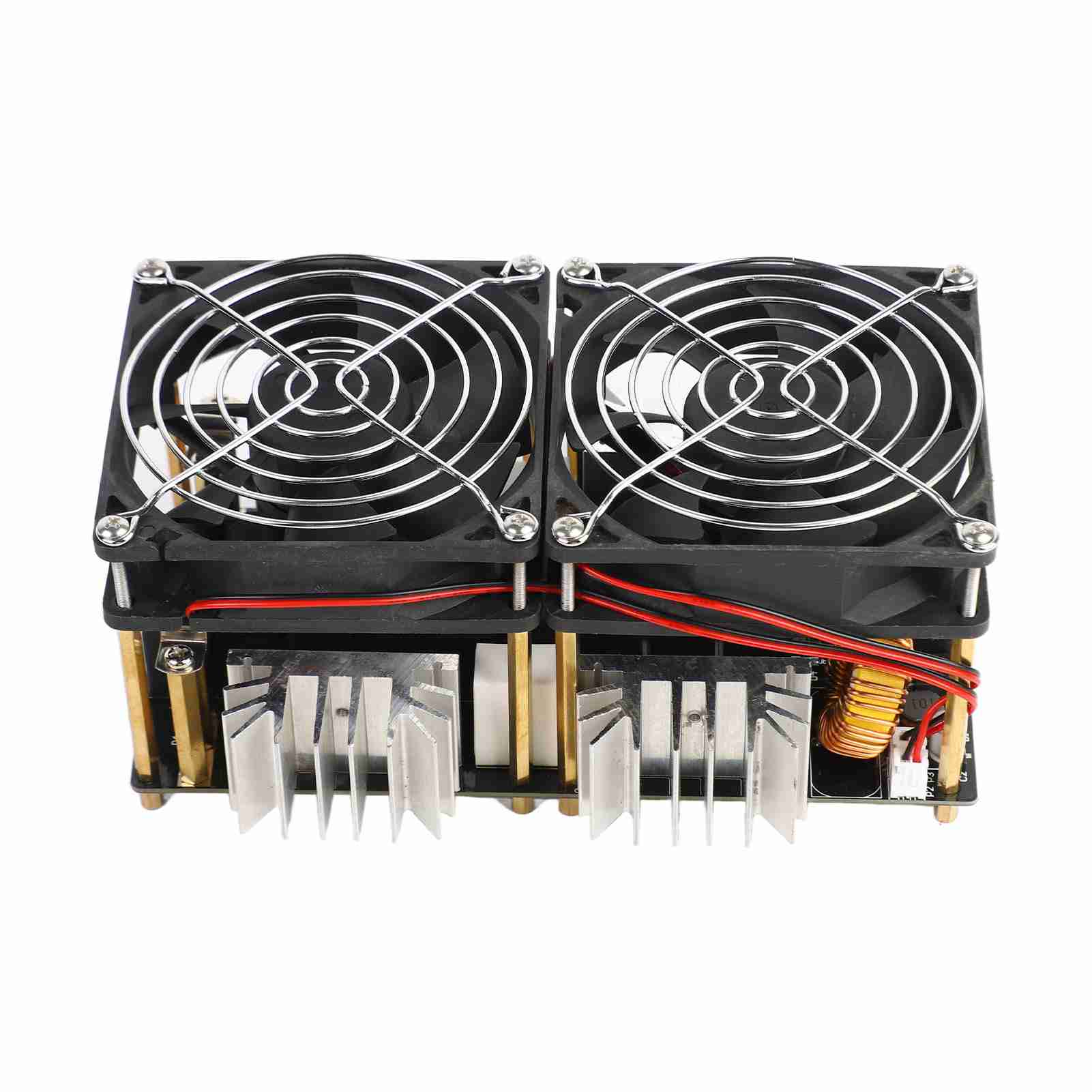

Heating Board 2000W BYS459?1500 ZVS Low Voltage Induction Module High Frequency Induction

About this item

• Feature: 1. The heating board is made of military?grade PCB, ensuring stable performance. 2. The newly designed ZVS induction heating product has a maximum power of 2000W. 3. The product adopts a large PCB layout design and a large heat sink, which has good heat dissipation and high power. 4. The output end uses three M4 standoff in parallel, which can be connected to other outputs such as high?voltage packages. 5. Six IRFP260 and 12 capacitors are used for parallel resonance, which has high power and high efficiency. 6. Used for heat treatment for small parts such as quenching and annealing; it can be matched with graphite crucible to smelt gold, silver, copper, aluminum and other metals Specification: Item Type: Heating Board Model: BYS4591500 Material: ABS+PCB Power: 2000W Uses: Heat treatment for small parts such as quenching and annealing; it can be matched with graphite crucible to smelt gold, silver, copper, aluminum and other metals; it can be used as discharge, for Marx generator, highvoltage inverter power supply, etc. Input Voltage: 12V48 (recommended above 36V) Power Requirements: Less than 12V more than 10A, 15V above more than 20A Maximum Power: 2000W Maximum Current: 50A. Package List: 1 x Heating Board1 x Brass Pipe Note: 1. The power of induction heating is very high. In addition to the heat generated by the board and components, the heat generated by the copper tube is also very large. 2. You must pay attention when using switching power supply, because high?power switching power supplies generally have a slow?start function, that is, the output voltage rises slowly at the beginning, and if the voltage is turned on before the induction heating circuit rises to 10V, it will be due to the voltage If it is not enough, the circuit will not vibrate, so that the two MOS tubes will be turned on at the same time and the components will be burned. Therefore, the induction heating circuit must be connected after the switching power supply voltage is stable. 3. When heating metal objects, try not to heat too large metal, otherwise it may be dangerous due to overloading of power; it is better to add a 50A fuse or ammeter and air switch when using it, both of which can be selected in the package . 4. Although this driver board can withstand currents above 50A, it is recommended not to exceed 48V55A for long?term continuous work in order to prevent accidents and damage. 5. The heating coil that comes with the package has a Diameter of 60mm and a design voltage of 86V. If you use a voltage above 40V for power supply, you must use a heating coil with an inner Diameter of 60mm or more. The water pump uses a 12V DC power supply. Please use a voltage regulator module to supply power separately to avoid burning the fan and water pump. . 6. For induction heating, the copper pipe in the package of this product should be used, or it should be wound according to the standard of 10 turns with an inner Diameter of 60mm.The heating board is made of military?grade PCB, ensuring stable performance. The newly designed ZVS induction heating product has a maximum power of 2000W. The product adopts a large PCB layout design and a large heat sink, which has good heat dissipation and high power. The output end uses three M4 standoff in parallel, which can be connected to other outputs such as high?voltage packages. Six IRFP260 and 12 capacitors are used for parallel resonance, which has high power and high efficiency.
