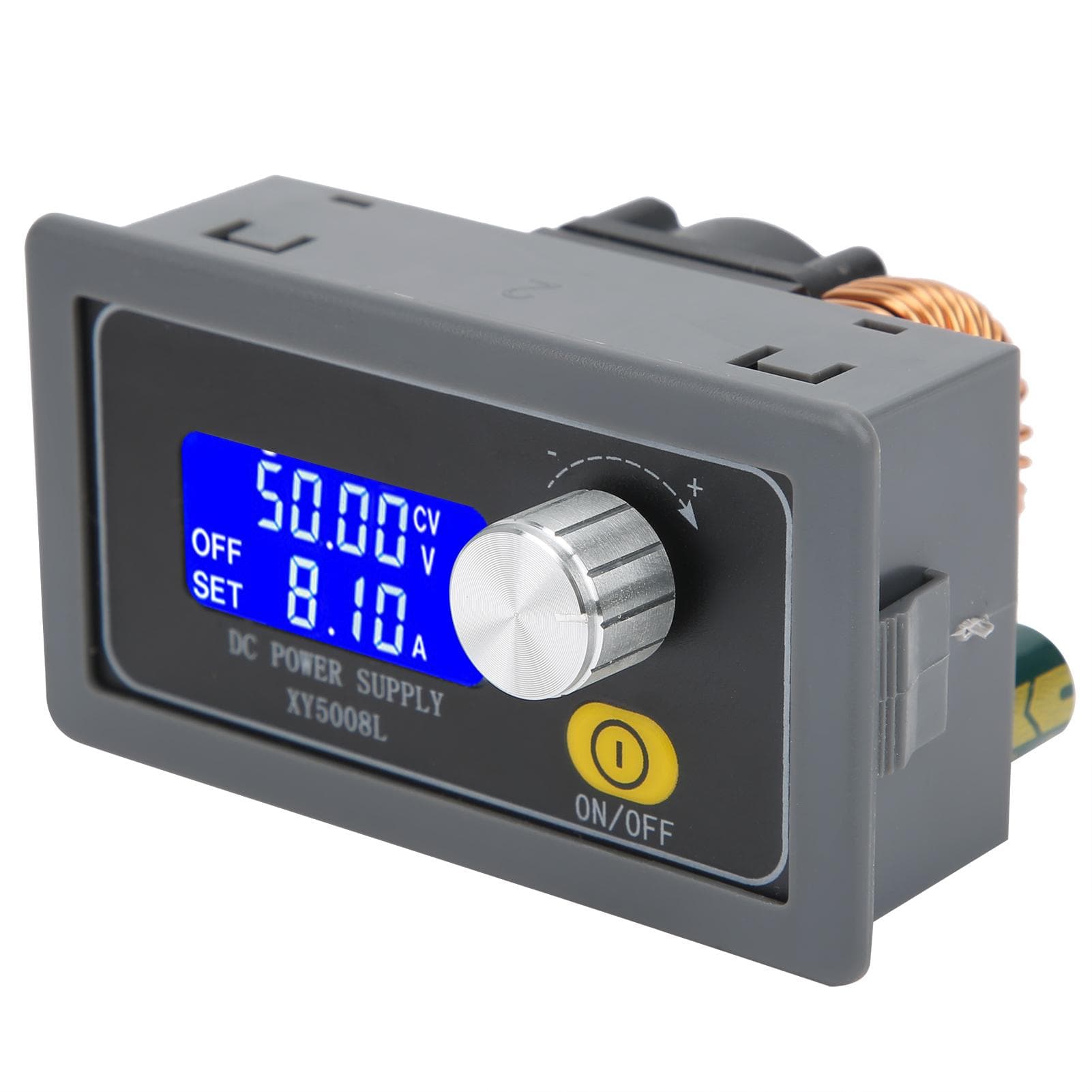

DC Power Supply CNC Adjustable Constant Voltage Current Regulator 8A 400W DC6.0?55V XY5008L

About this item

• Feature: 1. The product is simple and easy to operate, small in size and convenient to carry 2. With a variety of software protection mechanisms, and the protection threshold is adjustable 3. After the module s working parameters exceed the protection threshold, the output is automatically turned off 4. The LCD can provide inputoutput voltage, output currentoutput poweroutput and capacityoutput time 5. Professional design and reasonable structure, the wiring is simple and convenient Specification: Item Type: DC Power Supply Model: XY5008L Material: Plastic Purpose: Display power supply voltage rise and fall Input Voltage: DC6.055V (extreme low voltage 5.5V, extreme high voltage 60V) Output Voltage: DC0V50V Output Current: 0A8.1A Output Power: 0400W Typical Output Ripple: Vpp150mv Voltage Resolution: 0.01V Current Resolution: 0.001A Voltage Accuracy: +0.4percent +1 digits Current Accuracy: +0.5percent +3 digits Capacity: 0999999AH Energy: 0999999WH Time: 01000 hoursProduct Size: Approx. 79 x 42mm 3.1 x 1.7in Setting Interface(how to use): 1. Long press the rotary encoder button for 3 seconds to enter the setting interface 2. Adjust the size of the parameter through the rotary encoder potentiometer, support rapid rotation (rapid increasedecrease), short press the rotary potentiometer button to switch the parameter to be adjusted 3. In the maximum capacity (OAH) maximum energy (OPH) maximum operating time (OHP) interface, short press the ONOFF button to select the corresponding function on or off, if it is off, it will display 4. In the maximum capacity (OAH)maximum energy (OPH) parameter interface, long press the ONOFF button to select the capacity range (9.999Ah99.99Ah 999.9Ah9999Ah, 9.999Wh99.99Wh 999.9Wh9999Wh ) 5. After setting the parameters, press and hold the encoder potentiometer button for 3 seconds to exit the setting interface, and the setting parameters are automatically saved . Package List: 1 x DC Power SupplyThe product is simple and easy to operate, small in size and convenient to carry With a variety of software protection mechanisms, and the protection threshold is adjustable After the module s working parameters exceed the protection threshold, the output is automatically turned off The LCD can provide inputoutput voltage, output currentoutput poweroutput and capacityoutput time Professional design and reasonable structure, the wiring is simple and convenient
