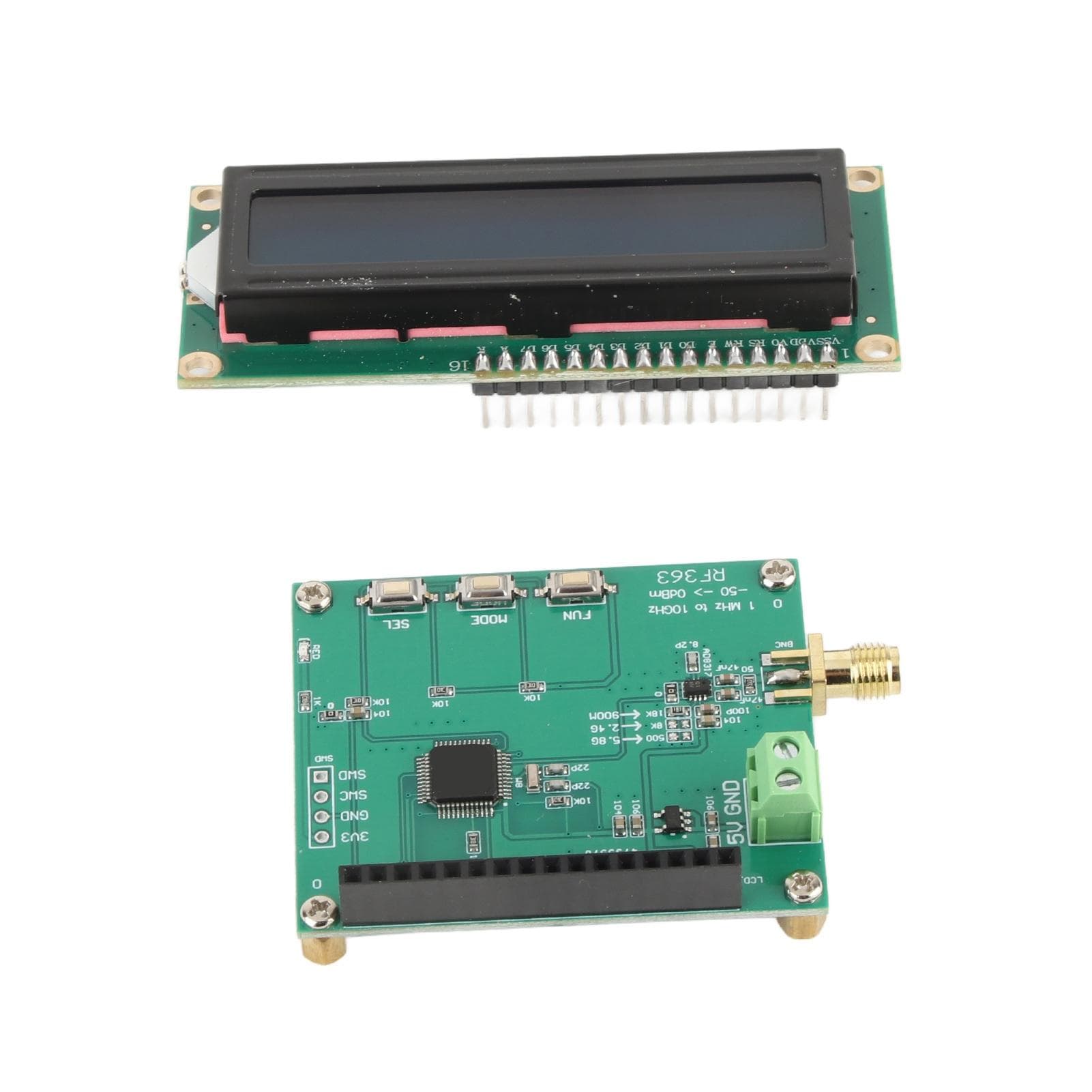

RF Power Meter 1MHz~10GHz Power Test Meter RF Power Attenuation Value Measurement

About this item

• Feature: 1. Simple structure, convenient use, stable and reliable performance, high sensitivity, and fast measurement speed. 2. Can be used for radio frequency power measurement and instrument calibration. 3. PCB adopts 1.6mm thick double?sided board, 1.5 oz copper thickness, and full tinning process to ensure good passing performance of large and small currents. 4. Simple operation, stable work, small size and low power consumption. 5. High?quality PCB, durable and long lasting use, convenient and practical. Specification: Condition: 100percent Brand New Item Type: RF Power Meter Material: PCB Measuring Power Range: 50~+0 dBm (External RF attenuator can be extended to 100dBm) Measurement Power Resolution: 0.1 dBm Measuring Frequency Range: 1~10000MHz Measuring Power: 1nW~1mW Working Voltage: 7~12 VDC Working Current: <50 mAh Working Temperature: 40 celsius ~65 celsius Storage Temperature: 40 celsius ~65 celsius Interface Display and Operating Instructions: (1) Unit Description: dBm; (2) Key Description: FUN: Function key; MODE: change interface; SEL: selfadd key or selfdecrease key; 4.1, display measurement data Interface Display Font: First Line RFPOW 51.2 dBm Second Line 610uV 7nW Note: Display signal dBm value, input voltage value, and input power respectively. 4.2. Set RF power attenuation value Interface display font: First Line RF Attenuator Second Line SUB 000dB Key Operation: FUN: Function key; (select direction of addition and subtraction) Display SUB for subtraction, display ADD for addition. (Long press FUN key to save set dB value) SEL: Selfincreasing key or selfdecreasing key; Note: Connect different RF power attenuators and set corresponding attenuation coefficient to read out the correct power parameters. 5. Wiring P1 wiring definition:No. Sign Meaning 1 VDD Module s positive power supply (7V~12V) 2 GND Negative pole of power supply of module P2 wiring definition:No. Sign Meaning 1 FX Not used 2 RFRadio frequency signal input 3 GND Power negative . Package List: 1 x RF Power Module1 x DisplaySimple structure, convenient use, stable and reliable performance, high sensitivity, and fast measurement speed. Can be used for radio frequency power measurement and instrument calibration. PCB adopts 1.6mm thick double?sided board, 1.5 oz copper thickness, and full tinning process to ensure good passing performance of large and small currents. Simple operation, stable work, small size and low power consumption. High?quality PCB, durable and long lasting use, convenient and practical.
