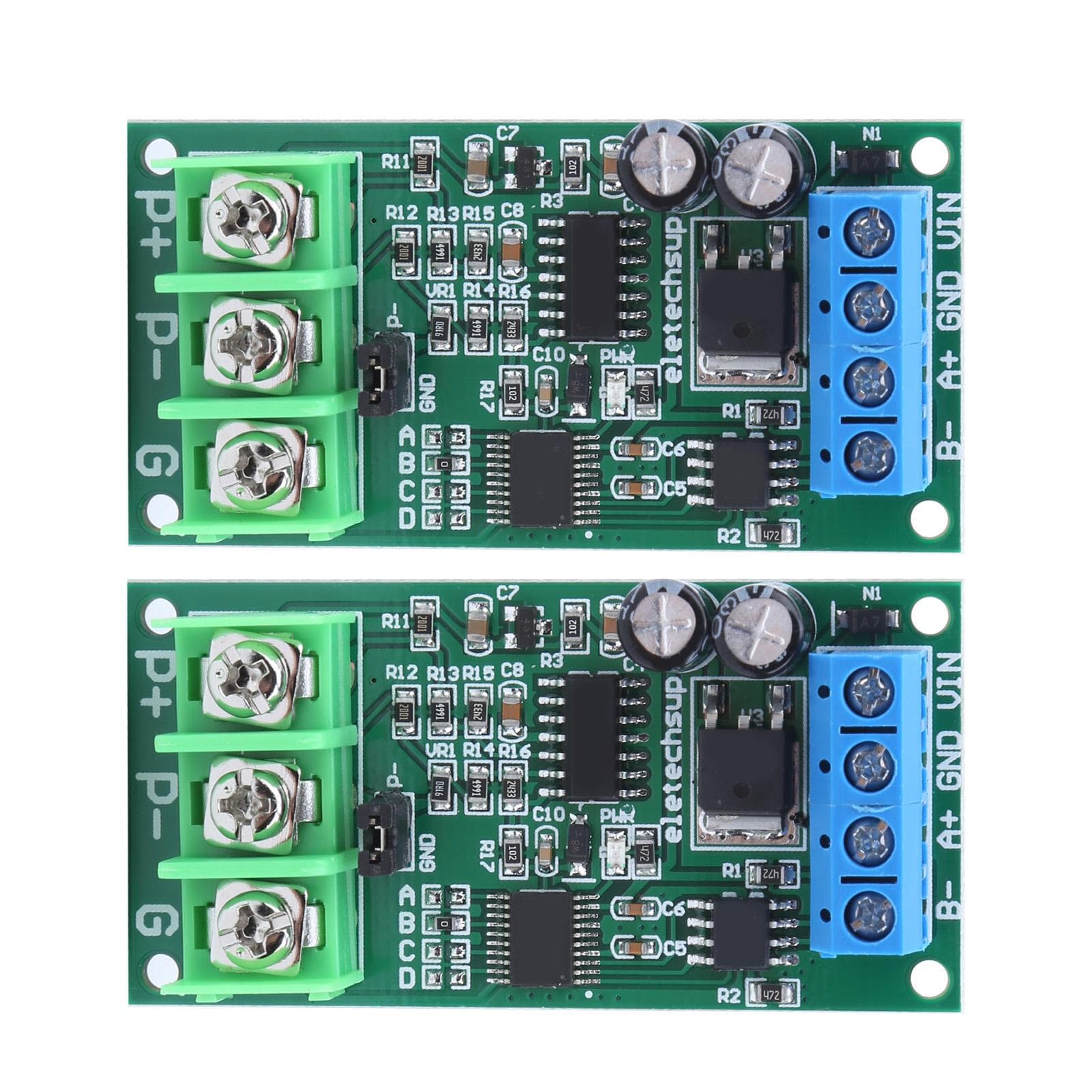

PT100 Platinum Thermal Resistance RTD Temperature Sensor Transmitter RS485 MODUBS RTU Module

About this item

• Feature: 1. Temperature and PT100 resistance values can be read, multi?functional. 2. Up to 247 modules can be cascaded by modifying the 485 address (for more than 16 modules, use R485 Repeaters). 3. High quality plastic material manufacturing ensuring maximum durability. 4. Temperature measurement range: A version ?20 celsius to +400 celsius ; B Version: ?20 celsius to +220 celsius . It is recommended to select a small scale version within the measurement range. 5. Temperature measurement accuracy is 1percent , if the temperature deviation is too large, please recalibrate. Specification: Condition: 100percent Brand New Item Type: Temperature Sensor Module Material: Plastic Function Description of PTA9B01 PT100 RS485 Sensor Module: Working Current: 8?13mA MODBUS RTU protocol, 03 read instruction, 06 write instruction. Serial Port Baud Rate: 9600 (default), N, 8,1 Up to 247 modules can be cascaded by modifying the 485 address (please use R485 Repeaters for more than 16) Temperature and PT100 resistance values can be read Adaptive Sensor: PT100 3?wire or 2?wire sensor Temperature Measurement Range: A version ?20 celsius to +400 celsius B Version: ?20 celsius to +220 celsius It is recommended to select a small scale version within the measurement range. Temperature measurement accuracy: 1percent , if the temperature deviation is too large, please recalibrate Size: Approx. 60 x 30 x 16mm 2.4 x 1.2 x 0.6in Weight: 16 g 0.6 oz(approx.) PT100 Sensor Specifications: Name: PT100 waterproof and high temperature resistant probe Diameter of Probe: Approx. 6.5mm 0.26in Probe Length: Approx. 30mm 1.18in Probe Material: Stainless steel Line Length: Approx. 0.5m 1.6ft 3 line Measuring Temperature Range: ?200~550 celsius Shell Specification: Material: ABS. Outer Diameter: Approx. 73 x 36 x 24mm 2.9 x 1.4 x 0.9in Inner Diameter: Approx. 70 x 33 x 21mm 2.8 x 1.3 x 0.8in. Package List: 1 x PTA9B01_A Module 1 x PTA9B01_B Module 1 x Sensor Line 1 x Shell Temperature and PT100 resistance values can be read, multi?functional. Up to 247 modules can be cascaded by modifying the 485 address (for more than 16 modules, use R485 Repeaters). High quality plastic material manufacturing ensuring maximum durability. Temperature measurement range: A version ?20 celsius to +400 celsius ; B Version: ?20 celsius to +220 celsius . It is recommended to select a small scale version within the measurement range. Temperature measurement accuracy is 1percent , if the temperature deviation is too large, please recalibrate.
