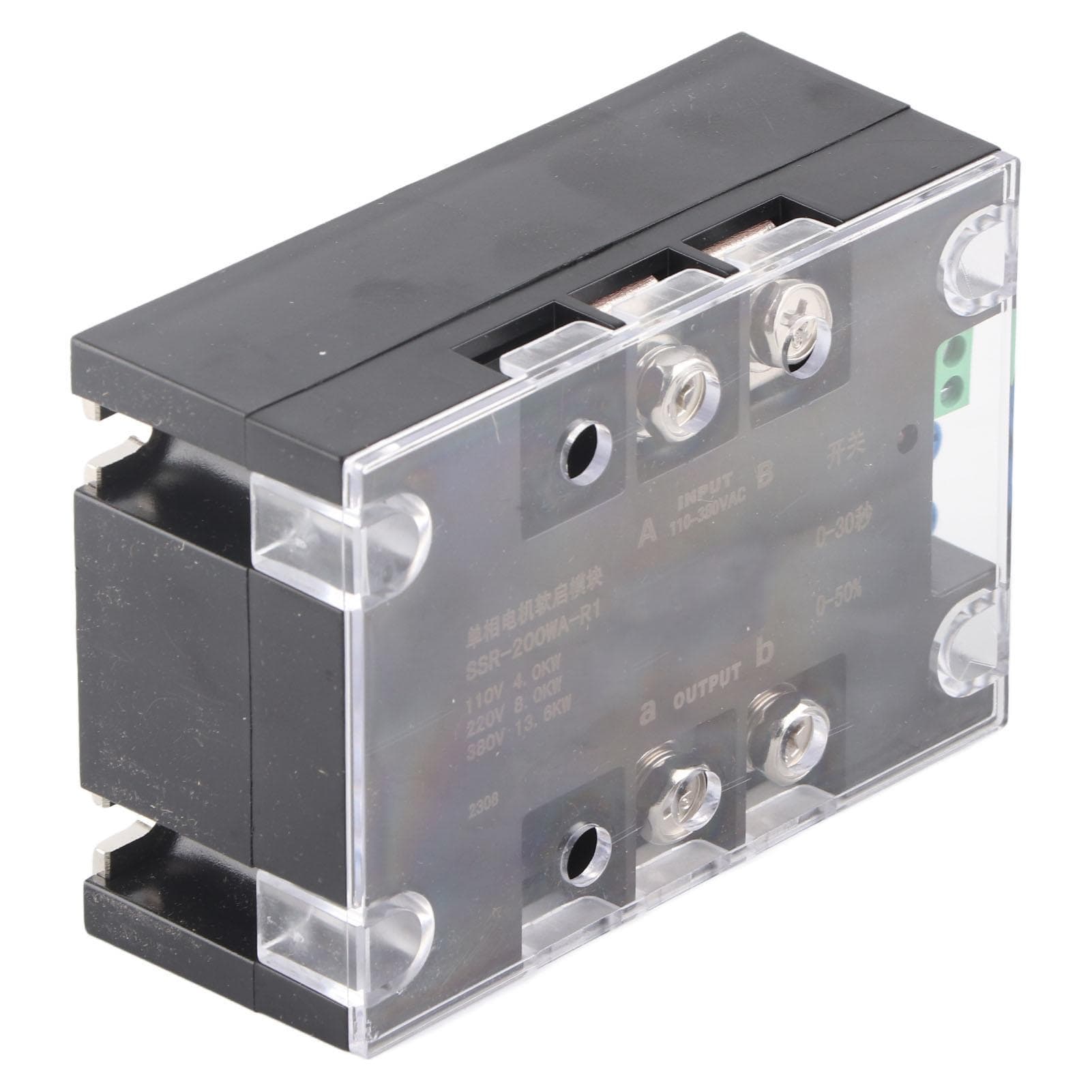

Motor Start Board Brass Bottom Industrial Control Accessory Simple Wiring Single 2?Phase

About this item

• Feature: 1. Adaptive to soft start of water pump, fan, vehicle and ordinary single?phase motor, such motor controller is with simple wiring. 2. Use the switch to control, this motor start board supports simple operation, which requires no extral step. 3. Economical and practical, motor controller keeps no need to connect bypass contactor, powerful. 4. Used easily in the practical life, the wide application of motor start module makes itself popular. 5. Single?phase motor start module supports the ability to replace adjustable auto?transformer, inverter soft start, etc. Specification: Item Type: Motor start board Type: Module Module + Radiator (optional) Model: SSR200WAR(8KW)(with soft start without soft stop) Voltage Compatibility: Singlephase 220VAC, 2phase 380VAC, Frequency: 5060Hz Soft Start Time : Adjustable from 030 seconds (the soft start time refers to the whole process of 0220V, 0380V) Starting Voltage:Adjustable from 050percent to the rated voltage (220380V) Two Ways to Use: 1. When the switch is closed, the main power supply is energized and the soft start begins. 2. Use the switch to control, start by closing the soft start, open the stop When the starting potentiometer is adjusted to half, the starting is 200V, The maximum time of the soft start potentiometer is 30 seconds, which corresponds to the full range of 380V. For Example: When Completely Adjusted to Minimum: Initial voltage 0V soft start 0 seconds (0 seconds is not recommended) Power Supply 220V: When completely adjusted to half, the initial 55V, soft start time is about 22 seconds Power Supply 380V: When completely adjusted to half, the initial 95V, soft start time is about 22 seconds Power Supply 220V: When completely adjusted to the maximum, the initial voltage of 110V to 220V takes 15 seconds Power Supply 380V: When completely adjusted to the maximum, the initial voltage 190V to 380V takes 15 seconds Size1 : Approx. 92mm 3.6in Approx. 74mm 2.9in Approx. 47mm 1.9in Approx. 104mm 4.1in Approx. 35mm 1.4in Approx. 43mm 1.7in Size 2: Approx. 125mm 4.9in Approx. 80mm 3.1in Approx. 110mm 4.3in Approx. 28mm 1.1in Approx. 100mm 3.9in. Package List: 1 x Moduaptive to soft start of water pump, fan, vehicle and ordinary single?phase motor, such motor controller is with simple wiring. Use the switch to control, this motor start board supports simple operation, which requires no extral step. Economical and practical, motor controller keeps no need to connect bypass contactor, powerful. Used easily in the practical life, the wide application of motor start module makes itself popular. Single?phase motor start module supports the ability to replace adjustable auto?transformer, inverter soft start, etc.
