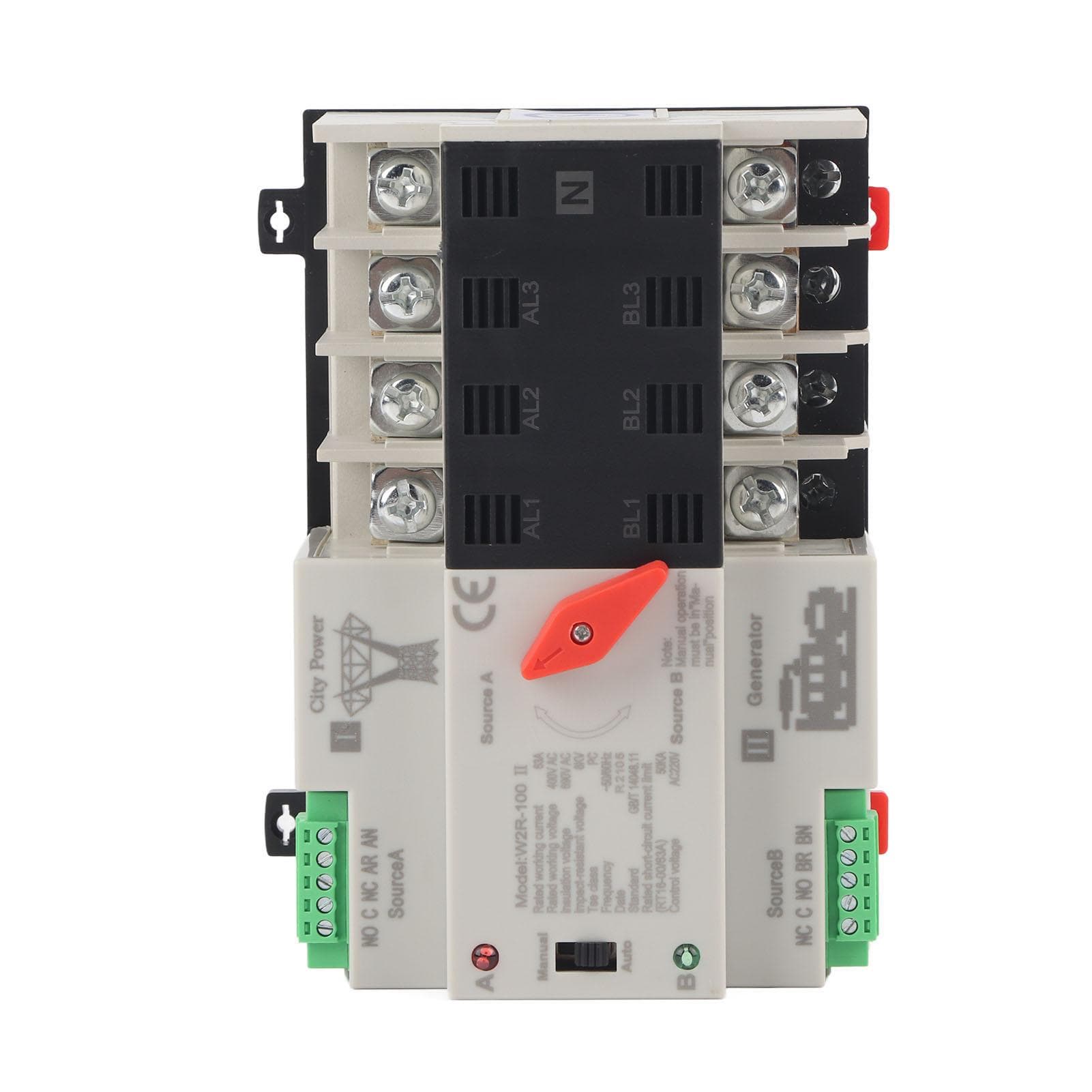

W2R?100 Dual Power Supply Automatic Transfer Switch 4P 63A Power Transfer Switch

About this item

• Feature: 1. Widely used in various places where continuous power failure is not allowed. 2. Designed for home railtype installations and specifically for PZ30 distribution boxes. 3. Automatic transfer switch suitable for emergency power system with AC power of 50 or 60 Hz and rated current of 400V, 60A. 4. Compact structure, reliable transmission, convenient installation and maintenance, long service life. 5. When the normal power supply is abnormal, the backup power supply will work immediately to ensure the continuity, reliability and safety of the power supply. Specification: Item Type: Dual Power Automatic Transfer Switch Model: W2R100 Rated Current Ie: 63A Insulation Voltage Ui: AC690V, 50Hz Rated Voltage Ue: AC400V, 50Hz Grade: PC Grade: Can be connected and withstood, without breaking shortcircuit current Use Category: AC33iB Pole: 4P Life: Electrical: 2000 Times; Mechanical: 5000 times Short Circuit Current At Rated Conditions: 50kA SCPD (Fuse): RT160063A Rated Impulse Withstand Voltage: 8kV Control Circuit: Rated Control Voltage Us: AC220 V, 50Hz Correct Working Conditions: 85percent Us110percent Us Auxiliary Circuit: 2 independent relays, each relay includes 2 sets of transformer contacts Contact Capacity: AC220V 50Hz Touch Time: <50ms Operation Transition Time: <50ms Return Time: <50ms Off Time: <50ms . Package List: 1 x Switch1 x User Manual Note: For TSE was instantly excited. After the transfer is complete, the internal switch will damage the coils in the control circuit.The coil can work normally under 85percent 110percent of the rated operating voltage. Too low voltage in the coil may cause the coil to heat up and burn out.Widely used in various places where continuous power failure is not allowed. Designed for home railtype installations and specifically for PZ30 distribution boxes. Automatic transfer switch suitable for emergency power system with AC power of 50 or 60 Hz and rated current of 400V, 60A. Compact structure, reliable transmission, convenient installation and maintenance, long service life. When the normal power supply is abnormal, the backup power supply will work immediately to ensure the continuity, reliability and safety of the power supply.
