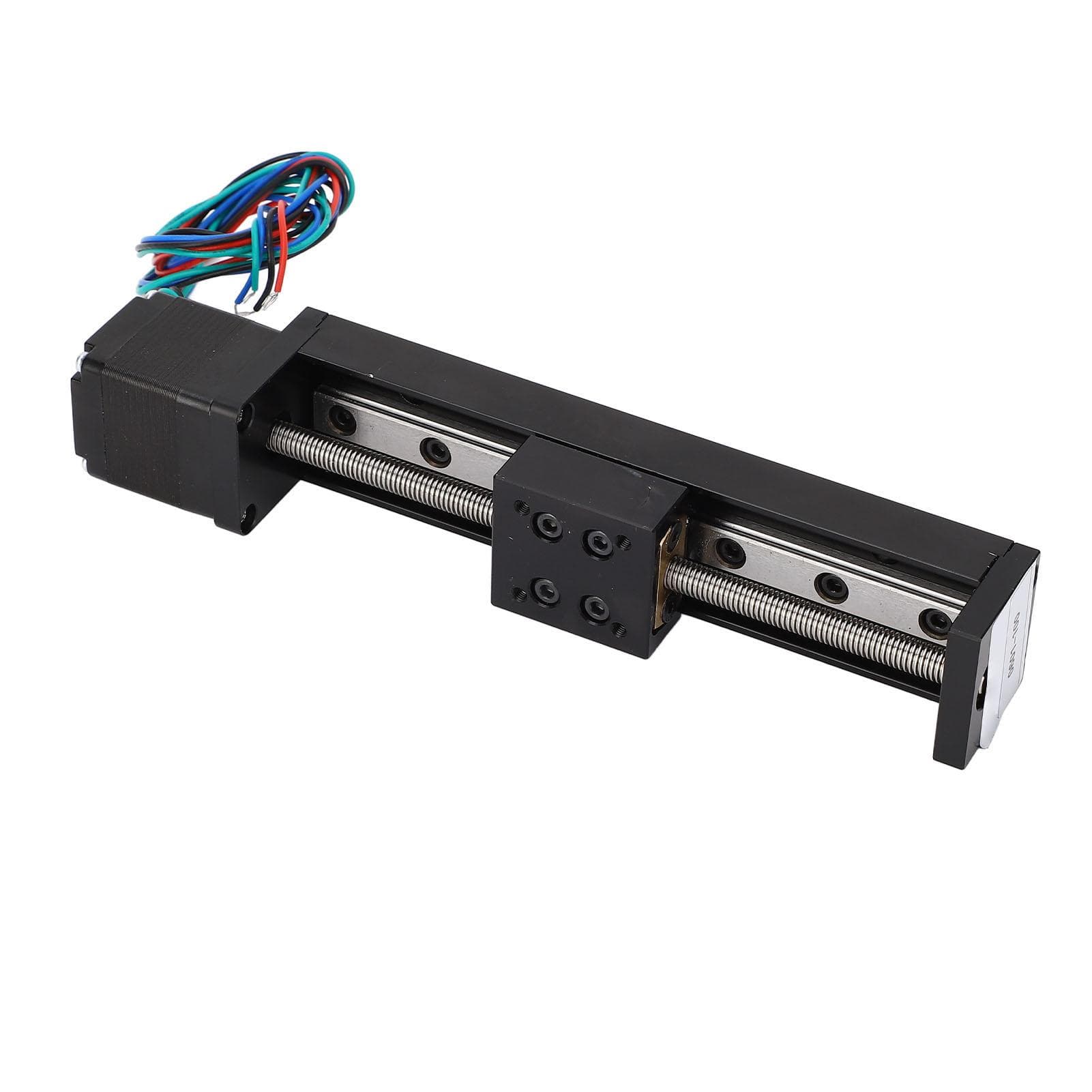

Mini Linear Rail Guide Slide Actuator 28 Stepper Motor 100mm Stroke DIY CNC Router Parts X Y Z

About this item

• Feature: 1. FLEXIBLE AND VERSATILE: The sliding table can be composed of multi axes use, such as horizontal cross, gantry, three axes, four axes, etc., very flexible and convenient 2. TECHNICAL PARAMETERS: Linear slide stage actuator effective travel for 100mm, step angle for 1.8 degrees, Diameter 6mm, helical pitch 1mm, pitch 1mm(guide screw can move 1mm a circle) 3. LOW NOISE MONORAIL: Linear slide adopt single guide design, bring stable operation, low noise, suitable for X, Y and Z axes, useful and practical 4. STABLE METAL STRUCTURE: The linear motion table is made of excellent alloy material with a thickened bottom plate to ensure stability during operation 5. ACCURATE AND EFFICIENT: The slide table has the advantages of large horizontal and vertical load, high positioning accuracy, high efficiency and good stability 6. WIDE APPLICATION: Mini linear rail guide slide actuator is widely used in DIY CNC milling machine, inspection equipment, optical measurement, fine tuning displacement, mechanical positioning and so on Specification: Item Type: Mini Linear Rail Guide Slide Actuator Material: Aluminium alloy Effective Travel(distance that slider can move on sliding table): Approx. 100mm 3.94in Screw Rod Diameter: Approx. 6mm 0.24in Helical Pitch(distance that slider move on screw rod when motor turn around): Approx. 1mm 0.04in Screw Rod Accuracy: +0.01mm Load: Horizontal: less than 5KG; Vertical: less than 1KG Positioning Accuracy: +0.1mm Holding Torsion: 6N.cm Current: 0.6A Resistance: 5.5 Ohm Inductance: 3.2MH Speed: 0120mms Step Angle: 1.8 Degrees . Package List: 1 x Mini Linear Rail Guide Slide ActuatorFLEXIBLE AND VERSATILE: The sliding table can be composed of multi axes use, such as horizontal cross, gantry, three axes, four axes, etc., very flexible and convenient TECHNICAL PARAMETERS: Linear slide stage actuator effective travel for 100mm, step angle for 1.8 degrees, Diameter 6mm, helical pitch 1mm, pitch 1mm(guide screw can move 1mm a circle) LOW NOISE MONORAIL: Linear slide adopt single guide design, bring stable operation, low noise, suitable for X, Y and Z axes, useful and practical STABLE METAL STRUCTURE: The linear motion table is made of excellent alloy material with a thickened bottom plate to ensure stability during operation ACCURATE AND EFFICIENT: The slide table has the advantages of large horizontal and vertical load, high positioning accuracy, high efficiency and good stability
