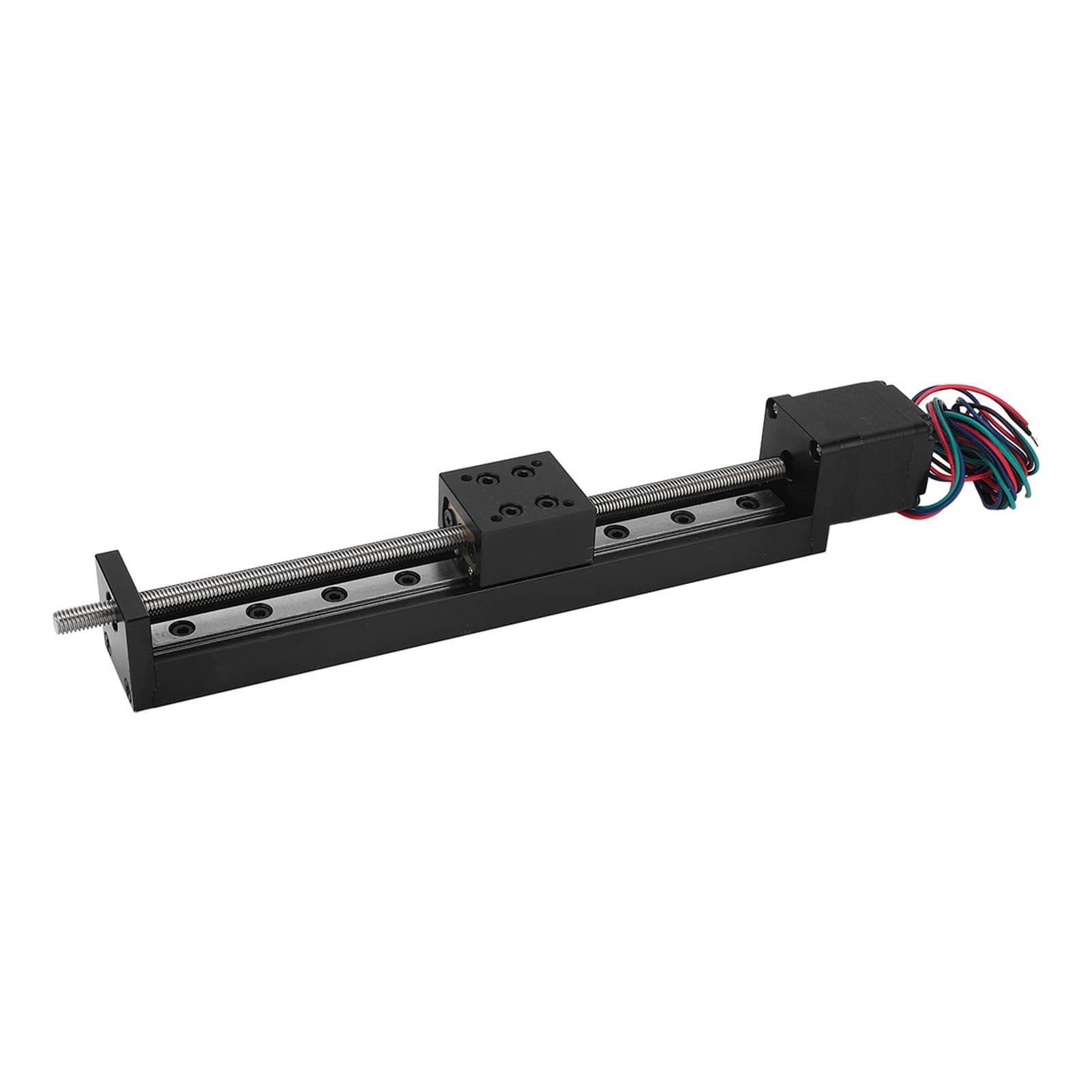

150mm Stroke Linear Slide Table Alloy Mini High Accuracy T Shape Screw Single Rail Linear Motion

About this item

• Feature: 1. PARAMETERS: Linear slide table has an effective stroke 150mm, step angle 1.8 degrees, Diameter 6mm, 1mm, pitch 1mm (one turn of the guide screw can move 1mm) 2. SINGLE RAIL: The linear stage table adopts a single rail design, which is stable in operation and low in noise, suitable for the X, Y, and Z axes. 3. METAL STRUCTURE: The linear motion stage is made of premium alloy, with a thickened bottom plate to ensure stability during operation. 4. PROFESSIONAL PERFORMANCE: This linear sliding table has the advantages of large horizontal and vertical loads, high positioning accuracy, high efficiency, and good stability. 5. APPLICATION: Widely used in DIY CNC milling machines, detection equipment, optical measurement, fine adjustment of displacement, mechanical positioning, etc. Specification: Item Type: Linear Slide Table Material: Alloy Effective Stroke: Approx. 150mm 5.91in Load: Horizontal less than or equal to Approx. 5kg 11 lb; Vertical less than or equal to Approx. 1kg 2.2 lb Positioning Accuracy: + 0.1MM Holding Torsion: 6N. cm Current: 0.6A Resistance: 5.5 Ohm Inductance: 3.2MH Speed: 0 to 120mms Step Angle: 1.8 degrees Screw Rod: 2 Diameter: Approx. 6mm 0.24in : Approx. 1mm 0.04in Pitch: Approx. 1mm 0.04in(the guide screw can move 1mm in one turn) . Package List: 1 x Linear Slide TablePARAMETERS: Linear slide table has an effective stroke 150mm, step angle 1.8 degrees, Diameter 6mm, 1mm, pitch 1mm (one turn of the guide screw can move 1mm) SINGLE RAIL: The linear stage table adopts a single rail design, which is stable in operation and low in noise, suitable for the X, Y, and Z axes. METAL STRUCTURE: The linear motion stage is made of premium alloy, with a thickened bottom plate to ensure stability during operation. PROFESSIONAL PERFORMANCE: This linear sliding table has the advantages of large horizontal and vertical loads, high positioning accuracy, high efficiency, and good stability. APPLICATION: Widely used in DIY CNC milling machines, detection equipment, optical measurement, fine adjustment of displacement, mechanical positioning, etc.
