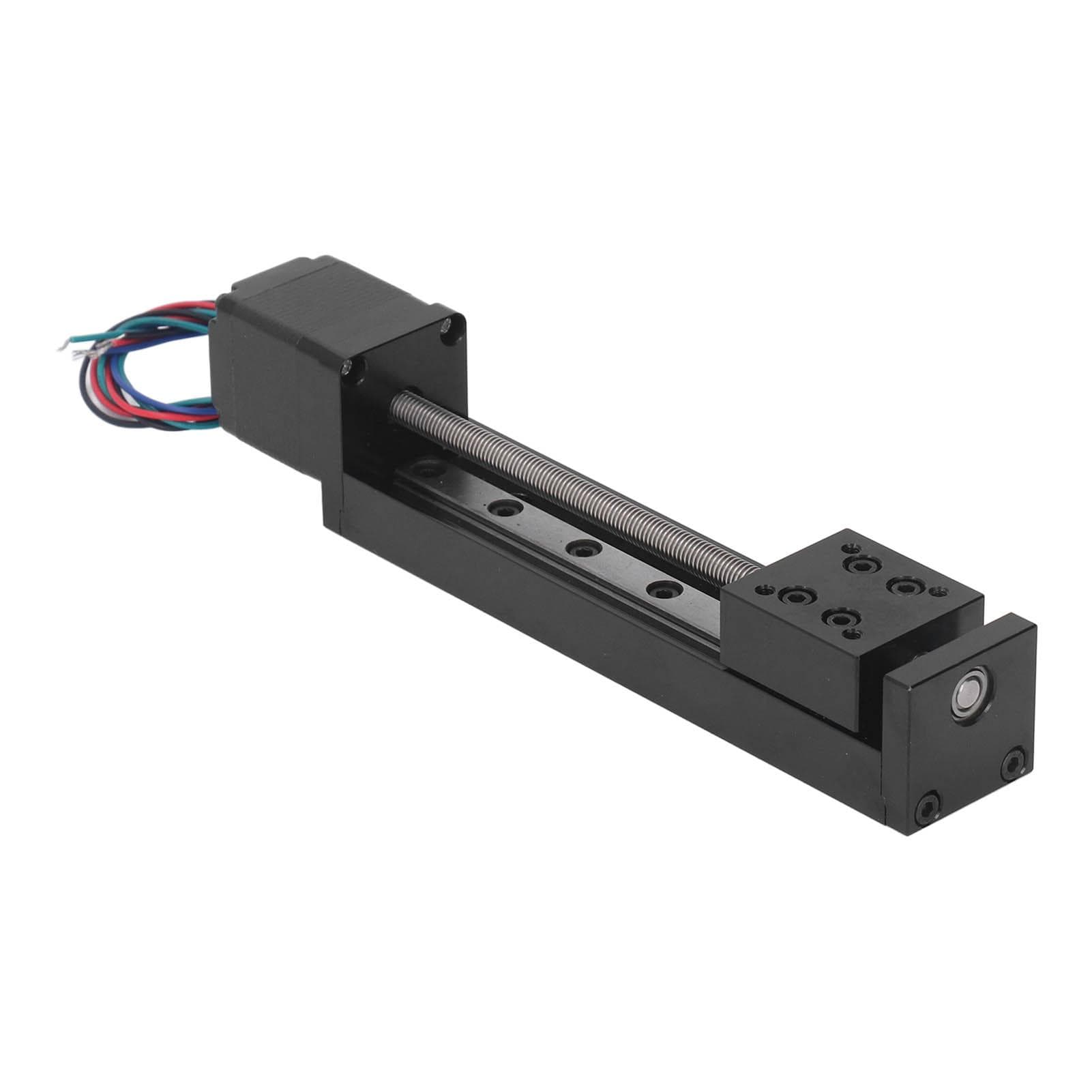

100mm Stroke Slide Table 28 Stepper Motor High Accuracy Single Rail Linear Motion Stage X Y Z Axes

About this item

• Feature: 1. PARAMETERS: Effective stroke is 100mm, 1.8 degree step angle, Diameter is 6mm, is 1mm, pitch is 1mm (one turn of screw can move 1mm). 2. SINGLE RAIL: The linear slide table is designed with single guide rail, has stable operation with low noise, suitable for the X, Y, and Z axes. 3. METAL STRUCTURE: The linear motion stage is made of excellent alloy, and the thickened plate at the bottom ensures stability during operation. 4. ADVANTAGES: This slide stage has the advantages of high horizontal and vertical load, high location accuracy, high efficiency, and good stability. 5. APPLICATION: Widely used in DIY CNC router, detection equipment, optical measurement, fine adjustment and displacement, mechanical locating, etc. Specification: Item Type: Linear Slide Table Material: Alloy Effective Stroke: Approx. 100mm 3.9in Load: Horizontal less than 5KG, Vertical less than 1KG Location Accuracy: +0.1MM Holding Torsion: 6N.cm Current: 0.6A Resistance: 5.5 Ohm Inductance: 3.2MH Speed: 0120mms Step Angle: 1.8 degrees . Package List: 1 x Linear Slide TablePARAMETERS: Effective stroke is 100mm, 1.8 degree step angle, Diameter is 6mm, is 1mm, pitch is 1mm (one turn of screw can move 1mm). SINGLE RAIL: The linear slide table is designed with single guide rail, has stable operation with low noise, suitable for the X, Y, and Z axes. METAL STRUCTURE: The linear motion stage is made of excellent alloy, and the thickened plate at the bottom ensures stability during operation. ADVANTAGES: This slide stage has the advantages of high horizontal and vertical load, high location accuracy, high efficiency, and good stability. APPLICATION: Widely used in DIY CNC router, detection equipment, optical measurement, fine adjustment and displacement, mechanical locating, etc.
